SM2134

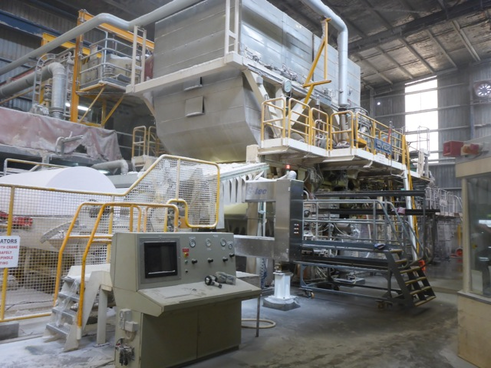

Over-Meccanica Twin Wire Yankee Tissue Machine with capacity of 50 tonne/day and design speed of 1,200 metres/minute, manufactured in 1990, installed in 1991, shut down at original location in 1993.  Refurbished, relocated and commissioned in December 2003.  The machine design includes a twin wire forming section, 3,600mm diameter Yankee dryer and gas fired hood, and Pope reeler.


Stock approach system

Fan Pump (Scan Pump)

Stainless steel pipe from fan pump to Machine screen

Machine screen (ST Macchine)

Stainless steel pipe from machine screen to paper machine head box


Paper machine

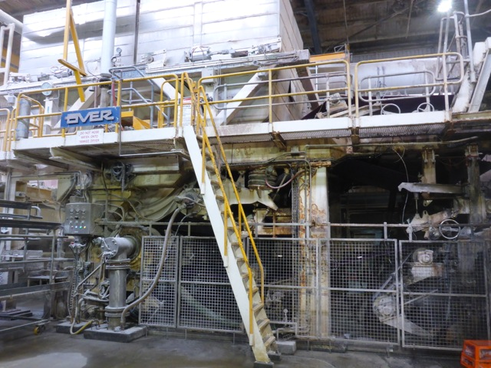

Paper machine (OVER Meccanica) ‘C’ wrap twin wire former

Head box

Forming section

Felt run

Stainless steel felt stretcher (new in 2012) (Weingrill)

Press section

Forming roll, bind drilled press roll, suction press roll mechanical drive including gearboxes and universal shafts

Complete machine framework


Hood drying system

High velocity Brunnschweiler duo system natural gas fired made in two (2) retractable sections 3.6m diameter x 3.12m deckle complete with process air system and insulated ductwork.

Burner trains (2), combustion fans (2), combustion chambers (2), recirculation fans (2), ductwork, flexible joints, heat exchanger and exhaust fan.


Pope reel

Stainless steel tail feed chute

Able to produce jumbo reels up to 2,500mm diameter

5 x expanding shafts 204mm ID (Svecom)

Expanding shaft puller with scissor table and electric winch

Jumbo roll lifting beam x 2


Electrical

Fan pump motor and Reliance DC drive


Spare Parts

Machine screen basket x 1

Forming roll complete x 1

Blind-drilled press roll complete x 1

Suction press roll complete x 1

Set of suction press roll dummy ends (used during roll service)

Felt roll (480mm) x 1

Wire roll (390mm) x 1

Universal drive shafts (forming roll, blind drilled press roll, suction press roll)

Expanding shafts 204mm ID (Svecom) parts x 1

Hood duct fabric flexible joint x 1

Out of service machine rolls x 3

Fan pump motor (400kW) x 1

Forming fabric air motor x 1

Tension fabric air motor x 1

Hood air cylinders x 2

Felt guide air rides x 2

Fabric stretch gearbox x 1

Blind drilled roll water cooling joint complete x 1

Machine screen seals x 2


Other

Surplus new paper machine clothing (TBC)

Old creping doctor x 1

Thermo compressor x 1

Condensate separator tank x 1

Condensate pump x 1

Drawings, machine manuals and documentation


Exclusions

Yankee cylinder, bearings and gearbox

S-Tec QCS

Honeywell DCS and electrical controls

Paper machine drive motors and starters

Yankee cylinder doctors (cutting, creping and cleaning)

Under machine pulper

Vacuum system

Compressed air system

Paper machine showers

Yankee spray bars and Chemical system

Everything not specifically listed
