ELETTRIC 80 Dragon Tissue Robotic Palletizing Lines  x 3

one double and two single

For further information please complete and sign the  Confidentiality Agreement (click here) and return to

Design Data

Operational Conditions

  • Minimum Temperature:      5° C (41° F)
  • Maximum Temperature:    40° C (104° F)
  • Humidity @ 40° C :           80%

Power Requirements

  • Main Power:                    48013/60
  • Controls:                         24 VDC
  • Air supply:                       5-6 bar (72-145 PSI)


  • Hours of Operation : 3 shifts, 365 days per year
  • Height of Production Lines (mm): Assumed 1100mm to Match E80 Palletizing Island
  • Carton Orientation: Narrow Side Leading in Palletizing Island
  • See MDF U100005_03 (Single Dragon).xls
  • Palletizing Configurations: Per RFQ (Some patterns may need to change)
  • Pallet Orientation; Narrow side Leading in Palletizing Island
  • Full Pallet Maximum Weight 1200 lbs
  • Full Pallet Minimum Height 1224.63mm
  • Full Pallet Maximum Height 2654.60mm
  • Pallet Type: 40" wide x 48" long CHEP


Line 5A palletizer front side

Palletizer front side

E80 Layout 1

Double Dragon Layout

Line 5A palletizer backside of pallet loading

Palletizer backside of pallet loading

Line 5A palletizer elec cabinets

Palletizer elec cabinets

Line 5A palletizer pallet loading

Palletizer pallet loading

Line 5A palletizer Sheet infeed conveyor

Palletizer Sheet infeed conveyor

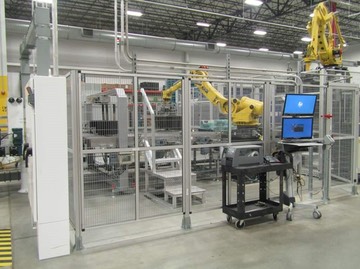

Line 5A palletizer smaller robot

Palletizer smaller robot

E80 Layout 2

Single Dragon Layout
