SM0882 - Tissue Machine Voith 2,600MM, 1984 (rebuilt 1996),17 to 45 g/m2, 400m/min

Introduction

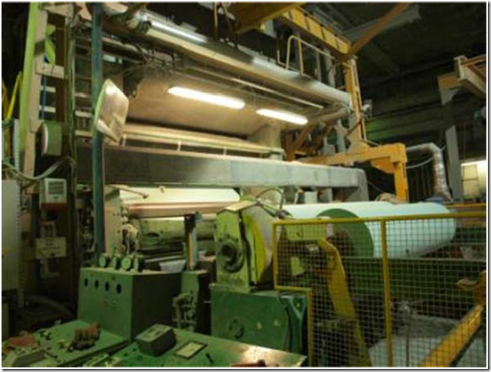

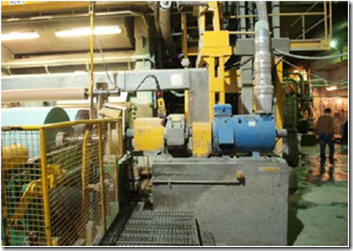

Tissue machine is a used machine, which operated in a paper mill of METSA Tissue, Krapkowice, Poland. It was installed in the mill in 1984 and was running until end of April 2012. The company then stopped the machine in order to shift the capacity to a brand new machine installed at their premises.

Machine was subsequently bought by our company and carefully dismantled by our team. It is now dry stored in Czech Republic. As support for relocation we can offer the following:

samples of paper produced on the machine

all available documentation both in electronic or paper format including Side drawing of the machine

Sectional Foundation drawings with necessary floor loads

Yankee cylinder passport, metallization report and last grinding report

Electrical documentation

Some production reports

A lot of other documentation

proper matchmarking on every piece of equipment in a master list format in English language, including sectional and complex photografic documentation

SGS report certifying completeness of the equipment and runability for 10 years or more Services that can be provided with the sale of machine:

Transport related

‐dismantling (has already been performed)

‐loading into containers / on truck

‐transportation into buyers destination

‐installation supervision at buyers premises

‐machine startup at buyers premises



Technical

‐overhaul of machine parts

‐engineering services

‐design of suitable stock preparation line

Financing (at sellers discretion)

‐deffered payment models supported by Czech export bank (for example L/C with usance period 0,5‐2 years)

‐joint venture structures, in case favorable business case

‐elaboration of business case quantifying the investment viability (Net present value and payback calculation)

Equipment Location: near to Sumperk, Czech Republic (3hrs from Prague airport)

Oversize items located at original mill siteManufacturer:    Voith

Year of Manufacture:    1984 (all parts except of yankee)

Major rebuilts                                      1996:new headbox by dr. Hogenkamp (improved formation quality) + pressure screen Ahlstrorn,

                                                             LD Cleaners Ahlstrom + Wire section

Max speed:                                          400 m/min

Paper web width:                                 2620 mm

Wire dimensions:                                 2,9m x 16,4m (width/length)

Felt dimensions:                                  2,95m x 31m

Grammage:                                         from 17 to 45 g/m2

Output:                                                28 tons/day (25 g/m2) to 43 tons/day (40 g/m2) - average 12.000 tons/a

Last production program:                    bathroom and kitchen towels tissue from recycled paper

Electricity:                                           400 V, 50 Hz

DC drive                                              for main machine motors

Yankee cylinder:                                  in 1978 from VOITH

                                                            diameter 3600 mm

                                                            metal sprayed in 2003

                                                            max working pressure: 4,5 bars

                                                            wall thickness cca 42mm

Utility consumption:                             PM5 electricity 0,8-1,1 MWh/t (without pulper) Water 15m3/t Heat (Yankee+hood] 1,9 MWh/t

PAPER GRADES PRODUCED

List of equipment:

Headbox Hogenkamp

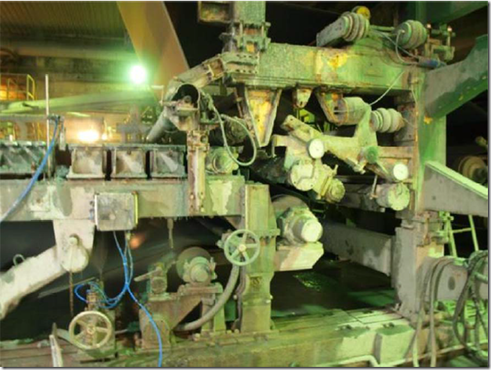

Complete wire part

Complete press section

Yankee cylinder from Voith, dry and wet hood with ventilators (both wet and dry hoods feeded by steam)

Measuring frame Measurex

Pope reel

2-stage Fine screening with pressure screens Ahlstrom Moduscreen H2 + Moduscreen FOE

Low density cleaners Ahlstrom

Refiner Beloit Fampa ST-500

Deflaker Comer

Steel-made Machine chest with two agitators (chest was left at the mill)

Under machine pulper

3x Vacuum pumps (Ix Nash 3001, 2x Fampa)

Fan Pump Ahlstrom ZPP1-250 (267 l/s, 1-1 = 18) with 165 kW ABB motor

Pumps for machine and approach flow - see separate attachment

Spare parts and spare rolls -see separate attachment

Motors to all available equipment - see separate attachment

Piping between the machines, as long as dismantling was economically feasible

Foundation plates

Technical documentation as far as available

Waste Paper Stock Preparation Line 30 - 40 T/day

Typified stock preparation line for waste paper (capacity max. 30 - 40 T/day) is a subject of the quotation. This is a line ideal for production of tissue paper based on the white cuttings waste paper.

Offer is elaborated in ideal version. Of course our company is able to elaborate offer for adjustment of this or existing preparation line according to the customer's wishes and needs.

Below you will find description of individual machines for stock preparation. Numbering corresponds to the position in flowsheet. Machines below will be delivered in condition after complete overhaul, ready for installation.

1.  HORIZONTAL CHAIN CONVEYOR

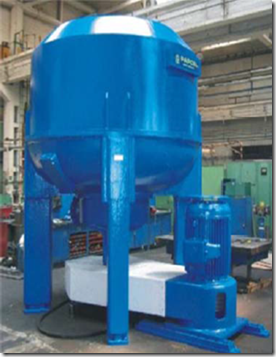

2.  VERTICAL PULPER VV25 Manufacturer:

periodical operation 12-401/24 h, continuous operation 15-75 t/24h periodical operation 3 -10 % b.d., continuous operation 2-4,5% b.d. 3,8%

vertical pulpers are developed for continuous and periodic pulping of fibrous materials as there are chemical pulp, ground wood, waste paper, inclusive of papers with increased wet strength, machine

broke, mineral wool, etc. The pulper is composed of welded vat with top steel adapter (stainless-steel), functional elements (stainless) formed of rotor, stator separating sieve and setting rim, bearing housing (gray cast iron) plugged with packing and front gearbox which is joined to electromotor and to rotor shaft (by elastic coupling). The pulper stands on steel legs on concrete bed. All parts of the machine that are in contact with the pulped stock are made of stainless steel.

The principle of the machine working: the pulper W can work either periodically or continuously. The source of kinetic energy is rotor of new conception, which is rotating inside the paddle wheel collar equipped with breaking blades. Under the rotor is placed stator with holes or slots, which serves to calibration and discharging of pulped stock.

The rotation in the tub causes intensive turbulence of the stock. The rectifying blades on the inner surface of the pulper vat distribute the working area on 4 individual zones of flow. The flowing stock is returned by the blades from the vat periphery to the centre, i.e. in the area of active suction effect of the rotor.

This configuration ensures the intensive flow of the stock in all pulper vat volume even by higher operating consistency so that the inserted material is practically immediately wet. The process of pulping is most intensive in proximate distance of the rotor where is the highest specific density and energy. The bigger not pulped parts of the stock are torn to small pieces through the impact of rotor and breaking blades. The processing of smaller parts proceeds between rotor and stator.

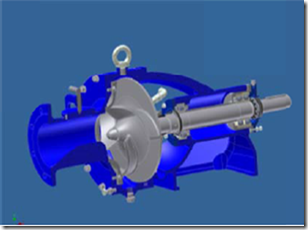

3.  STOCK PUMP 100-NRA-350

Flow:    12001/min

Consistency:    3,8%

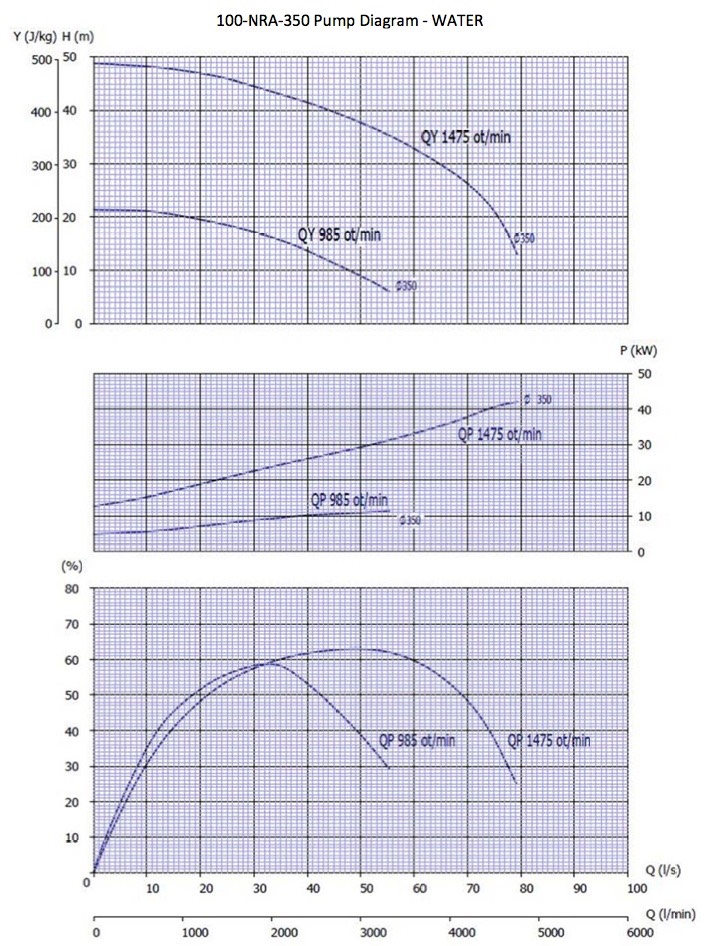

For more information about stock pump see diagrams in appendix

4.  HIGH DENSITY CLEANER VS-20-M Throughput:    800-1400 l/

Centrifugal cleaners working with a free whirl and separation of impurities into a collecting box, being permanently rinsed with water, modification A or M (periodical discharge of impurities automatically or manually), respectively with continuous discharge of separated impurities in case of modification 0 (opened type).

VS cleaners enable efficient and economic separation of specifically heavy impurities also from very coarsely pulped paper stocks. They are used especially as a primary cleaniing stage protecting following machinery against contingent damage caused by hard impurities. These cleaners work independently or in one-stage or multistage working stations according to actual on-site operating conditions. They differ from each other in type, size and capacity.

These cleaners are used particularly for

• protection of all following line equipment against penetration of hard and abrasive particles,

• efficient separation of specifically heavy impurities in waste paper processing lines and wood grinding mills,

• installation in multistage cleaning stations or they can be installed separately.

Advantages

• low pressure loss connected with low energy demand

• efficient operation also with coarsely pulped stocks with high content of impurities

• high reliability in service and resistance against fouling

• simple operation and maintenance

5.  CHEST WITH AGITATOR 30M3

6.  STOCK PUMP 100-NRA-350:

7.  LEVEL TANK

COARSE SCREENING

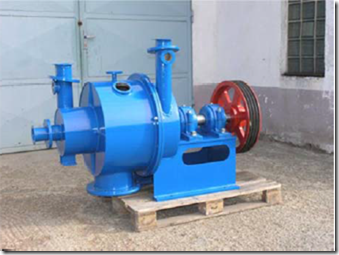

8.  TURBO5EPARATORVSV-20

The washing separators of VSV series belong to a family of pressure screens and separators with increased pulping effects. Based on technology these washing separators are designed for final screening of rejects from primary pressure screens and separators (STU, VDT) in waste paper processing lines. For low capacity lines (up to 50 - 60 tpd) they can provide screening quite separately in one screening stage only. The VSV separators run in programmable periodical cycles according to actual operating conditions. Their function is based on utilisation of hydrodynamic and mechanic effects of properly vaned rotors inbuilt both on inlet and outlet sides of a sorting screen. These rotors provide sufficient flow rates even while separating thick stocks with heavy dirt originating from raw paper, rag and wood pulp. This machine is allowed to be used only for purposes as stated here.

Technical and Technological Advantages

• all parts coming in contact with the stock are made of stainless steel,

• design simplicity and high efficiency in service,

• slotted and bored screens with bores 0 1,8; 2,2; 2,5  improved stock turbulence and flow rates providing higher deflaking effects,

• high reliability in service and resistance against fouling of sorting screens,

• possibility to run at high consistency of the stock to be processed up to 4,5 %,

• low energy consumption and high efficiency even with coarsely pulped stocks,

• easy adaptation to actual technological conditions,

* very pure rejects, in fact without loss of fibres.

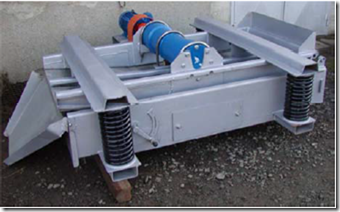

9.  VIBRATING SCREEN VP-19

10.CHEST WITH AGITATOR

11. STOCK PUMP 100-NRA-350 Flow:

12. LEVELTANK

13. REFINER

Refiner ST500 (supplied with paper machine) can be used

14.CHEST WITH AGITATOR

15.STOCK PUMP 100-NRA-350: 8001/min 3,0%
