SM2729

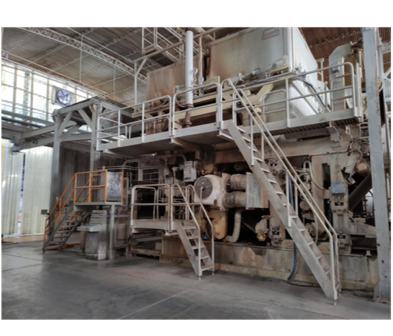

5 v2,760 mm CRESCENT FORMER TISSUE MACHINE - TOSCHI HYPER MODULO

NB:  to be sold as sections - equiries invited

IMG 3905

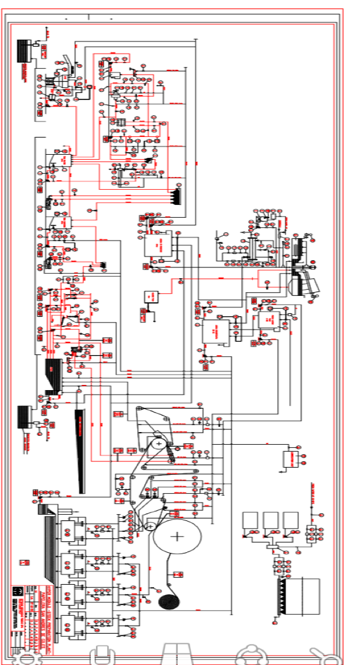

I) Process Description:

The cellulose and waste paper bales are loaded to a high density pulper through a steel- plate conveyor. The pulp is dissolved by a rotor, which is prepared to work with 12-15% of consistency, this cycle is automatic. Then the stock is discharged to a coarse selector where the high dimension contaminants are removed, after this filtering unit, the pulp is pumped toward a 60 m3 stainless steel pulper tank. The stock is pumped through a high density cleaner in order to remove the high density contaminant, and then the system has the option to enable another screening module composed by superscreen, vortiscreen and vibrating screen. After this screening stage, the pulp is pumped to a level tank in order to feed to a deflaker unit, and then the stock goes to a 30 m3 stainless steel machine tank. From this chest, the pulp is pumped to a level machine tank passing through a refiner unit. From this point the stock falls to a multiple stage low density cleaner, this flow is controlled by an automatic basis weight valve. The accepted stock is pumped by the fan pump to the machine headbox passing through a machine fiber pressure selector.

The stock flow is distributed by the headbox on the wire and the felt forming the paper sheet, and then it is transported by the felt to be dried. The dry system is composed by vacuum press roll, hot air hood system and a dryer cylinder. The sheet is released from the yankee cylinder by a creeping doctor blade and then it is winded by the pope reel system.

In order to save the fresh water consumption the paper mill has a white water treatment system composed by flotation system.

The yankee dryer require steam to dry the paper and a condensate system to remove the condensate inside the yankee. On the other hand the yankee hood system needs fans and burners to produce and circulate the hot air.

This browser cannot play the embedded video file.


The process is fully controlled by a DCS system from a control room


II) Machine Specification and Components:

  • Continuous crescent former paper machine
  • Year: 1999 – Startup: 2000
  • New Yankee installed in 2007, steel construction, 2500mm diameter
  • Nominal paper width: 2760mm
  • Max diameter of parent rolls: 2500mm
  • Range of grams of paper from 13.5 g/m2 to 40 g/m2
  • Operating speed: 900 mts/min (Yankee)
  • Design Speed: up to 1200 mts/min (Yankee)
  • Annual production: 18.000 tons per year CPI
  • Forming roll of 1200mm diameter
  • Headbox brand ST Machine, consistency of 0,2%, electromechanics opening
  • Refiner with double disc, RDM 26”/N supplied by AGA Machine
  • Water management system by Berica, Model CF2005, diameter of the bucket 5600mm
  • Fiber selector ECT2 of conic opening from 1.8mm to 2.4mm
  • Thermocompressor Steam module by Körting
  • Filtering system of multiple stages, Superscreen (diameter of opening 2mm), Vortiscreen (diameter of opening 1.75mm) and vibrating screen
  • Fan pump brand AHLSROM (Sulzer) model ZPP 21-300
  • Vacuum generating system composed by 4 pumps NASH CL3001
  • Low consistency cleaner of three stages, brand Alfa Laval Celleco Clean Pack 700

III) Process Description (all components indicated are included)

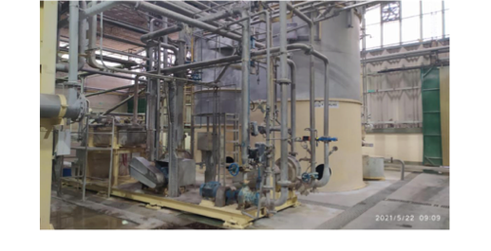

A) Dissolving system:

  • Steel-plate conveyor: Length 14400 mm, height: 3800 mm. Powered by xxx AC motor
  • High density pulper: Volume: 8 m3. Stainless steel rotor. ABB level and water flow control. Powered by 160 kw AC motor controlled by ABB driver, V belts transmission. Motor RPM : 992--- Max rotor RPM: 260

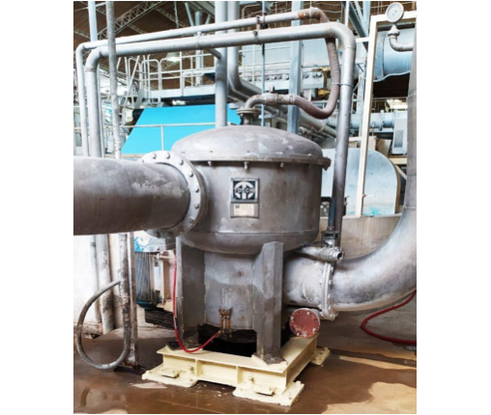

  • Stainless steel pulper coarse selector: Plate diameter : 1180 mm, hole diameter. 8 mm, rotor diameter: 1100 mm. Powered by AC motor 30 Kw – 1475 rpm
  • Discharge pump ( Pump 4): Robuschi RKC 200-3, Q= 4500 lpm. H=14 mts, powered by AC motor 30 kw, 985 rpm.
  • Pulper stainless steel tank. Volume: 60 m3. Agitator manufactured by ST Macchine, type AST 1000, powered by Ac motor 18.5 kw, 985 rpm. ABB level control.
  • High density cleaner: Manufactured by ST Macchine, model DPD 12/A-1200 lts. infeeded by Robuschi pump, model RKC 65-36, AC motor 22 kw-1465 rpm ( Pump 6)
  • Screening module: Manufactured by Toschi. cby Robuschi pump RKC 80-27(Pump 7), 11 kw- 1450 rpm AC motor. BTG Consistency transmitter, model MBT 2300.

Screening module composed of:

  • Superscreen SS1: Drilled basket and rotor filtering system, hole diameter: 2mm, open area: 15%. Basket dimension: 400 mm diameter, 400 mm length. Powered by AC motor, 30 Kw- 1475 rpm
  • Vortiscreen VS3.1 : Drilled plate and rotor filtering system, hole diameter : 2mm.Powered by AC motor, 15 Kw- 1475 rpm
  • Vibrating screen : Powered by AC motor 1.1 Kw- 930 rpm
  • Deflaker: Manufactured by Toschi, model : T1/D6. Powered by AC motor, 90 Kw- 2970 rpm
  • Stainless steel machine tank: Volume. 30 m3. Agitator manufactured by ST Macchine, type AST 800, powered by Ac motor 15 kw, 985 rpm. ABB level control.
  • Refiner feed pump: Robuschi RKC 65-36 ( Pump 14), AC motor 18,5 kw-1465 rpm.
  • AGA Macchine refiner: Diameter plate 26”. Double disc. Gap distance control by refiner main motor current control. Main motor: 250 Kw, 8 poles, AC motor.


    B) Approaching system:

  • Stainless steel level box, two stages
  • Basis weigh valve, manufactured by Fomat, model FRG. Controlled from control room.

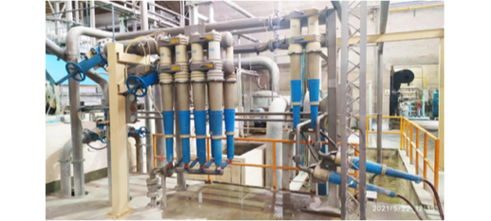

  • Cleaner Alfa laval Celleco.
  1. First stage low density: CleanPac 700 S-8. Infeed by Robuschi pump RCN 200-36, Ac motor 45 kw- 1500 rpm
  2. Second stage low density. CleanPac 700 L-2. Infeed by Robuschi pump RCN 80-36/SB, Ac motor 18,5 kw- 1500 rpm
  3. Single Fiber mizer

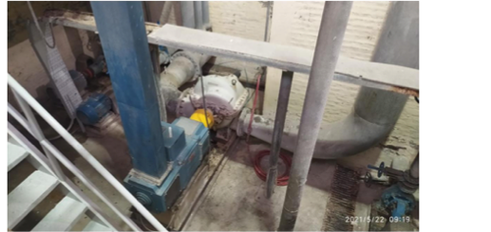

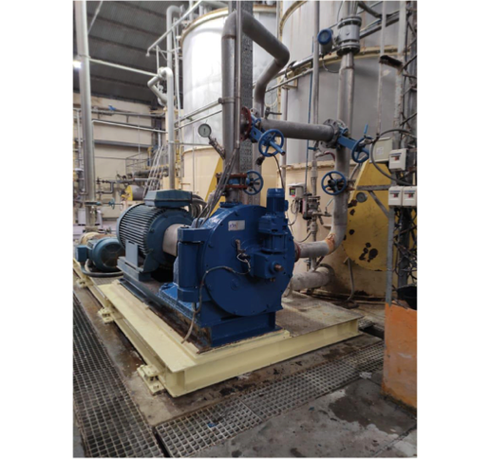

  • Fan pump (Pump 19): Manufactured by AHLSROM (Sulzer) model ZPP 21-300. Q=32000 lts/min, H=36mts. Operation consistency: 0.2%. Powered by DC motor ABB 260 KW, 1550 rpm controlled by driver

  • Machine pressure screen: Manufactured by Toschi, model ECT2. Drilled basked, dimension: 595 mm diameter, height 1096 mm, width: 4mm, conical hole: 1.8 mm (internal diameter). Powered by AC motor 30 Kw, 900 rpm.

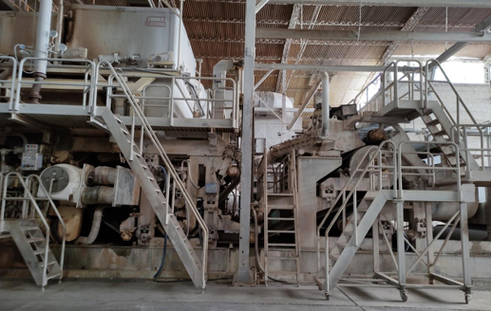

      C) Paper machine: 1- Forming section

  • Headbox: Manufactured by ST Macchine. Stainless steel Pressure headbox. Width: 2850 mm. Automatic lip opening range: 8 – 25 mm. Stock consistency 0,17 to 0,35 %
  • Wire forming roll: Diameter: 1200 mm, width: 3260 mm. Powered by ABB DC motor 104 kw, 1710 rpm, controlled by ABB DCS500 driver technology
  • Four roll wire loop : One breast roll, diameter: 340 mm and 3 Guide rolls, Diameter :290 mm
  • Shower system: High pressure oscillating shower, nozzle diameter 1 mm, nozzles amount. 20 units controlled by Fomat.
  • Wire fan spray shower, nozzles amount. 19 units Wire roll fan spray shower, nozzles amount. 15 units

2- Press section

  • Suction press roll: Manufactured by Toschi, diameter: 770 mm. Widht: 3200 mm. Suction width: 2780mm, hole diameter: 3.75 mm. Powered by ABB DC motor 104 kw, 1710 rpm, controlled by ABB DCS500 driver technology
  • Seven felt roll loop: Seven guide felt roll, diameter 290 mm
  • Shower system: High pressure oscillating shower, nozzle diameter 1 mm, nozzles amount. 21 units controlled by Fomat.
  • Felt fan spray shower, nozzles amount. 19 units Felt fan spray shower, nozzles amount. 19 units Three felt roll fan spray shower
  • Felt edge shower
  • Suction box: Two suction box for felt cleaning, wide slot : 18.5 mm

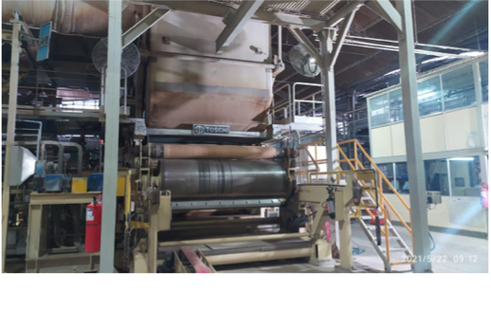

3-Drying & Creeping Section:

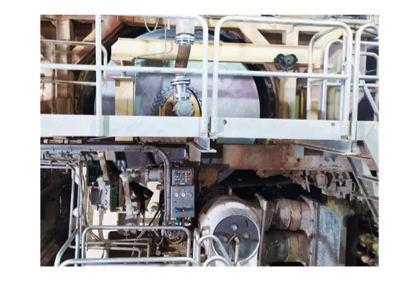

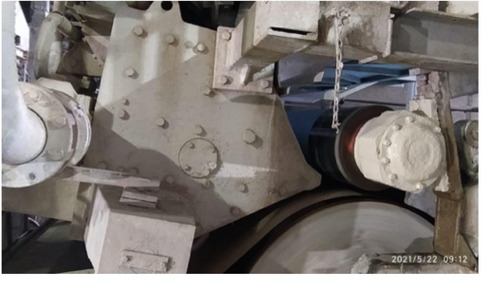

Steel yankee dryer: Manufactured by Toscotec, production year: 2007. Yankee diameter: 2500 mm, face length: 3110 mm. Paper width on yankee dryer: 2850 mm. Total shell thickness: 40mm, nominal Thickness: 14mm, depth inner groove: 25 mm, metallization thickness: 1 mm, number of grooves: 94.

Maximum working pressure: 10 bar Maximum temperature design: 184 C. Capacity: 14.000 lts. Design speed: 1200 m/min. Metal coating: Varihard-HE.

Powered by DC motor ABB 260 KW, 1550 rpm controlled by driver DCS 500 ABB.

Yankee hood air system: Machine type: Duo system, manufactured by AeroThermic –Fomat group. Last upgrade: 2006. Fluid max inside: 650 C (wet end) and 450 C (drive end)

Composed of:

  • Recirculating air fan wet (V1): Manufactured by CBI, model MB/100. Powered by Ac motor 110 kw, 1500 rpm controlled by GE driver.
  • Burner and combustion chamber wet (G1): Manufactured by Icotec, model BVA 2000. Power Max/Min: 2350/120 Kw. Fuel: natural gas
  • Combustion air fan for G1 burner (V4): Manufactured by Ferrari, type: VCM 631 N12. . Powered by Ac motor 30 kw, 3000 rpm
  • Recirculating air fan wet (V2): Manufactured by Ferrari, model 1121N12S. Powered by Ac motor 110 kw, 1500 rom controlled by GE driver.
  • Burner and combustion chamber wet (G2): Manufactured by Icotec, model BVA 1250.
  • Doctoring system:
  • Power: 1500Kw. Fuel: natural gas
  • Combustion air fan for G2 burner (V5): Manufactured by Ferrari, type: FG561N12A. Powered by Ac motor 15 kw, 2930 rpm
  • Exhaust air fan (V3): Manufactured by Ferrari, type FQ711N12. Powered by Ac motor 30kw, 1500 rpm
  • Heat recovery system (R1): Air to air exchanger, manufactured by AeroThermic, total surface:187 m2
  • Wet end hood: Manufactured by AeroThermic, sweep angle: 135 degrees, wet blowing velocity: 140 m/seg, blowing temperature: 650oC. Moisture profile control done by 12 damper, manually controlled.
  • Dry end hood: Manufactured by AeroThermic, sweep angle: 110 degrees, dry blowing velocity: 100 m/seg , blowing temperature: 450oC
  • Cut off blade: Manufactured by Oradoc, blade holder replaced in 2015, stainless steel blade holder, model: ORADOC LBH PLUS full oscillating
  • Creeping blade: Manufactured by Oradoc, blade holder replaced in 2015, stainless steel blade holder, model : ORACREPE/VARICREPE full oscillating
  • Cleaning blade: : Manufactured by Oradoc.

4-Reel section: System composed by:

  • Primary arms, driven for AC motor.
  • Pneumatic secondary arm: Manual control pressure
  • Reel drum: Diameter. 1000 mm, face length: 2940 mm. Crepe control from: local panel and controlroom
  • Max reel diameter: 2200 mm. Powered by DC motor ABB 37 KW, 1485 rpm controlled by driver DCS 500 ABB.
  • Expansible core shaft: manufactured by Svecom, core diameter: 12 “, amount : 5 pieces.
  • Shaft puller


D) MACHINE AUXILIARY FACILITIES:

Water treatment system

  • Fresh water tank : Stainless steel tank, volume 6m3. ABB level control
  • Clarified water tank: Stainless steel tank, volume 30m3. ABB level control
  • White water tank: Stainless steel tank, volume 6m3. ABB level control
  • Flotation plant: Manufactured by Berica Engineering, model CF2005. Diameter. 5600 mm, Q max 156m3/h
  • Infeed pump: Robuschi RCN135-32 .Q=3200 lts/min H=14 mts, powered by Ac motor :15 kw- 1445 rpm
  • Pressurizer feed pump: RCN65-27 .Q=700 lts/min H=65 mts, powered by Ac motor: 18.5kw- 2920 rpmVacuum system



1. Vacuum pump: four vacuum pumps manufactured by Nash, model CL3001

Powered by AC motor 132 kw -1485 rpm

  • General manifold for pumps exchanging without stopping.
  • Sealing fresh water tank: stainless steel tank, volume: 6 m3
  • Uhle box vacuum separator
  • Press suction roll separator

6. Exhaust air separator

Steam and condesate system:

  • Condesate removal system: Four steam collector located inside the yankee, 50 stainless steel soda straw each one.

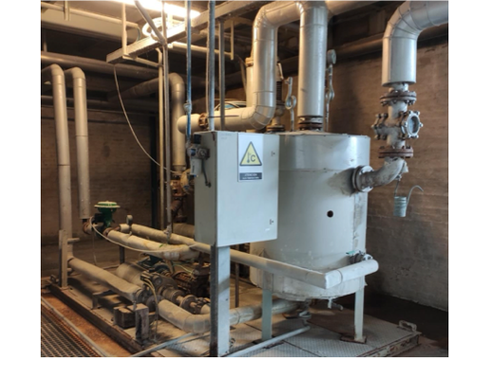

  • Condensate tank: volume 500 lts. Level control
  • High pressure condensate pump: KSB HTN40/9. Powered by AC motor . 7.5 kw- 3000 rpm
  • Pressure system loop: rousemont pressure meter, korting thermocompresor and help valve.
  • Blow through spread loop control: composed by Rousemont Vortex flow meter and proportional relief valve.

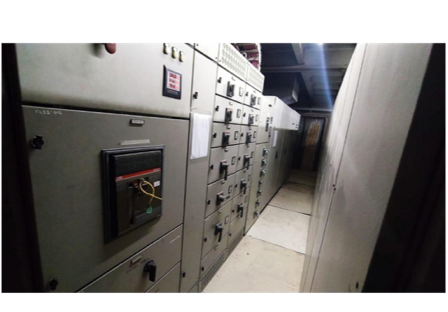

Power and control system

1) Power system: Power cabinet manufactured by SEEI SPA

a) Main power cabinet : ABB Main switch and sectional swtiches.

b) DCS 500 ABB cabinet: Fan pump,forming roll, suction press roll, yankee dryer and pope reel

c) AC cabinet motor: General process pumps, process auxiliaries equipment and AC pulper driver d) AC cabinet hood system: V1 y V2 fan drivers.

2) Control system:

a) Main PLC: Siemens CPU 416-2DP.

b) Pulper ET200 station and HMI for operator interface

c) Screening ET200 station and HMI for operator interface.

d) Control room ET200 station and HMI for operator interface.

e) Flotation plant ET200 station.

f) Power control room ET200 station.

g) PCs control room: Two Pcs dedicated to control the process via MPI. h) Hood and steam plant PLC and HMI, located in control room.

i) HP shower control.

j) Suction press roll control cabinet and pneumatic auxiliaries.


IV) SPARE PARTS (Included in the Price)

  • Complete suction press roll, ready to operate.
  • Pulper: Plate and rotor refurbished.
  • Coarse Selector: Drilled plate and rotor
  • Superscreen: Basket and rotor.
  • Vibrating screen: drilled plate.
  • Set Refiner disc.
  • Yankee rotary joint: 1 PCs- refurbished with original spare parts.
  • Wire screw jack: 2 pcs
  • Wire breast roll- refurbished.
  • Wire and felt guide roll: 3 Pcs refurbish
  • Pulley for hood fans system: V1,V2, V3, V4 and V5
  • V1 bearing housing.
  • FIP shower oscillator fomat: 2 Pcs- refurbished
  • Berica flotation unit: Helical-Bevel geared motors with variable block, manufactured by SEW
  • Pressure selector: refurbished shaft unit
  • Wire and felt positioner: JUD, model SR 694, refurbished complete unit and spare parts.
  • Refurbished DC motor: Yankee position, pope position, forming position and suction press roll
  • DCS 500 ABB driver yankee o fan pump position.
  • DCS 500 ABB driver former
  • DCS 500 ABB driver suction press roll
  • DCS 500 ABB driver pope reel
  • HMI for hood and steam system
  • PLC power supply PLC PS-407
  • Analog input 6ES7431-0HH00-0AB0
  • Digital ouput 6ES7422-1BL00-0AA0
  • Digital input 6ES7421-1BL00-0AA0
