Paper Mill 340 tpd Kraft - Test liner complete from stock preparation to rewinder

1x 2,450mm trimmed width single fourdriner paper machine, 140 tpd,

1x  2,550mm trimmed width twin fourdriner paper machine,   200 tpd,

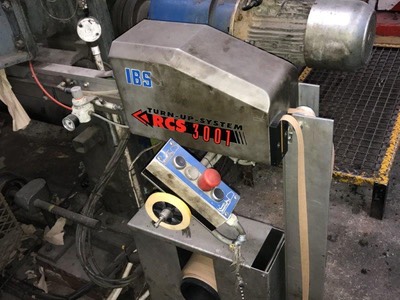

PM2

Single layer fourdrinier with Voith K-typ pressurised headbox

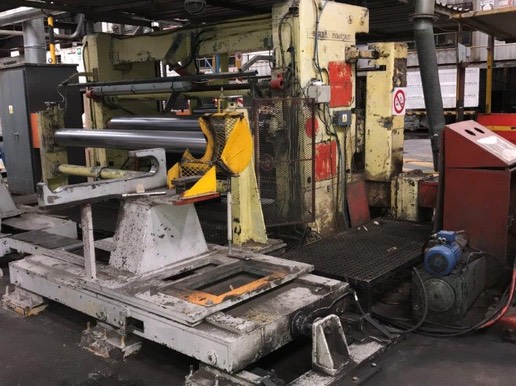

Goebel rewinder 1600 mpm unwind

Speed running max 340mom design 400mpm

Trimmed Width 2,450mm

Grammage range 60-230gsm

140 tons per day of saleable from 148 tons gross production(trim waste and reel turnup waste )

Approach is good for7 tons per hour

Single felted suction press and jumbo press good for 200kn

26 dryers 3.5 bar steam rotating syphons



PM3

PM3 Flow sheet

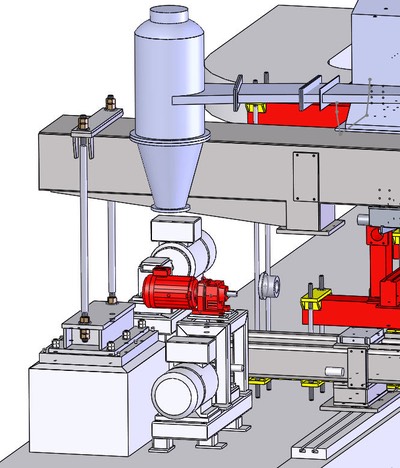

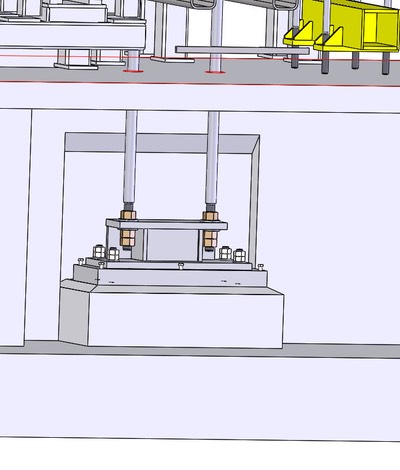

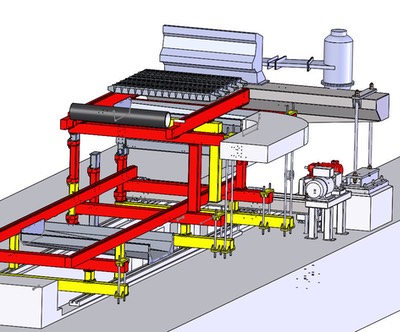

Twin Layer Fourdriners with pressurised head boxes (see below)

Trimmed Width  2,550mm

200 tons per day

Speed 600mpm design 800mpm

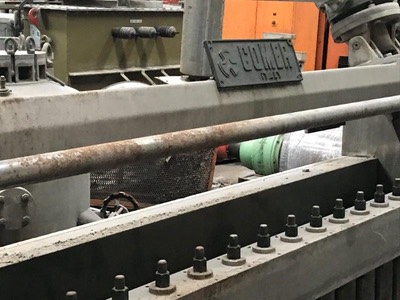

Headbox N° 1

  • Made VAS
  • Type: pressurized
  • Min/max capacity: 12.000 / 24.000 lt/min
  • Slice width: 2750 mm
  • Speed: max 650 - 800 m/min

Headbox N° 2

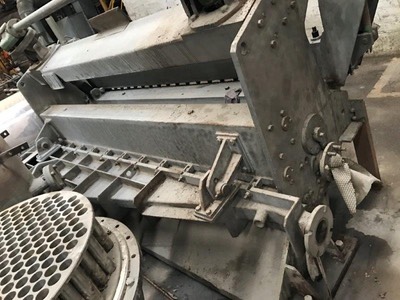

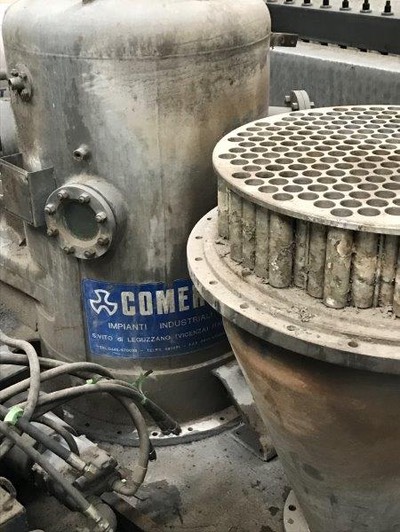

  • Made COMER
  • Type: hydraulic
  • Min/max capacity: 7.500 / 14.000 lt/min
  • Slice width: 2750 mm
  • Speed: max 650 - 800 m/min

 Suction pickup roll

Combi press with suction roll

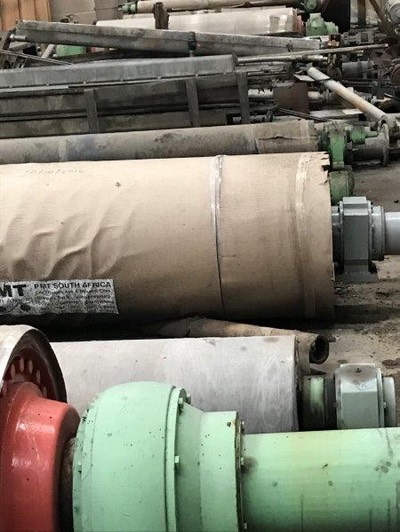

Jumbo press: Ø 1295 mm, face 2850 mm double felted

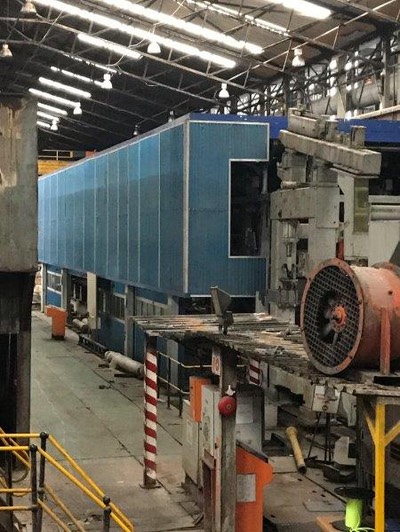

32 dryers 1.5m diameter 5 bar steam in new forbes marshal hood wit heat recovery

stationary syphons and trubualator bars

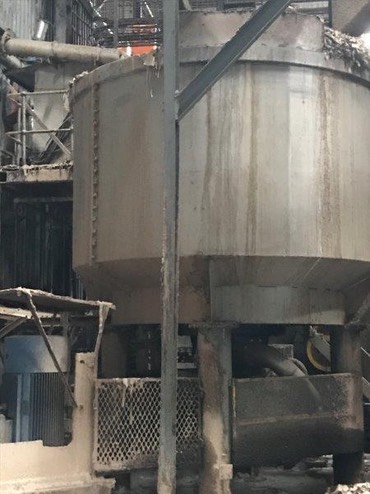

10m3 repulper Low density

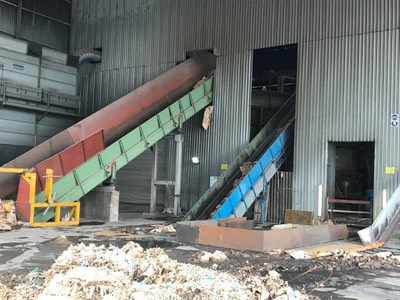

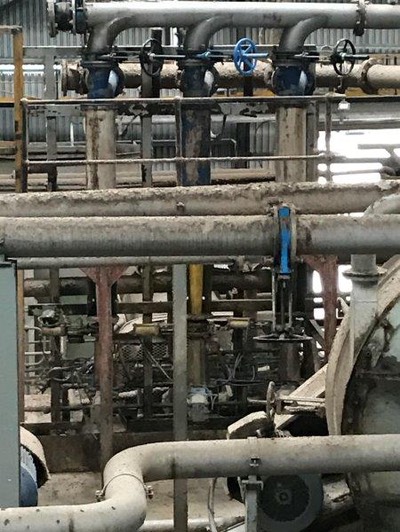

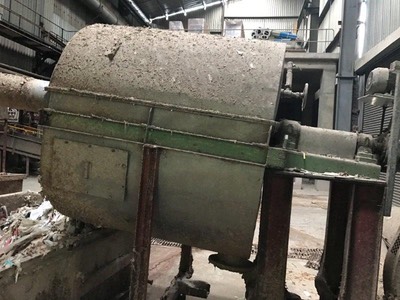

Stock prep

  • 2 LD Pulpers 180tpd each
  • 1 HD pulper 85tpd
  • 1 HD pulper 160 tpd

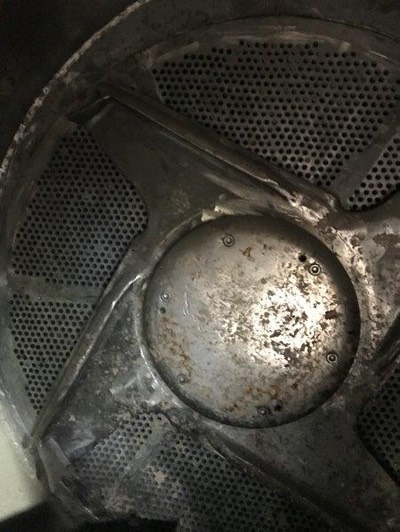

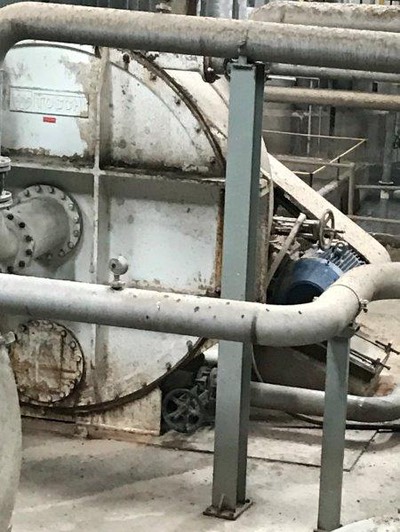

  • 4 toschi turbospearators

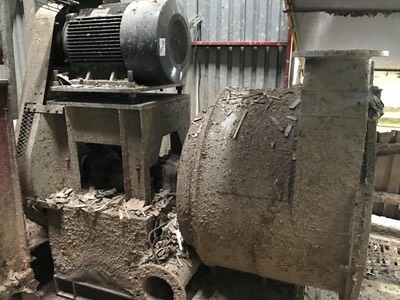

  • 1 toschi Vortiscreen

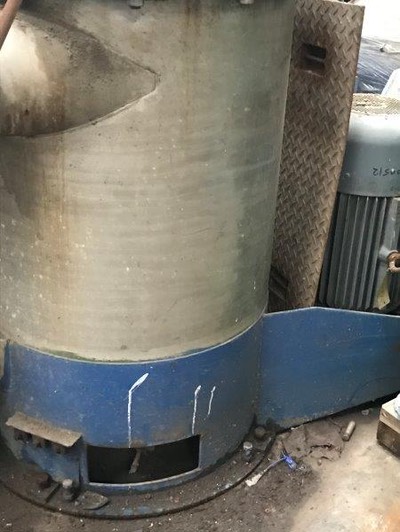

  • 5 black clawson P24 screens with new baskets and rotors
  • 3 pair thickening screws
  • 3 Finkh thickeners with new stainless steel wire
  •  2 Pilao triconic refiners
  • 1 Jylhaavra JC02 refiner
  • 2 Hett deflaker
Algas HP25 1



Water treatment

  • 1 krofta sedicell sdc27
  • 1 Algas HP25

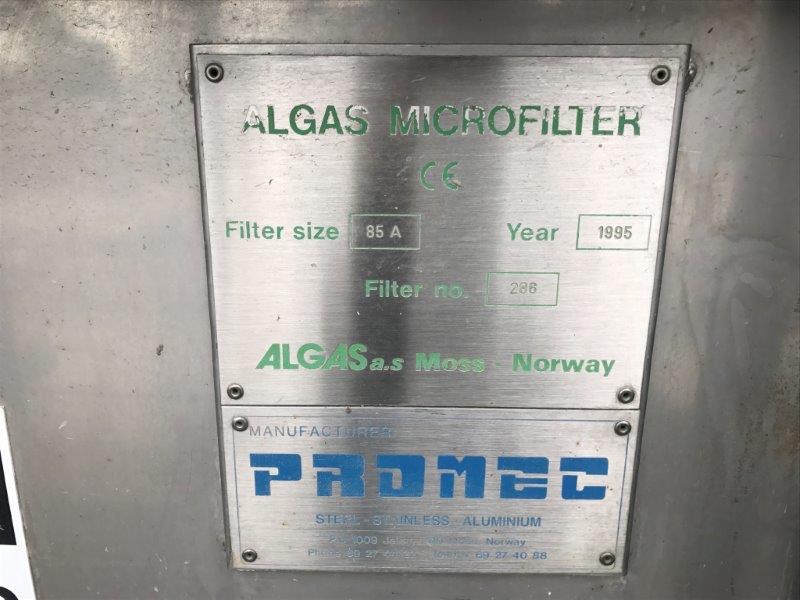

  • 1 algas HP85

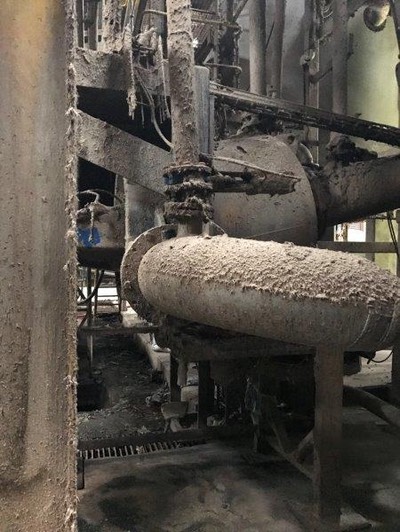

12m3 pulper stock pump

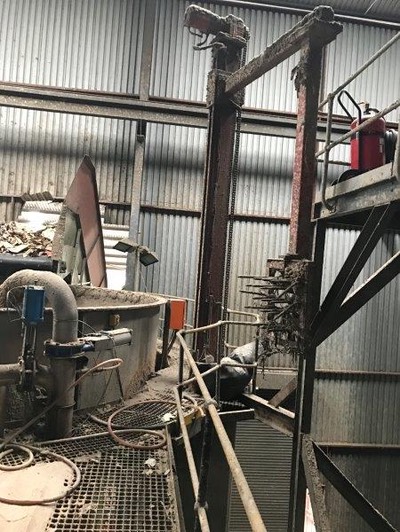

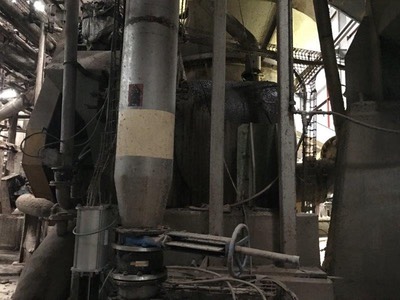

25m3 High density repulper 450kw with VSD

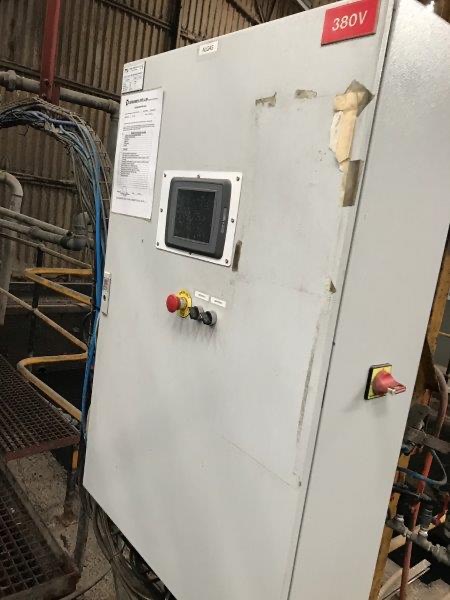

Algas HP 25 Control panel incl PLC

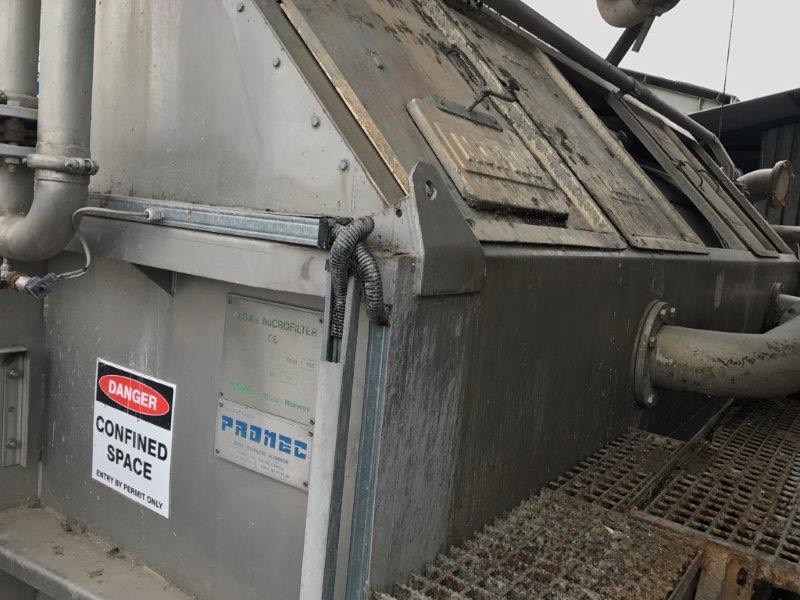

Algas HP85 (2)
Algas HP85 (3)
Algas Hp85 control panel incl PLC
Algas HP85

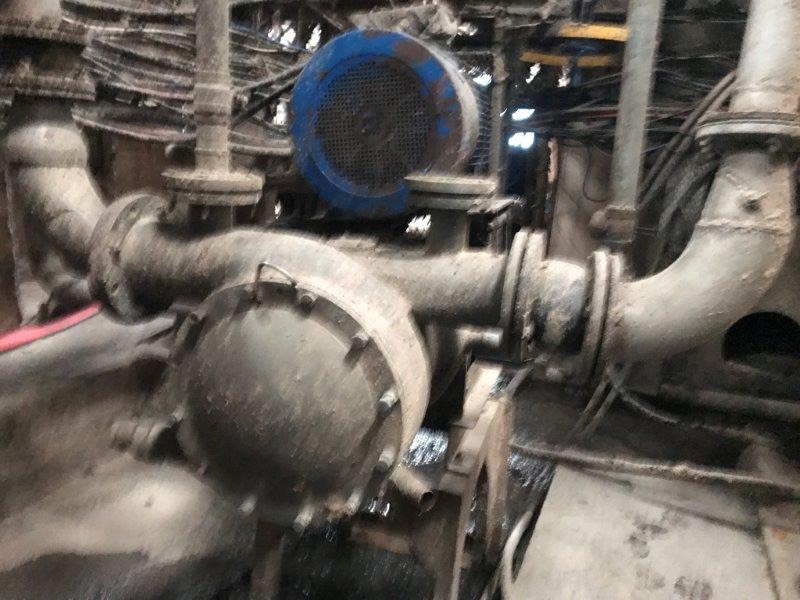

Bird M100 centrisorter

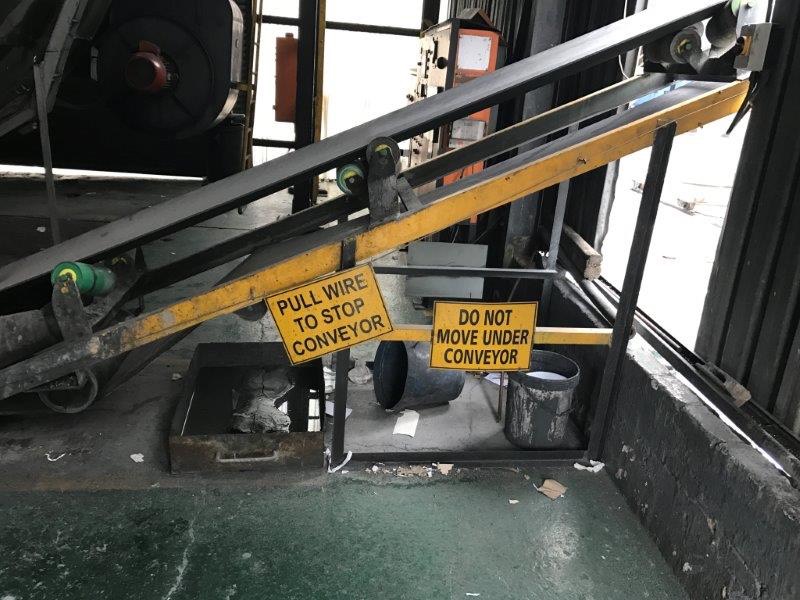

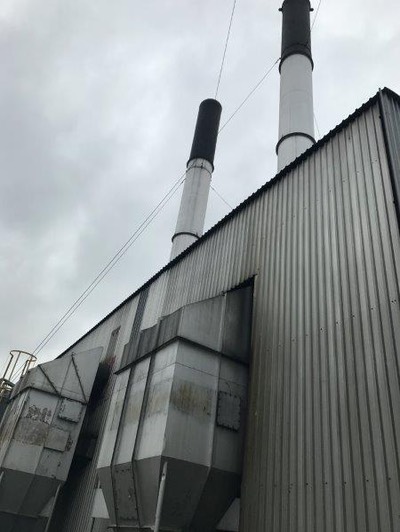

boiler ash conveyor

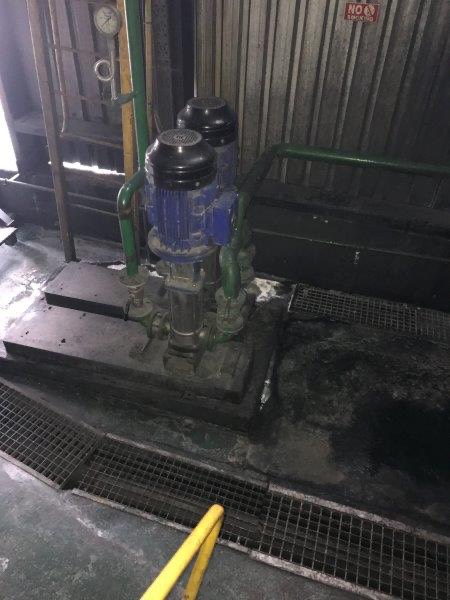

boiler feed pump

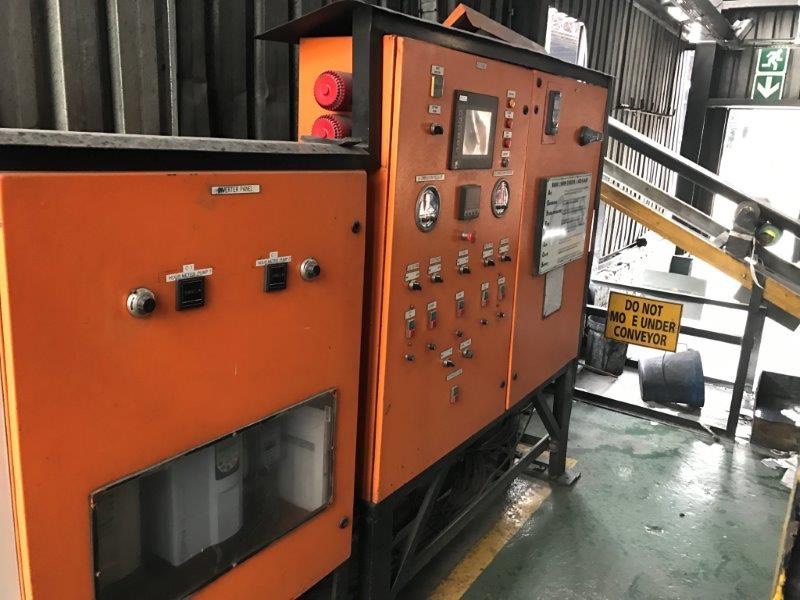

boiler no 2 control plc

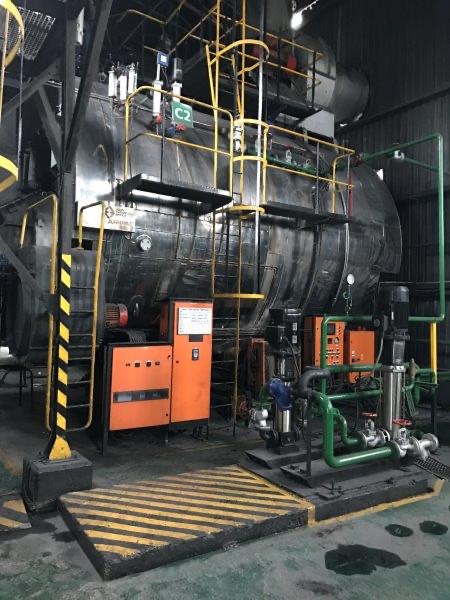

boiler no1 control plc

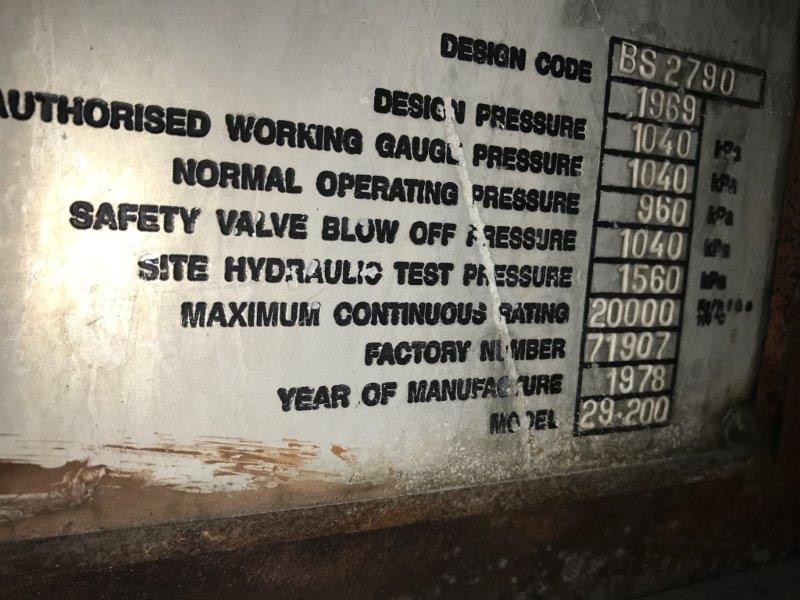

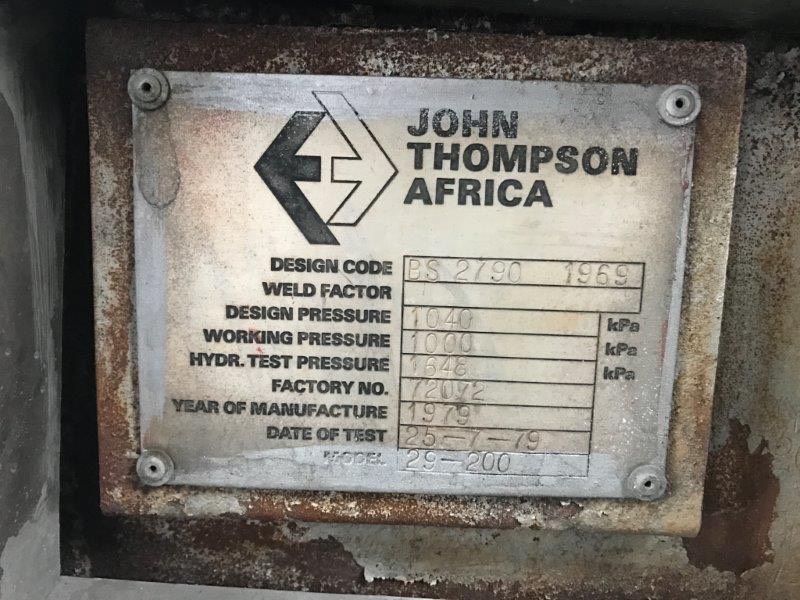

boiler no1 data plate
boiler no2 data plate

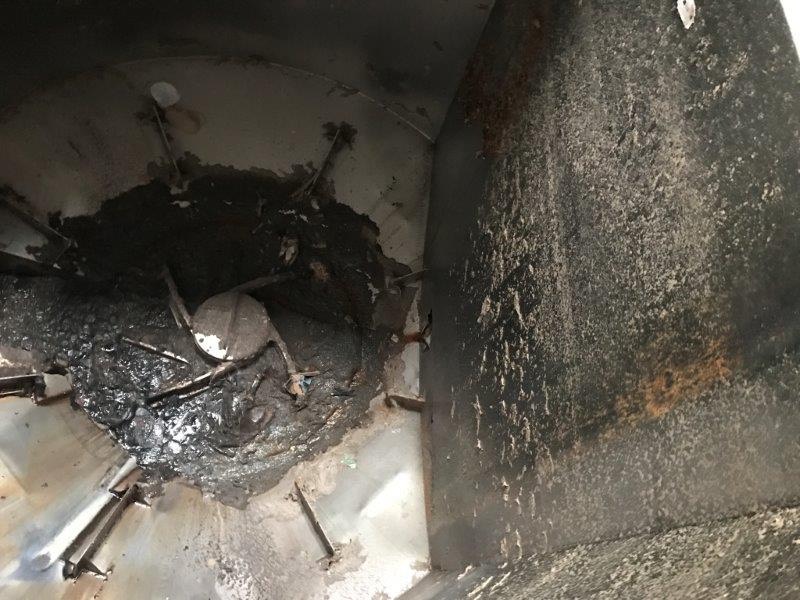

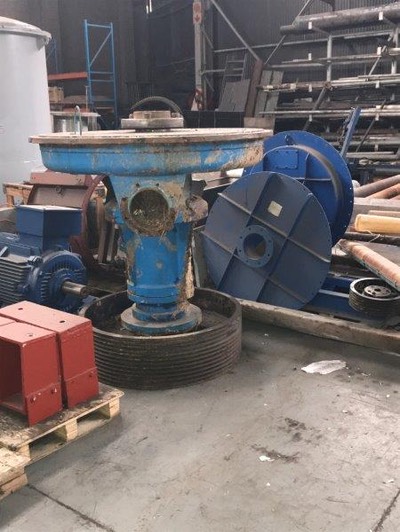

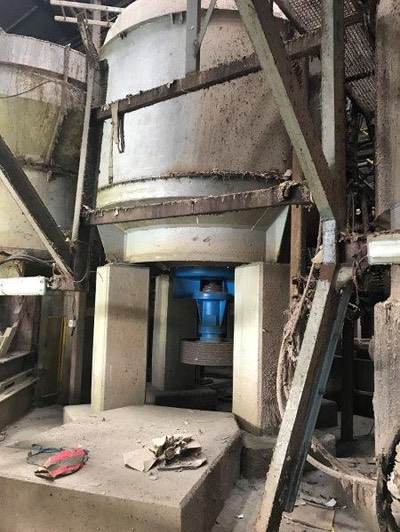

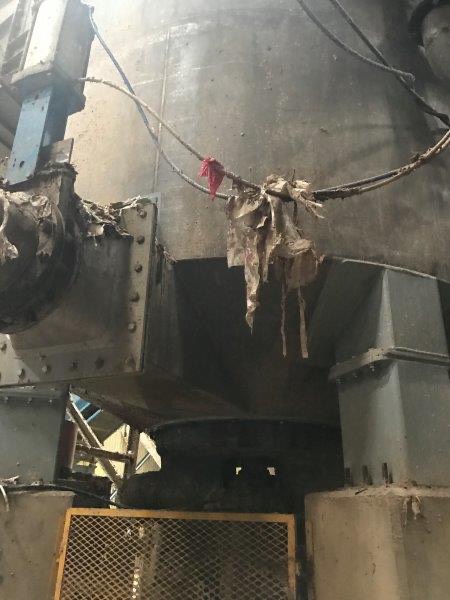

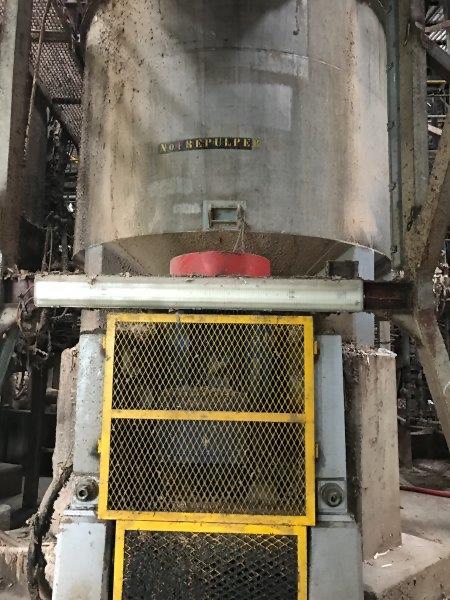

D shape low density pulper 200kw

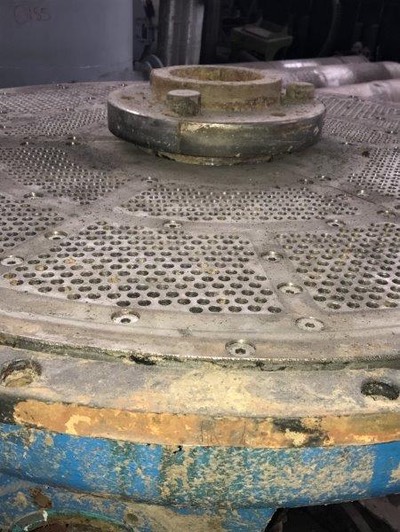

D shape Low density pulper
D shape Low desity pulper 200kw

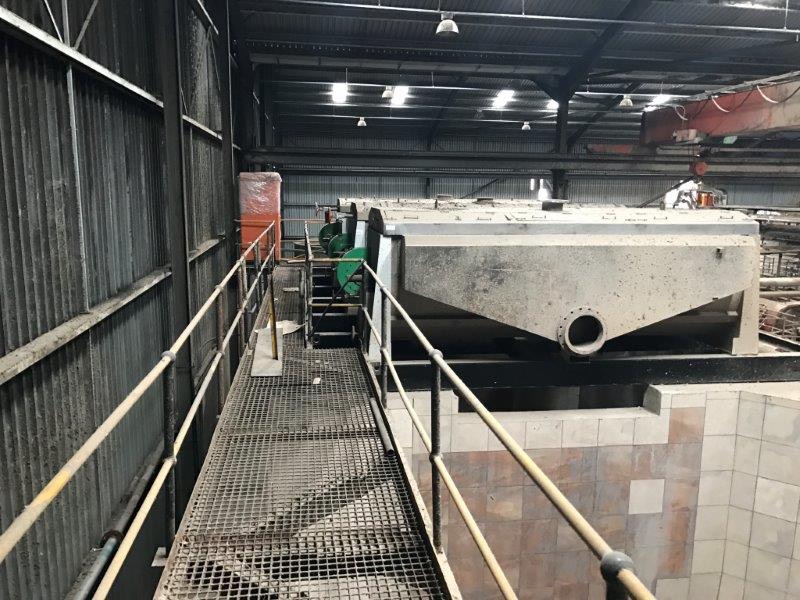

Finkh Thickener 3 off

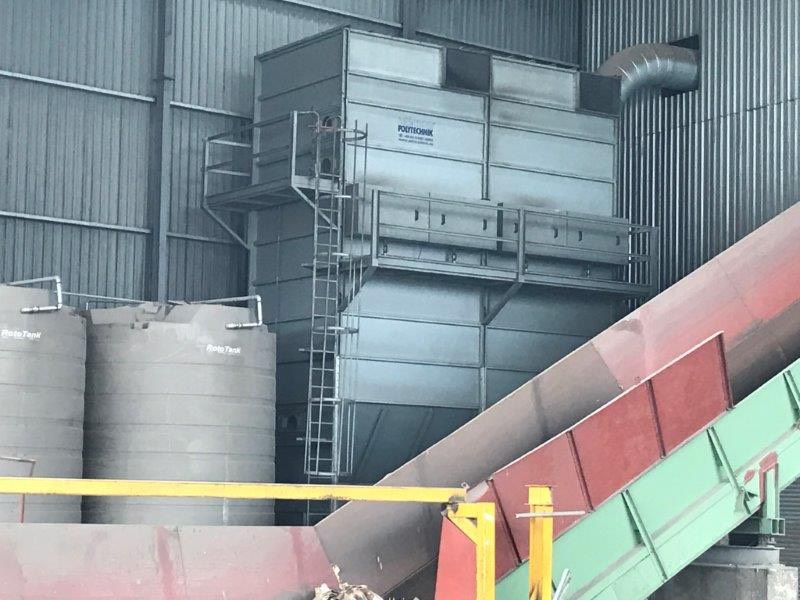

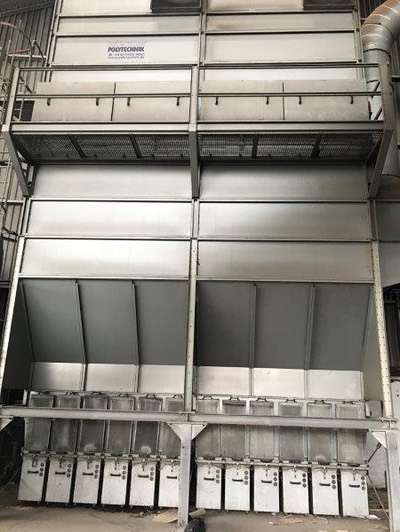

hoecker dust filter
Hoecker extraction air separator

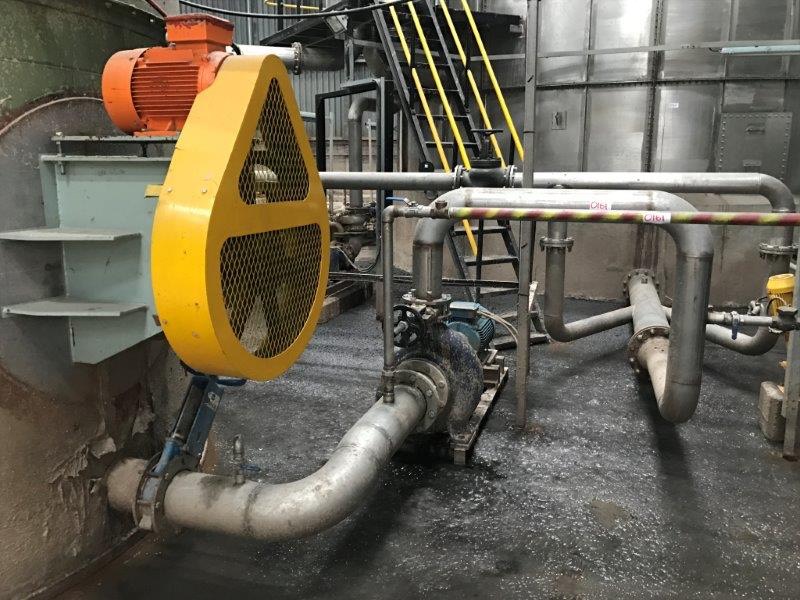

Krofat Feed pump

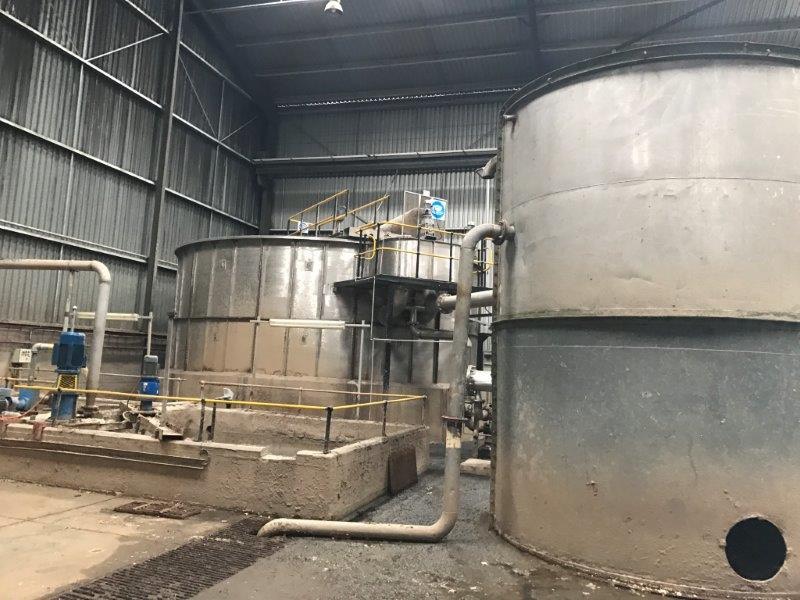

Kroft Sedicell SD27

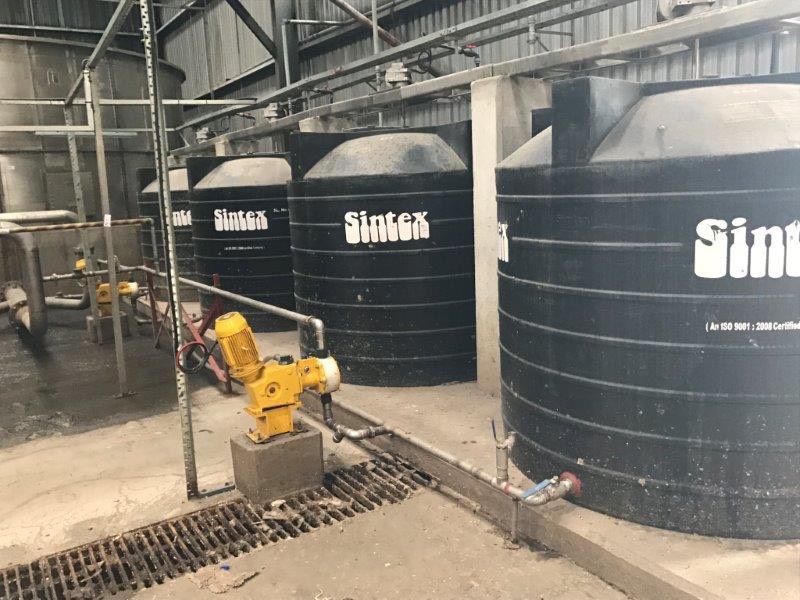

Krofta Chemical dosing

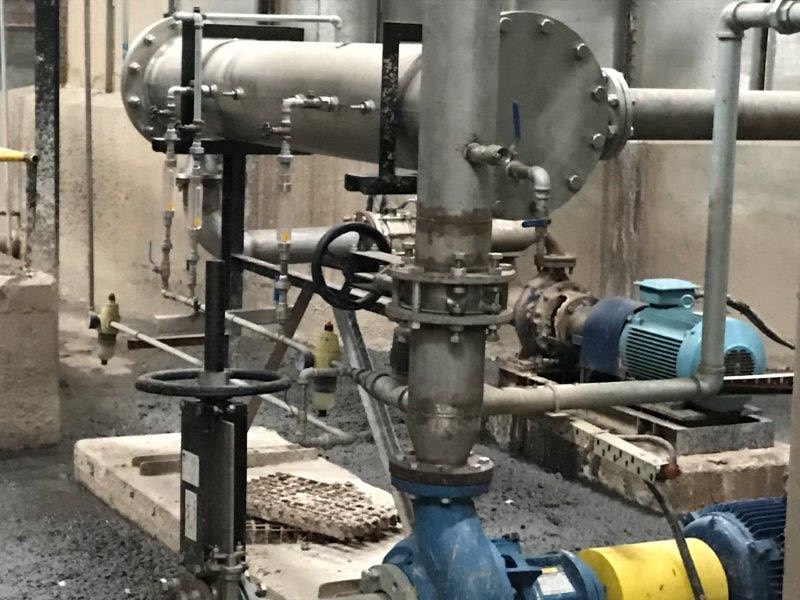

Krofta Sedicell Air tube

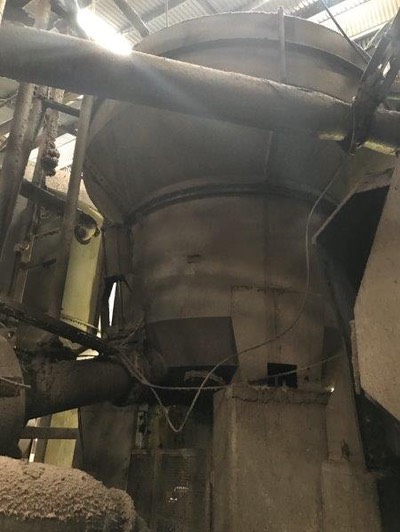

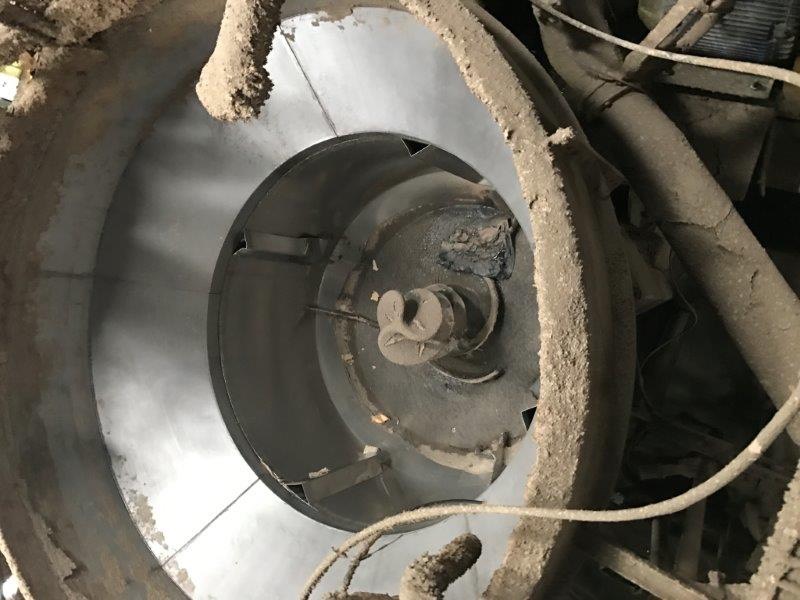

Lamort 12m3 High density pulper

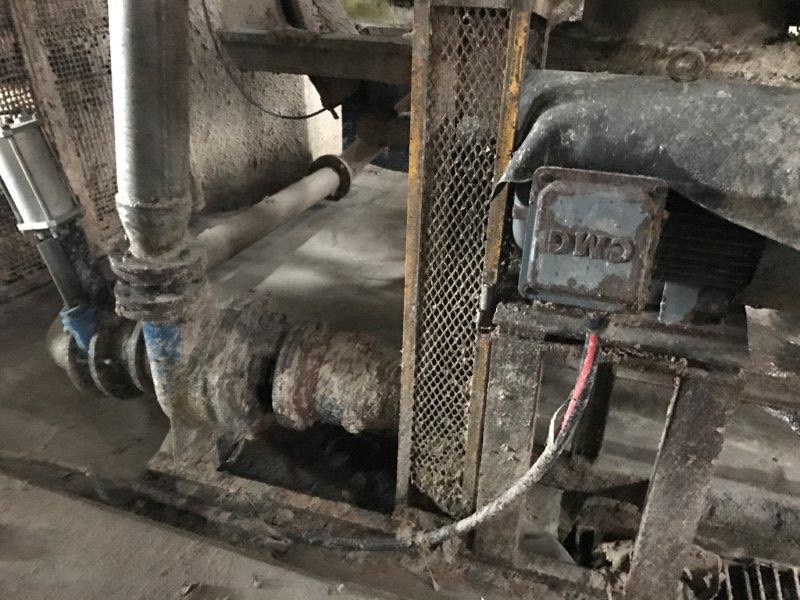

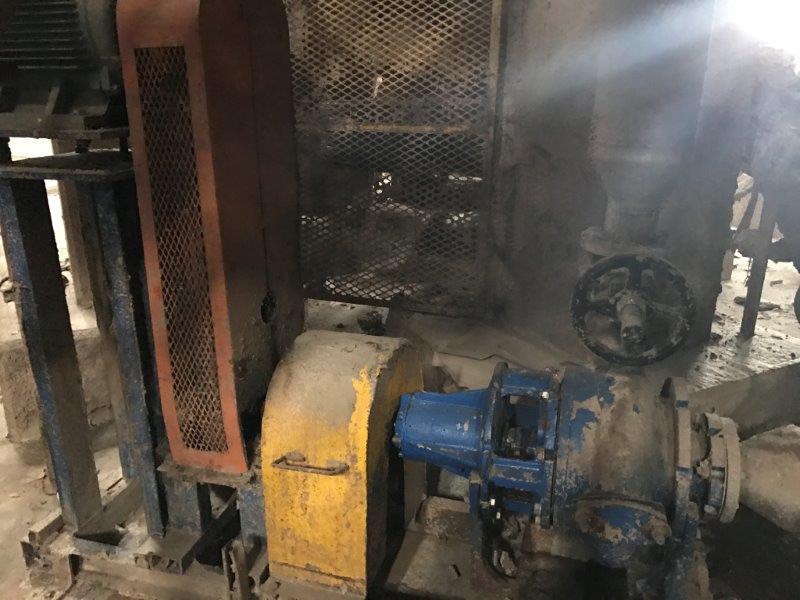

Low density pulper stocl pump 37kw

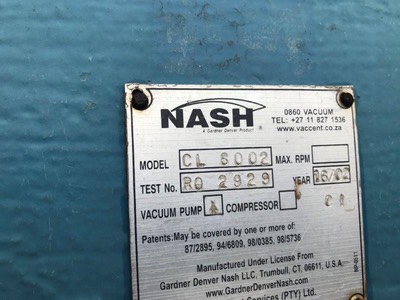

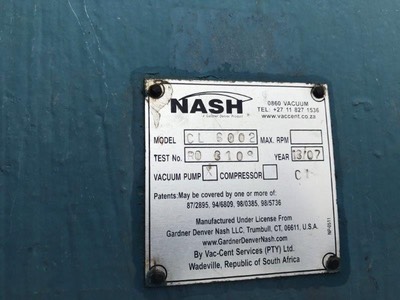

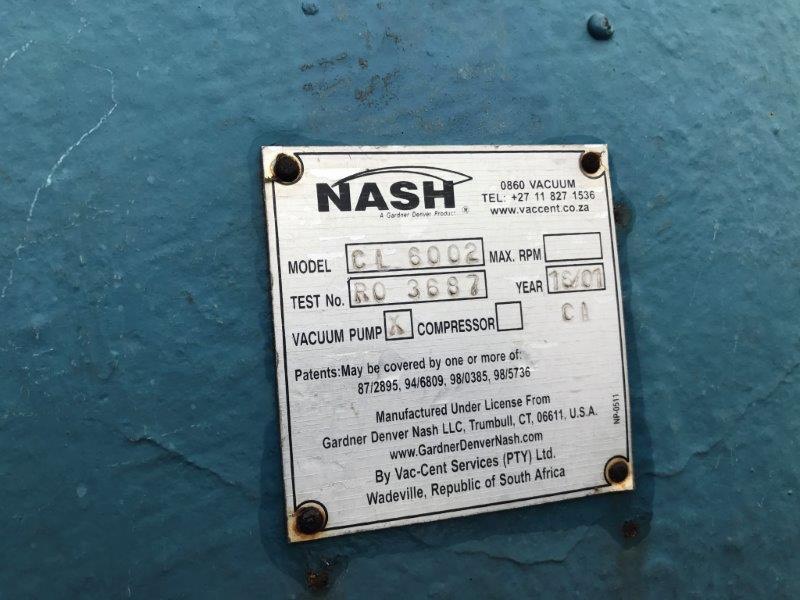

Nash (5)
Nash pumps (2)

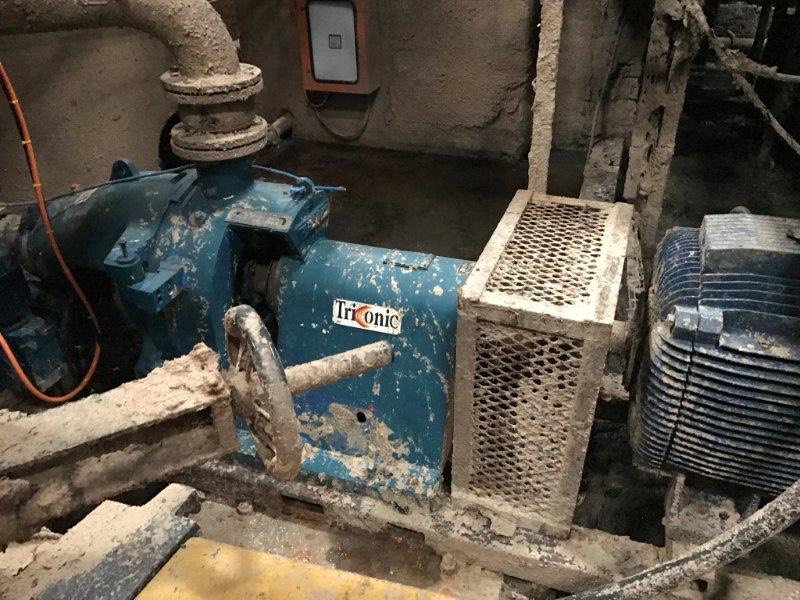

Pilao Triconic refiner 315KW

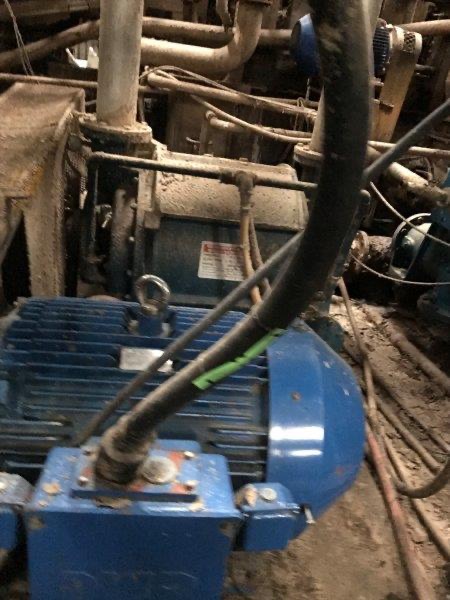

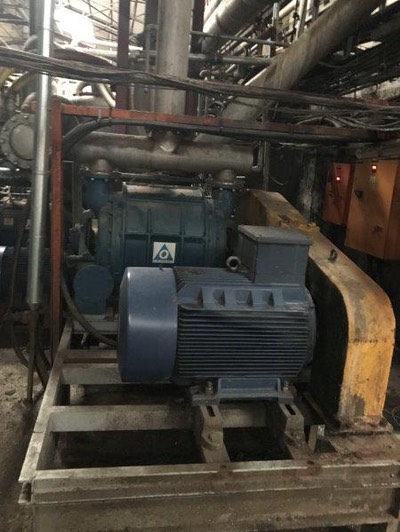

PM2 1st press vacuum pump Nash CL2000

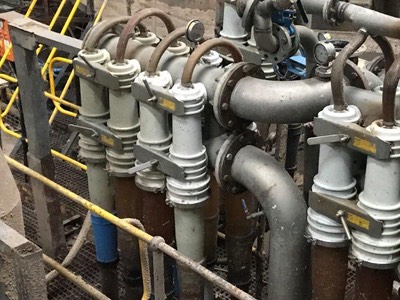

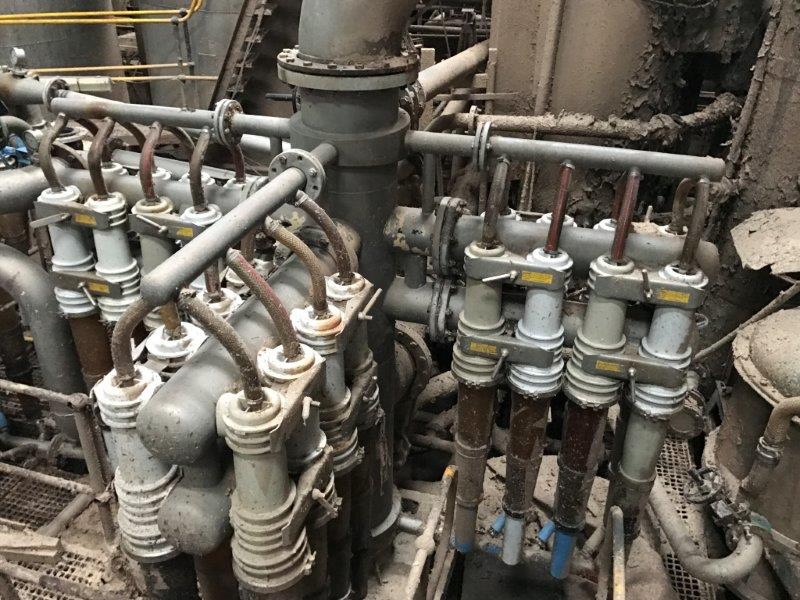

PM2 1st stage approach celleco

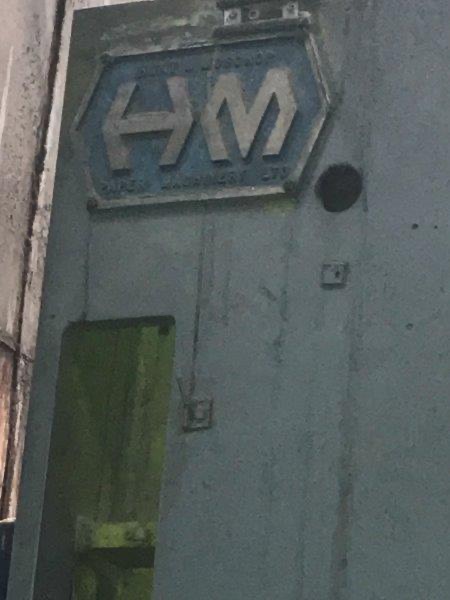

PM2 Calendar

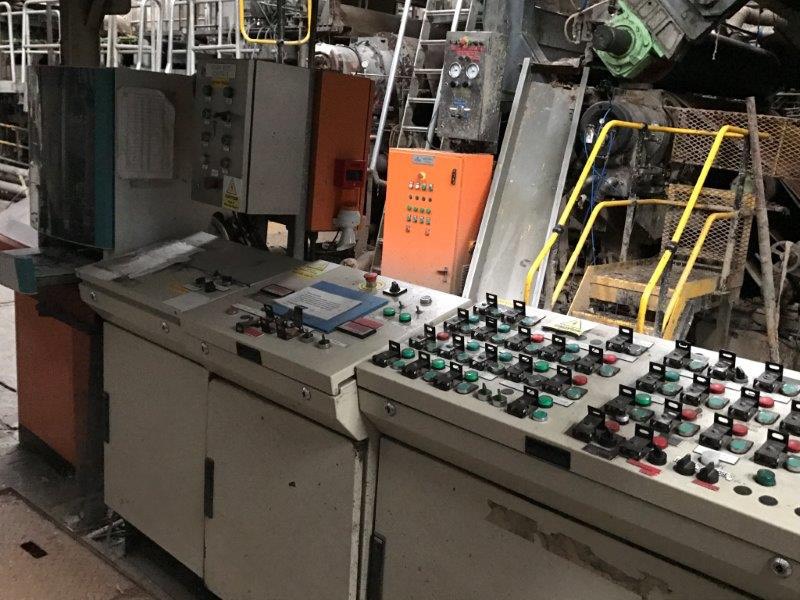

PM2 control suite

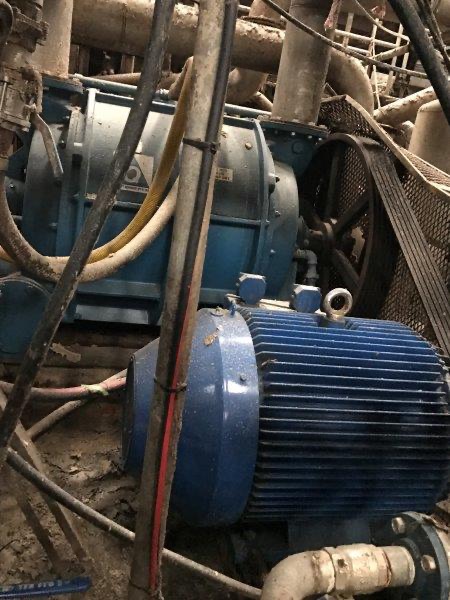

PM2 couch vacuum pump Nash CL4000

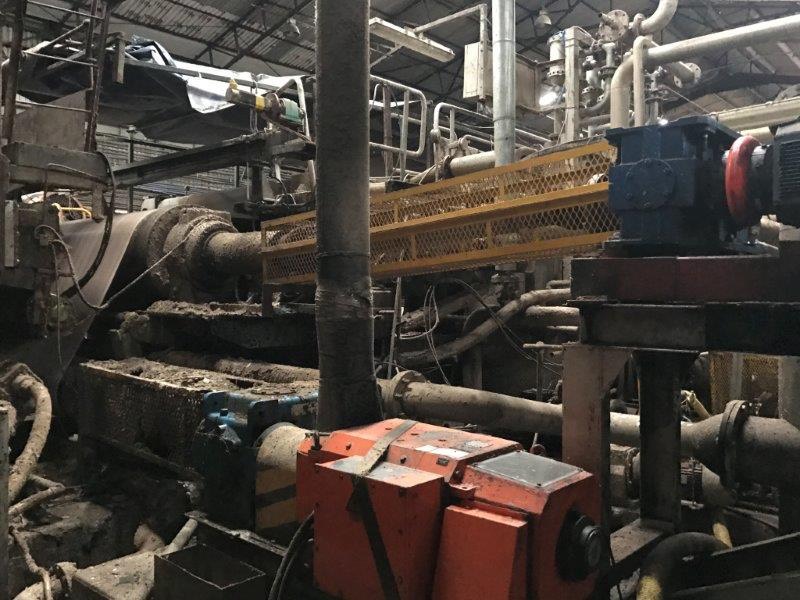

PM2 Forward drive and couch drive

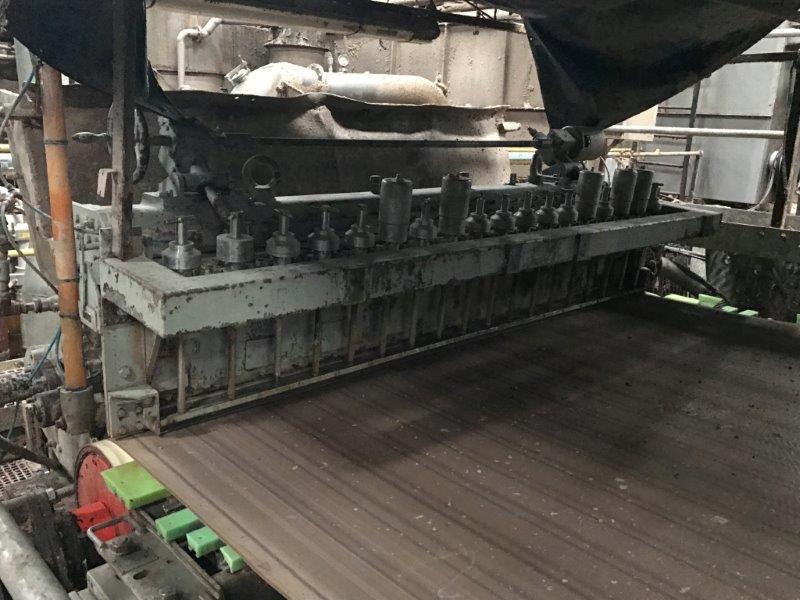

PM2 fourdrinier and headbox

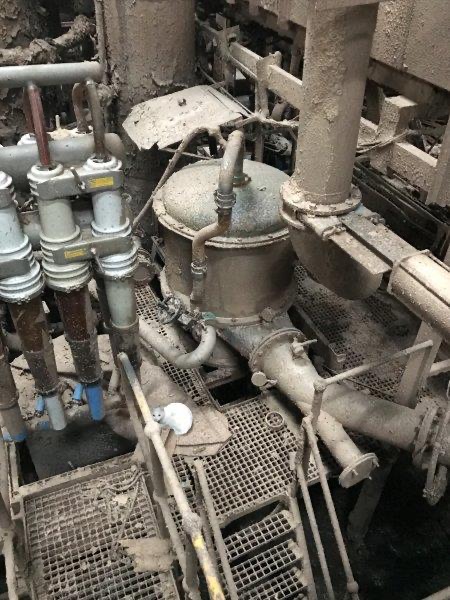

PM2 headbox screen Lamort SP800 slotted 0.8mm

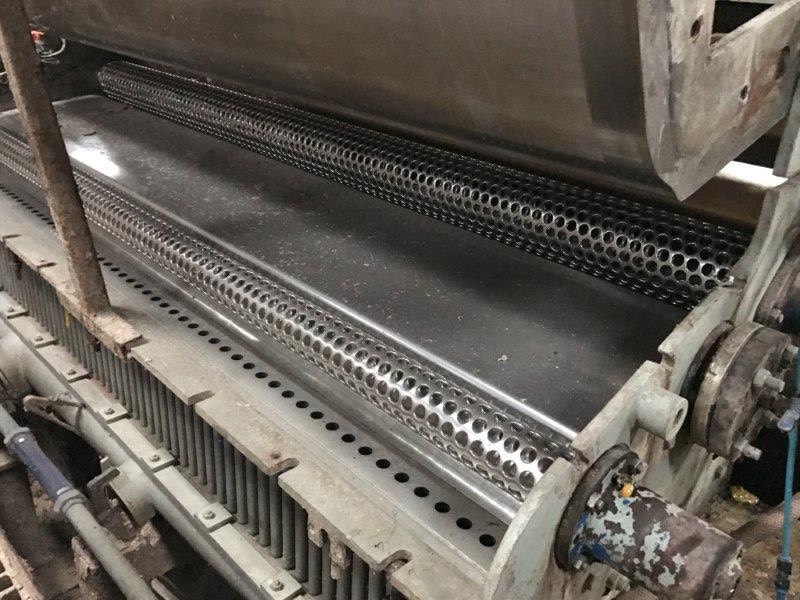

PM2 Headbox Voith K-type pressurised

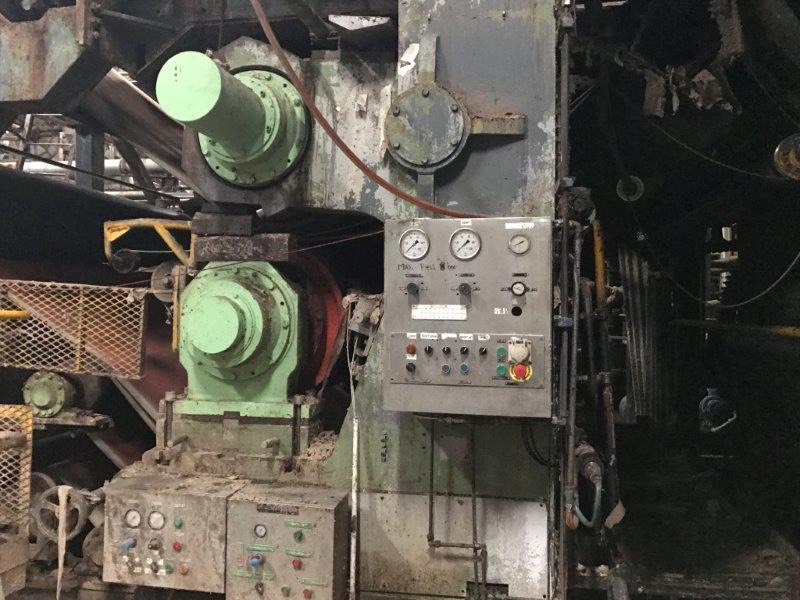

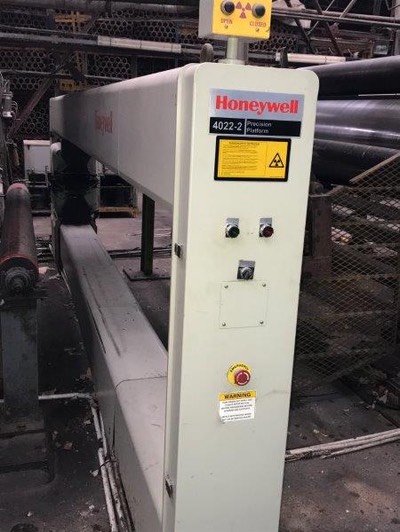

PM2 Jumbo Press

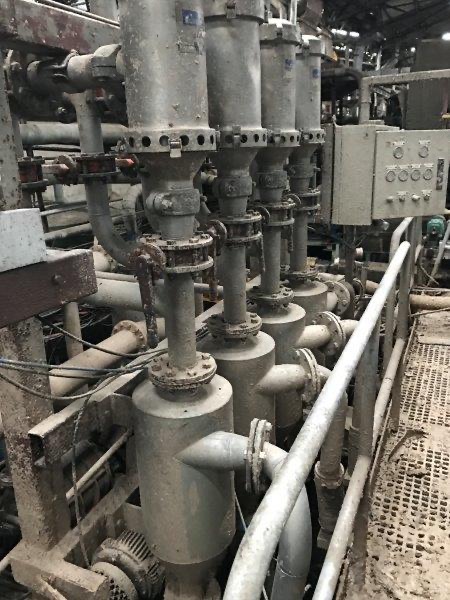

PM2 Low vacuum separators 4 off

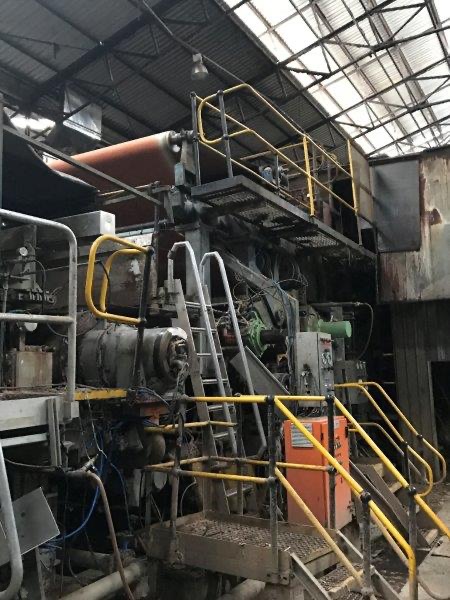

PM2 press section

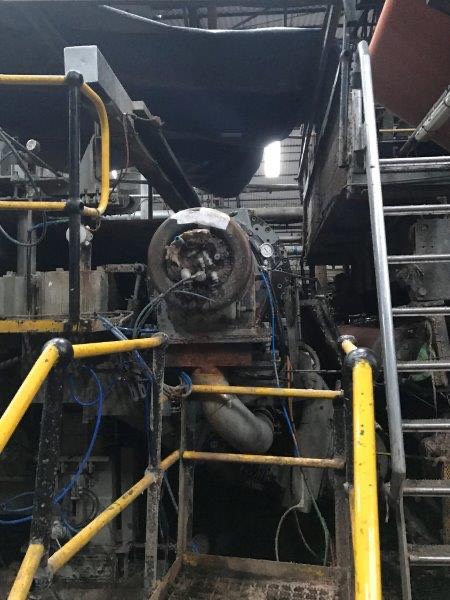

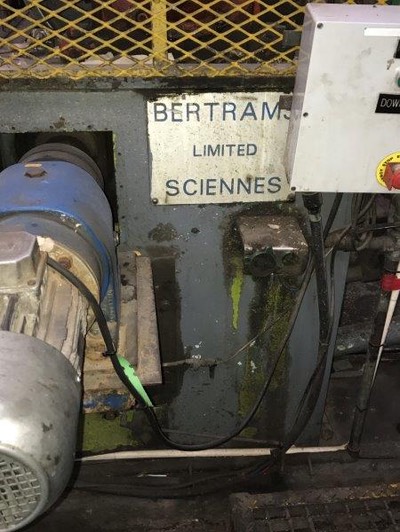

PM2 suction couch Atliers Allibe

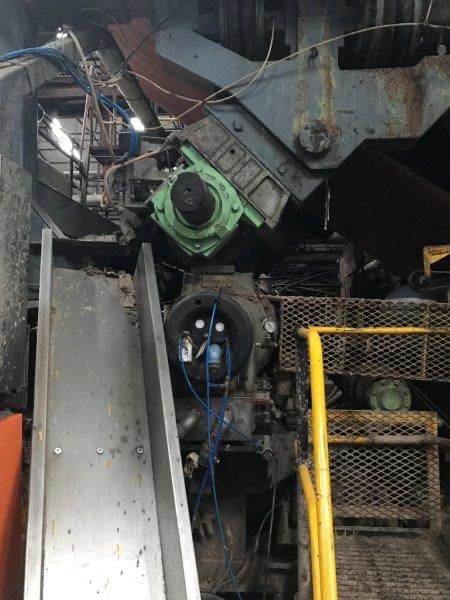

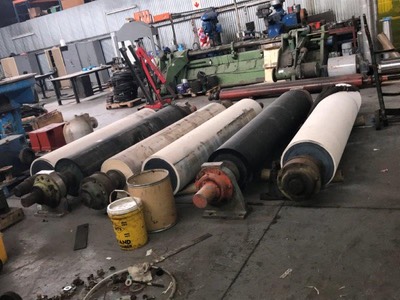

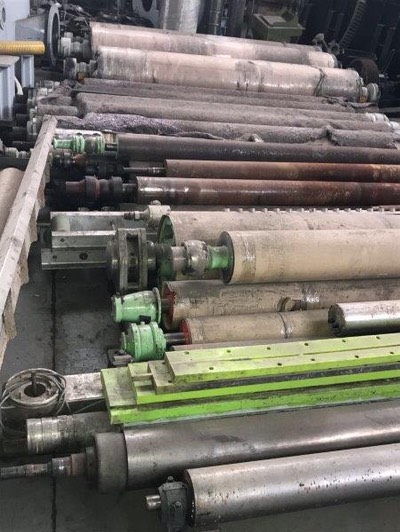

Pm2 suction press attliers Allibe
