SM2131

KRAFTPAPER MACHINE, Beloit, 3,048mm trim, 14-120gsm, 630 M/min

Machine manufactured by GL&V, Black Clawson and Beloit.

Grade kraft paper.

Basis weight: 45 GSM to 120 GSM

Trim at reel 3,048 mm.

Right hand machine.

Average speed 630 m/min.

HEADBOX AND WET END

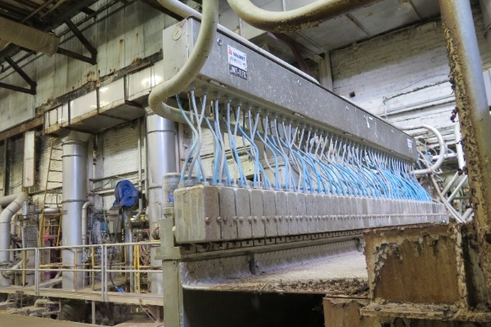

Headbox - GL&V 1997

Pressurized type. DR2-16, 134" width.

Operation speed 2 200 fpm.

15 000 USGPM, speed 640 m/min, consistency 0.2 to 0.55 %.

134" (3.4 m) width, design speed 3000 fpm.

Valmet Jetmatic control.

Headbox overall dimensions: 46", 202" width, 120" depth.

44 actuators.

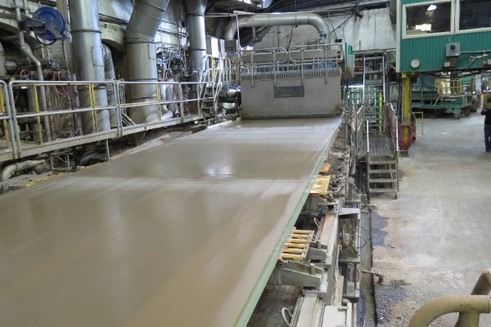

Fourdrinier - GL&V 1997

Wire width 140.5"

59'3" lenght by 150" cc frame Cantilever.


Couch roll - Millsdaugh Ltd

34" dia., suction roll.

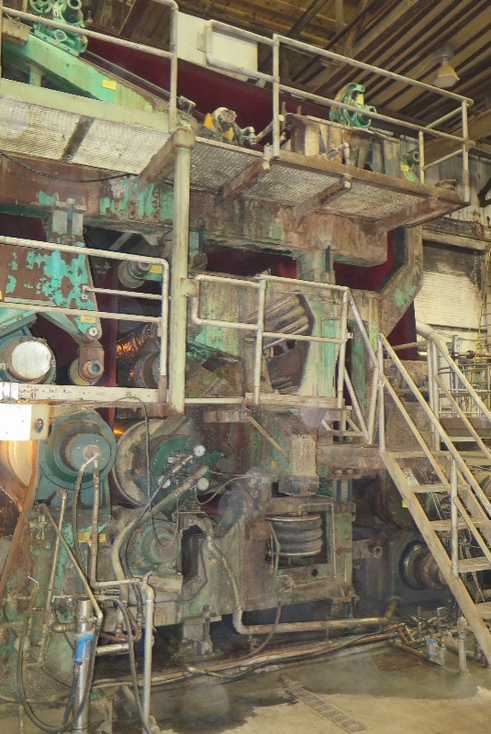

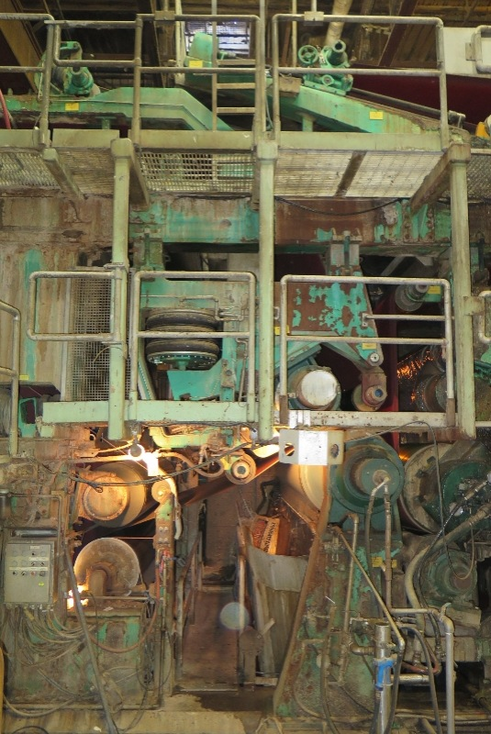

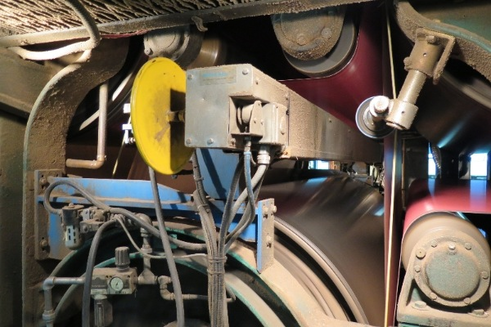

TRI-NIP PRESS

Tri-Nip Press Beloit 140" face


First press

140" face, 23.5" dia.

300 to 400 PLI operating pressure. Max: 400 PLI.


Second press

Suction press roll

140.25" face, 34.25" dia.

600 to 700 PLI operating pressure. Max: 800 PLI.


Third press

140" face, 27" dia.

400 to 500 PLI operating pressure. Max: 550 PLI.


Central roll

Micro Roc.

140" face, 37.25" dia.

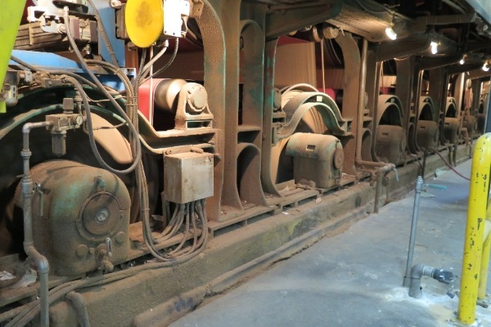

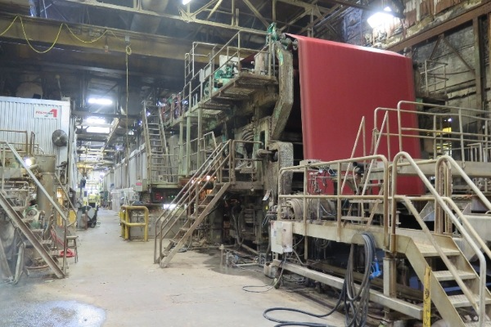

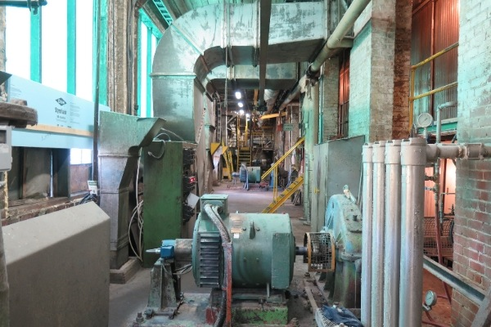

DRYER

Dryer - Beloit

46 dryers 130" face, 60" dia.,

Design speed 3000 fpm

Opperation speed 2200 fpm

Felt 134"

Operation pressure: 75 PSI.


Steam consumption

22 000 lb/h.


Hood

Economizer

Johnson Thermo compression steam system



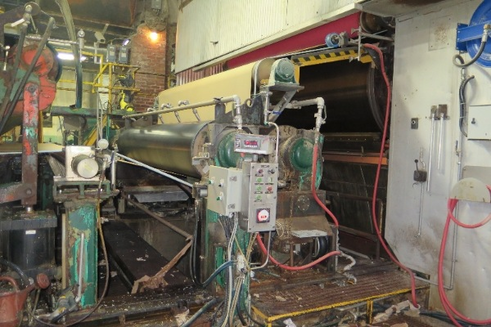

SIZE PRESS AND CLUPAK

Clupak Beloit

Extensible unit, 132" face built in 1959.


Size press :

Top press: 134.25" face, 25" dia

Bottom press: 134.25" face, 24" dia



CALANDER STACK

Calander - Hunt and Moscrop Ltd

King roll : 130" face, 29.8125" dia.

Queen roll: 130" face, 20" dia.

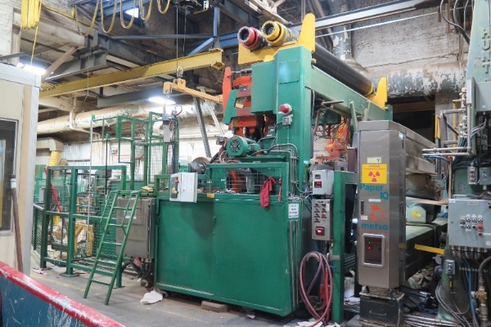

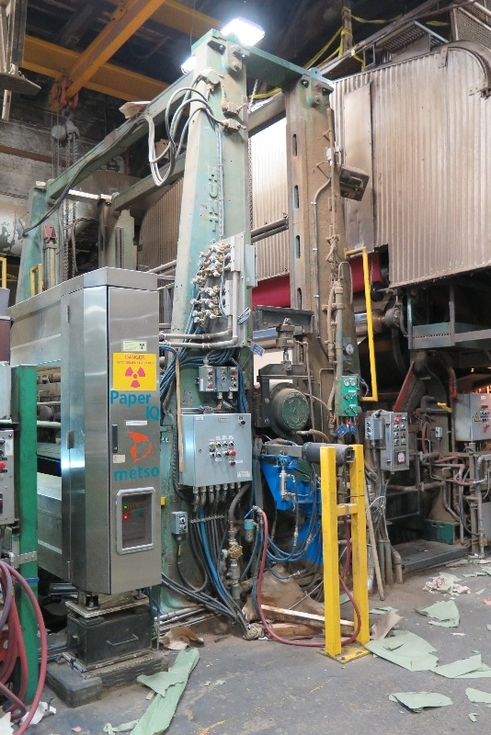

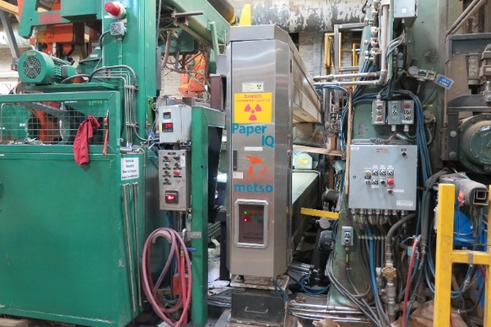

SCANNER

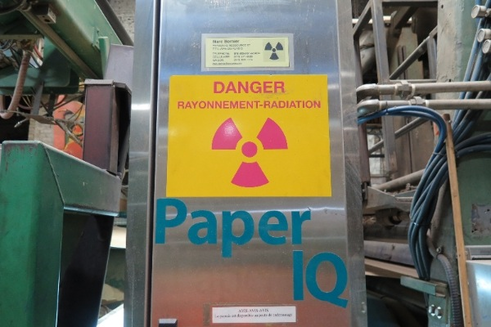

Scanner - Metso Paper IQ

Control of humidity, thickness, Headbox auto slice, basis weight.

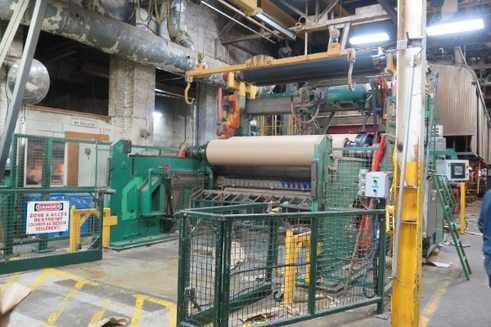

 REEL (WINDER)

Reel - Valmet 1997

Machine type: M-Reel , design speed 3000 fpm.

Drum: 130" face, 43.31" dia.

Cast iron, single groowing.

Max roll dia.: 77”.

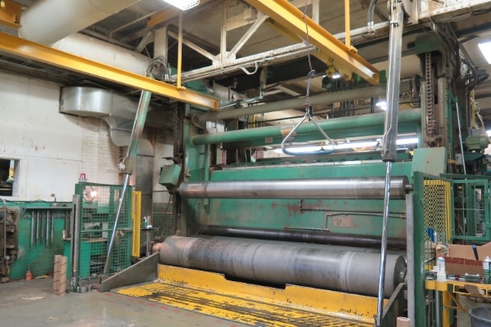

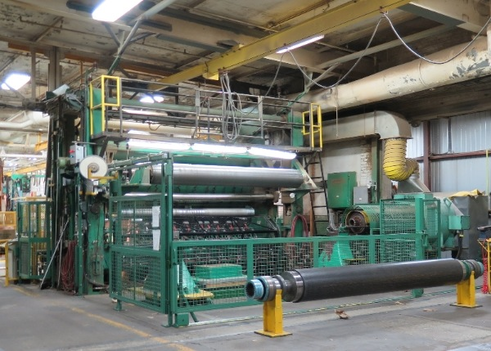

 SLITTER REWINDER

Slitter rewinder - Beloit - Model M 24-R-60

2 drums surface winder: 174.125" face, 24" dia.

Rider roll 13½" dia.

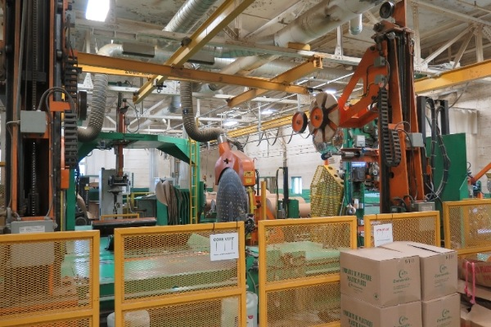

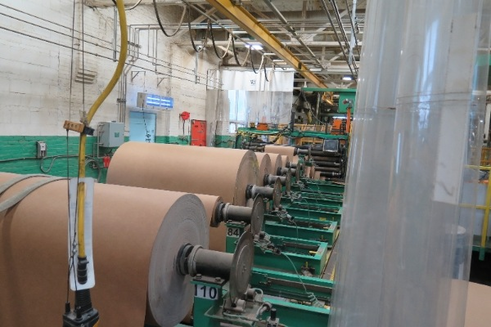

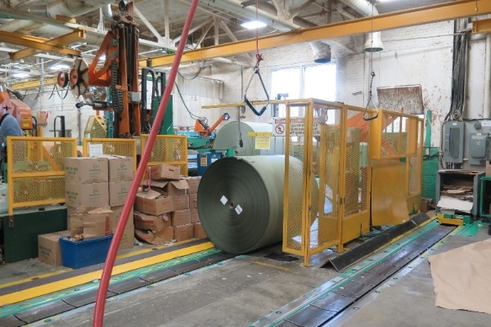

CONVEYOR - CYVECTOR

Roll dia. min 20" max 60".

Width: min 8.5" max 110".

60 roll/hr max.


STOCK PREP (common with SM2130)

Pulper Hydra 3, Black Clawson

20' modified "D" shape complete with Trash tower kit.

2010 installation

Capacity: 10 MTPH

Grapnel.

Trommel HYCOR - 35 ¾ dia., 94" length.

Trash Press COMPACTOR.

Hydrapurge II Model 24-950.

Pulper drive size #4.

Steel convoyer 96" width.

Tail Cutter.

2 pulpers - Black Clawson


Hydra 1:

18' dia., Volks rotor 67 ¼ dia.


Hydra 2:

20' dia., Volks rotor 67 ¼ dia.



CLEANER

Black Clawson Hydrapurge III on Pulper #3

Scavenger # 2 with continuous evacuair on Pulper #2.

Fiberprep 1995.



HDC 14.5" - Black Clawson

High density cleaner



LDC Low density cleaner - Andritz

Paper machine # SM2131

Stage 1: (75x) Model 606-110P

Stage 2: (11x) Model 623

Stage 3: (2x) Model 623

Stage 4: (2x) Model 606


Paper machine# SM2130

Stage 1: (72x) Model 606-110P

Stage 2: (30x)

Stage 3: (16x)

Stage 4: (5x)


HOT DISPERSION SYSTEM

Krima hot dispersing system:

500 MTPD capacity modified to 250 MTPD.

System is composed of:

2 screw press, Cellwood, RR750 , 200 HP, 1800 RPM (var.)

1 screw conveyor 500.2, 15 HP, 1800 RPM.

1 plug srew 5030, Model 75 HP-1200.

1 shredder 500-5033, 20 HP, 1200 RPM.

1 pre-heater 13050, 40 HP, 1800 RPM.

1 infeeder 400, 20 HP, 1200 RPM.

1 disperger KD-1050, 1500 HP, 1200 RPM.

1 MC pump Ahlstrom, 150 HP, 3600 RPM (var).



PRESSURE SCREEN


Pressure Screen

Voith 20

Fiberprep CH 5 & CH 3

BIRD 10, BIRD 400, BIRD 18 Centriscreen, BIRD 24

Refiner Sprout Waldron

34" Type 2

26" Type 3

(2x) Black Clawson




EFFLUENT TREATMENT PLANT (common with SM2130)

Poseidon Clarifier Model Saturn, S300D08 - E

2 Drum Deckers 40" dia. x 126"

-----------------------------------------------------------

Vargo Filter - Polcon Corporation, 8' dia.

Twin wire press HDS

Model: DWT - 2.4/8 lc

Capacity: 10 MTPH


Sludge Press - ANDRITZ

Model: CPF 80S


ROLL SPLITTER AND CORE CUTTER (common with SM2130)

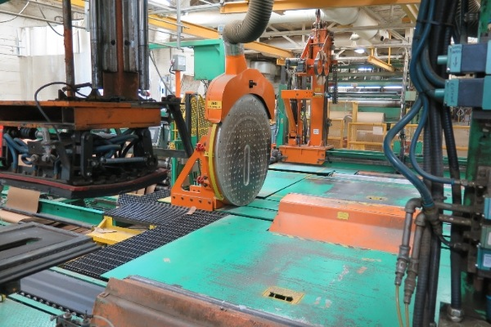

Roll Splitter

Black Clawson

120"

--------------------------------------------------------

Core cutter


ELECTRICAL EQUIPMENT (common with SM2130)

MCC, Switch, Transformer oiled and dry, Control, Capacitor Bank.

Delta V

Allen-Bradley

Westinghouse

Rex Manufacturing

Delta


STORES (common with SM2130)


MACHINE SHOP (common with SM2130)
