2,550MM Fine paper machine, Manufacture voith, Speed(100-300)m/min, GSM(18-65)gsm.
For producing tissue paper.
Production (17-25) t/day depending on quality and paper type.
Stock preparation:
pulper with motor 132 KW.
High density pump width.
Finckh cyclone.
Flat screen voith.

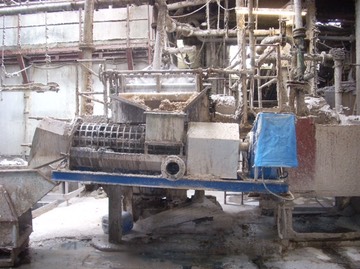

Screw extrusion press for reject.

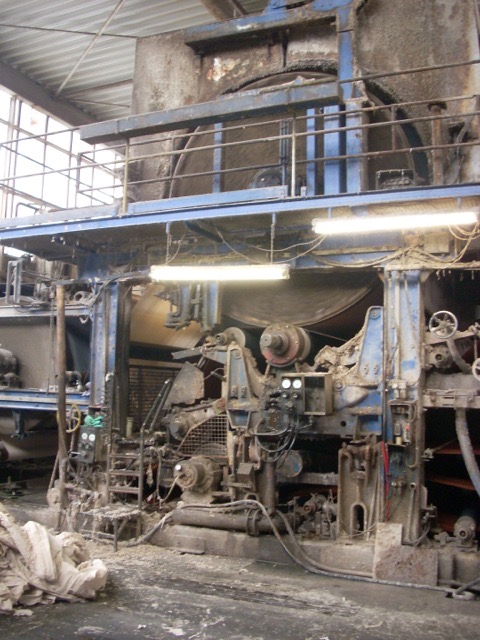

Paper machine:
High pressure head box voith 5000 lit.
Wire length: 2m*2.55m
-Formation table.
-Top side 18m*2.50m.
-Base layer 10m*2.50m.
-1HD shower pipe with movement in the top side.
-1Shower pipe in the base layer.
-Suction press roll 690mm diameter, slits 3mm.
-Glazing cylinder 3,2mm*2,55m with pressure roll and with heavy duty dryin hood.
D.C motor:
Type:Lenze G250.480,215KW.
Spare parts:
pressure roll.
Various leading roll.
suction roll.
various doctors.
spare motor(pulper).
pumps
Gear pump.
Gear pulper.
