SM2307

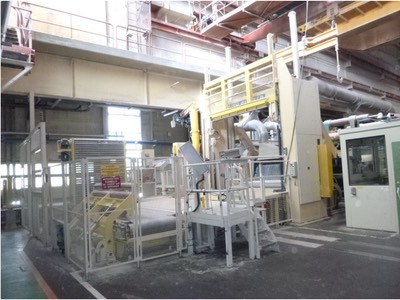

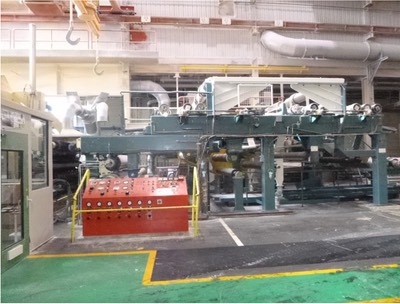

2,700mm REWINDER, Beloit, 1,200m/min. Tissue 14-30gsm, 4 ply

SM2307-03


TECHNICAL DATA

  • Manufacturer: BELOIT
  • Type:DM 55 ML 260
  • Year of construction: 1971
  • Rebuilt: by VOITH in 1999
  • Rewinder:rebuild by VOITH in year 1999
  • Maxi width:2700 mm
  • Maxi reel diameter: 2200 mm
  • Production speed: up to 1200 m/min
  • Basic weight range: 14 – 30 gsm
  • Max plies:4
  • Drive voltage:400V DC
  • Drive type:ABB DC – 440V

SCOPE OF SUPPLY

UNWIND STATION: 4 stands

  • Max parent reel diam.: 1800 mm

CALENDER:

  • Calender crown:variable (with hydraulic power station)

SLITTING STATION

  • Supplier: Mario Cotta
  • Slitting devices:16 devices (19 available)

CORE EXTRACTOR:

  • For cardboard and plastic cores
  • Shaft diameter: 3” & 6”

ROLL EVACUATION

  • UP-ENDER & transfer shuttle
  • With integrated weight cell
  • Maxi load   3000 kg
  • Roll diameter: mini:800 / maxi 2200 mm
  • Maxi width:2700 mm

ELECTRICAL EQUIPEMENT

  • Main operator panel in soundproof cabin
  • PLCSiemens (S5-135U)
  • Drives:Siemens

ACCESSORIES

  • Dust extraction:Yes
  • Spare parts:yes (mechanical & electrical)
  • Hydraulic power station:yes
  • Drawings & technical files: available
