SM2742 - EXCLUSIVE AGENCY

SM2742 - PAPER MACHINE, 5,600mm, Printing/writing

SOLD AS SECTIONS


ORIGINAL INSTALLATION & STARTUP: 1972

MACHINE DECKLE:5600 mm

OPERATING SPEED:850 m/min

BALANCE SPEED:1000 m/min

DRIVE SPEED:1100 m/min


REBUILDS/UPGRADES

  • 1980’s drive upgrade
  • 1990’s transfer and sheet support blow boxes in press to first run first dryer group - BELOIT
  • 2002 new METSO QCS O/S, Headbox, Calander and Optisizer
  • New Machine Drive


HEAD BOX

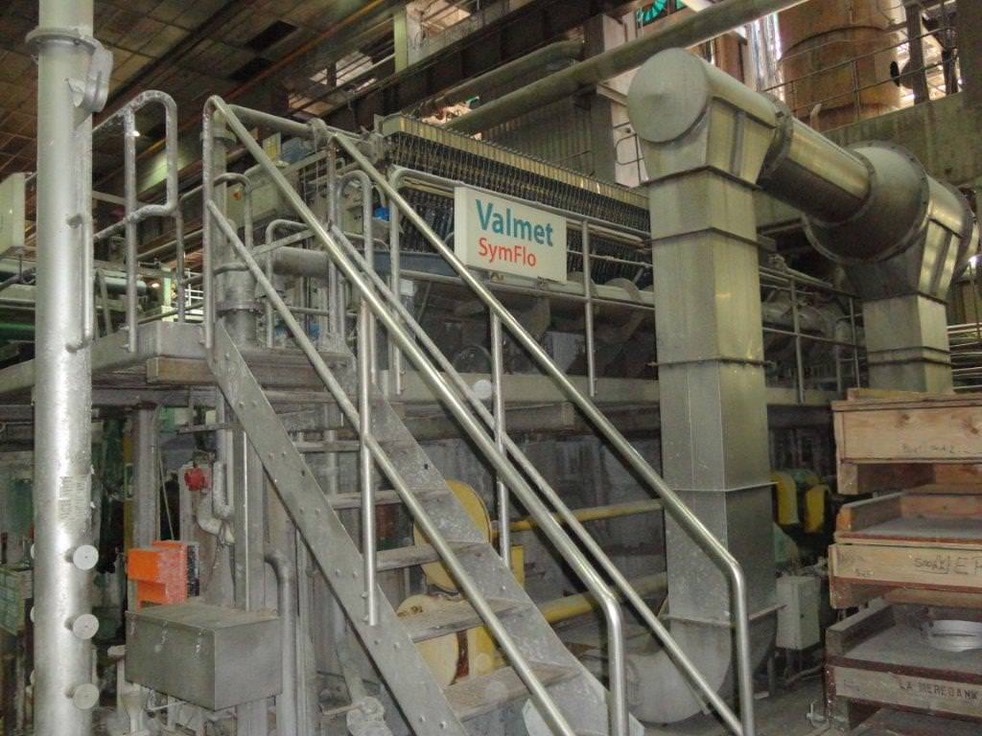

SM2742 - headbox

Metso (Valmet) Dilution Headbox (Installed 2002)


FORMER

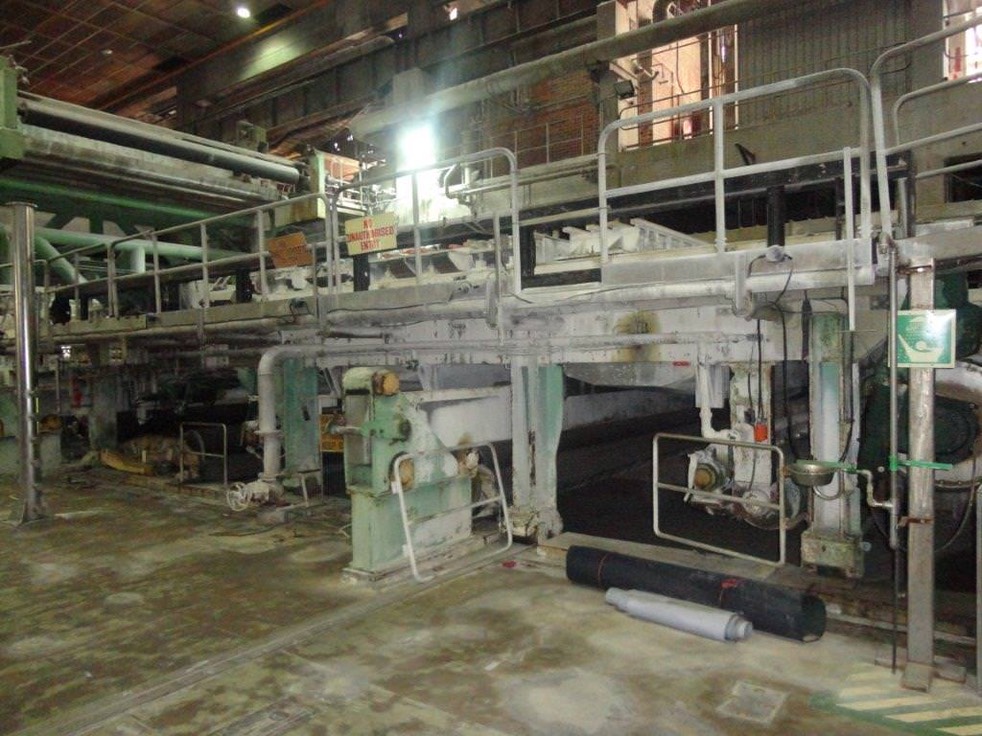

SM27 - former

Standard Fourdrinier Table - BELOIT

Single and Multiple Arc Foils

Low vac and high vac ceramic boxes

Bronze Couch Roll


PRESS

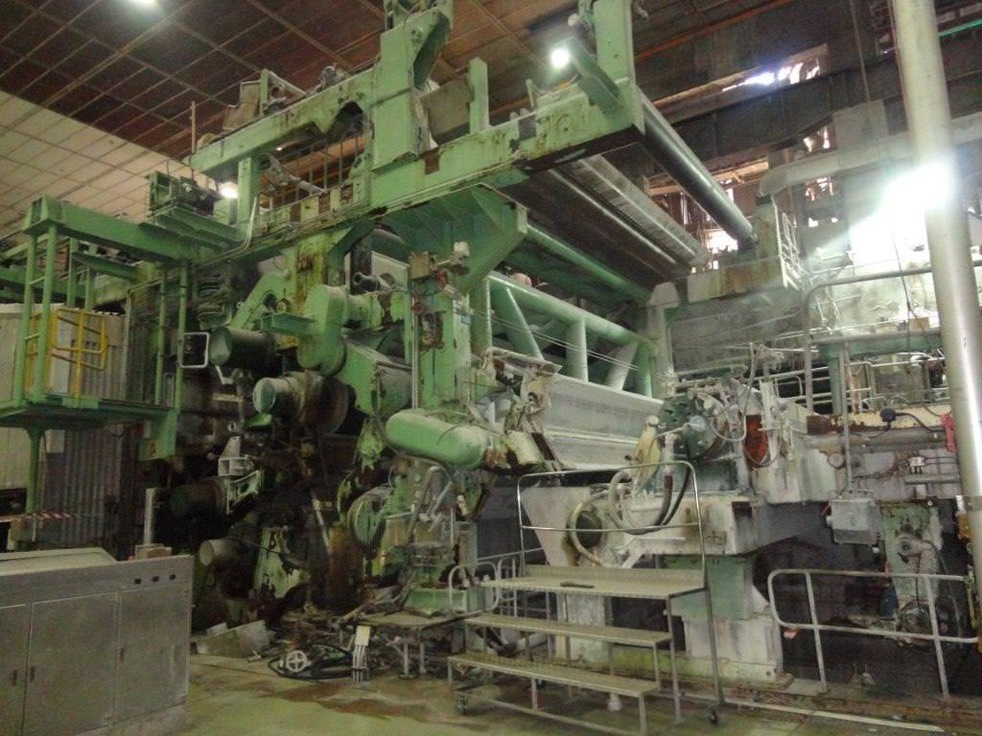

SM27 - Press

Standard configuration BELOIT Twinver with standard suction pick-up, separate 3rd press

1st Press nip with Polyeurethane Suction roll = 70 kN/m

2nd Press nip with Venta groove rubber roll = 90 kN/m

Both presses mated with centre Granite roll

3rd Press nip with grooved cc roll = 110 kN/m

Press mating roll - Granite


DRYER SECTION

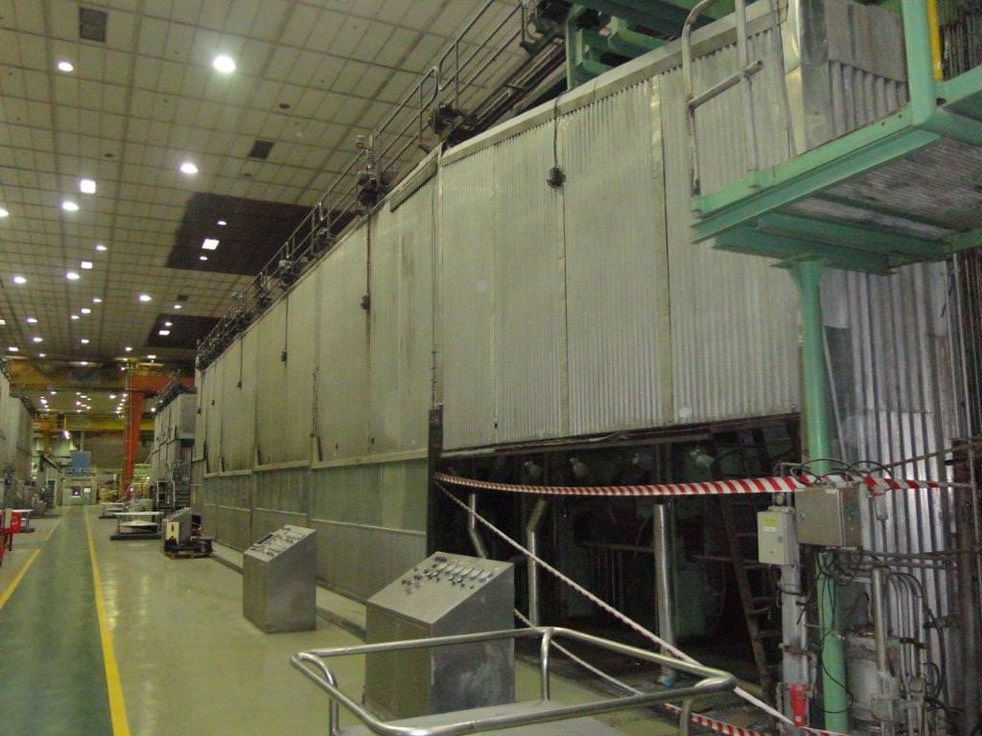

SM2742 - Drier section
  • Traditional FLÄKT fryer hood
  • SLALOM (Uno-run) Group 1
  • Conventional double run (felted)

For Groups 2,3

  • Metso (Valmet) Opti-Sizer, Complete with compact starch preparation ‘kitchen’  Sold
  • After Dryer with single Slalom group followed by double felted group for Curl control
  • Conventional cascade steam  & condensate system
  • Conventional hood exhaust / heat recovery
  • Conventional pocket ventilation system
  • Rope threading
  • Pressure rating 5 bar max
  • 42 cylinders (cans)   1500 mm
  • 5 steam groups


CALANDER

SM2742 - CALANDER
  • Kusters Single Hard Nip (Flexitherm and Hard covered roll) – Installed 2002


Main Machine Drive

  • ABB AC drive, complete, including ABB motors


DCS

  • Metso


MACHINE PULPERS

  • Former / Press – non removable concrete chest
  • Dryer / Calander – non removable concrete chest


STOCK PREP

  • BELOIT softwood DD refiners series 4000 (upgraded 2002) 42”   plates
  • BLACK CLAWSON Softwood Hydra Pulper


APPROACH FLOW

  • CLARK and VICARIO deculator
  • Valmet Head box primary screen, secondary screen and tertiary  Screen Sold


VACUUM PUMPS

  • Machine installed NASH Water-Ring Pumps series 4000 and 6000


ROLLS

  • S/Couch, pick-up and press suction all BELOIT
  • Press S/roll polyurethane cover blind drilled, drilled and grooved



N.B.  Machine Main equipment parts sold and no longer available


  • Some Dryer section guide (screen) rolls
  • Size Press: Metso (Valmet) Opti-Sizer, Complete with compact starch preparation ‘kitchen’
  • S/Press Pulper: Metso (Valmet) Stainless Steel two-rotor unit
