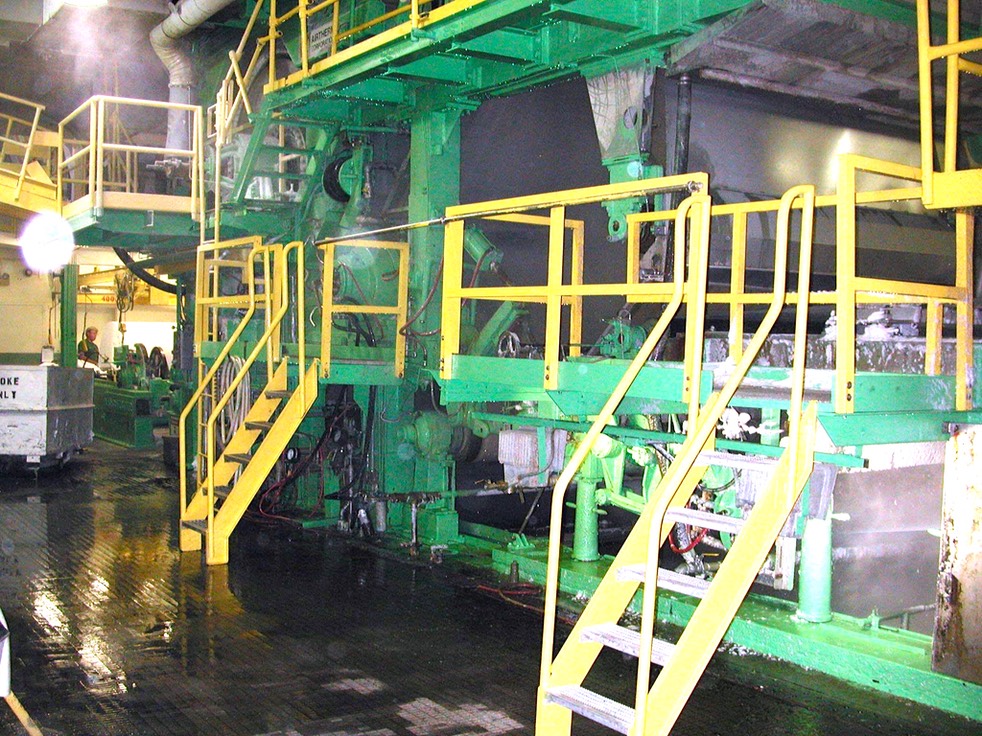

🖥- TISSUE MACHINE, Beloit, trimmed width 2.350mm, 50tpd
PRODUCTION PARAMETERS:
- Speed:1,130 m/min at the Yankee
- 1,100 m/min at the Pope Reel
- Tonnage:50 tpd
- Grammage operated:17gsm
- Crepe ratio:18%
- Trimmed Width: 2,350mm
MACHINE COMPOSITION:

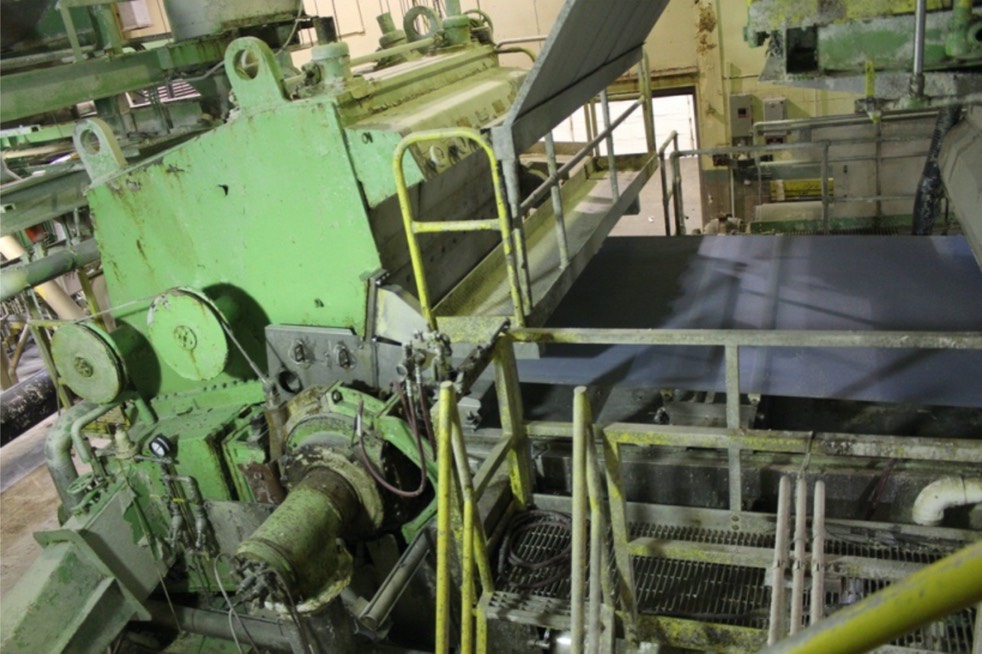

- Headbox:Manchester

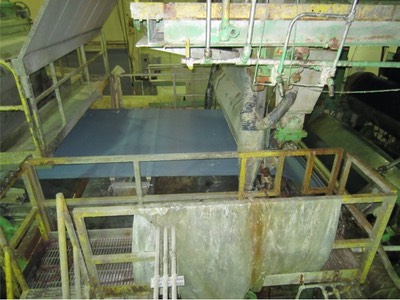

- Fourdrinier:single wire
- Press Section:Twin felt
- Yankee 1 (working): Voith, NB312, 10 Ft. (3.05m) Dia x 113” (2,8700mm) Face, Max Max, Allowed Working Pressure: MAWP 160 PSI (11bar)
- Yankee hood: Airtherm High velocity / High Temperature 426- 480 degC
- 1976 - upgrades 1996
- Converted from oil to natural gas fired
- Burner controls are Honeywell
- Machine controls: Foxboro.
- Main rolls:Suction Breast Roll
- Suction Breast Roll
- Top Press
- Blind drilled Pressure Roll

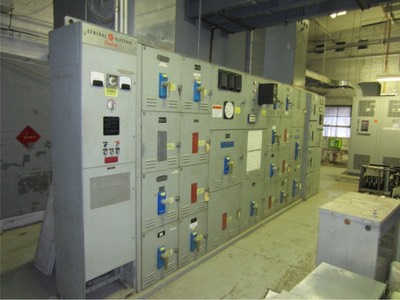

- Controls/Drives:GE DC2000 drives
- DCS:Foxboro IA Series
- Lubricating oil station:
- Hot Air Circulation:
- Heat Recovery System:
- Suction Press Roll:

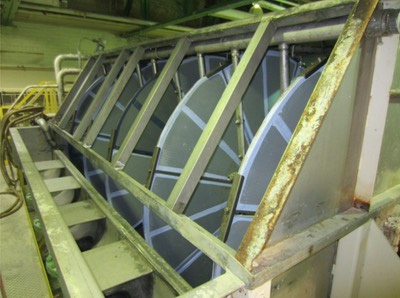

- Saveall:Beloit Polydisc
SPARES:
- Spare paper Machine clothing: circa $150,000 value
- Top press rolls: x 2
- Felt rolls: x 11
- Wringer rolls: x 2
- High temp bow rolls: x 2
- Wire guide / stretch roll: x 1
- Bottom couch roll: x 1
- Wire break rolls: x 3
- Top calender: x 1
- Bottom Calender: x 1
- Suction press rolls: x 2
- Pressure rolls: x 2
- Breast roll: x 1
- Low temperature bow roll: x 1
- Air shafts: x 6
- Reel shaft: x 1
- Reel gear box: x 1
- Couch gear box: x 1
- DO refiner Element (spare shaft) & plates: x 1
- Shaft & basket/foils for bird screen: x 1
