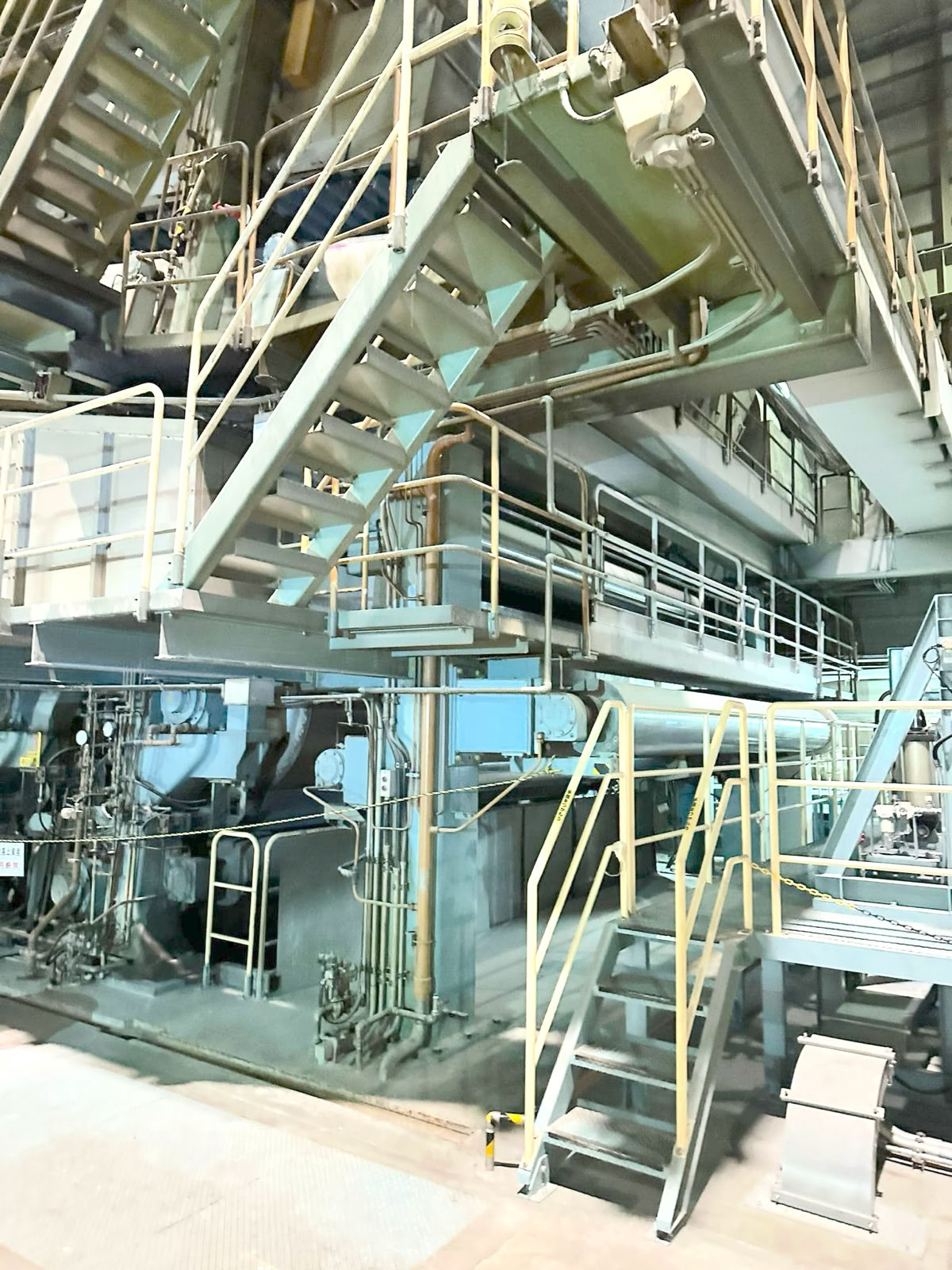

We are working with a 5.15m, 500 tpd high-speed, twin-wire machine with a modern Valmet Optiflo headbox (2019) and Voith shoe press (2011), producing coated papers.

This paper machine is suitable for conversion to lightweight packaging grades (40–100 gsm).

This i5.15m trim and 500 tpd paper machine is a solid, mid-large scale, production line.

Pleas note that :

 1) Twin wire forming section is already suitable

 2) Press section has already been upgraded

 3) Conversion focus will be primarily in wet end / stock prep alignment

 4) This paper machine provides a significantly lower capex route compared to a new machine, while achieving competitive production speeds.

Modernised key sections:

        * Shoe press (2011)

        * Headbox (Valmet Optiflo 2019) ✅ BIG plus

        * Winder (2018)

        * Twin wire former (BellForm III) → suitable for packaging conversion

        * Full coating + calender capability → flexible

Please address confidential enquiries to: Mark@saxonmachinery.com

Basic Specifications

Width at pope:   5,150mm Paper Machine

Manufacturer:  VOITH / VALMET

Grammage:        40-100gsm

Installation year: 1990

3P Shoe Press(Sleeve resin):Voith ,Year 2011

Mothballed: 2023

Production capacity: 500ton/day

Paper: Coated paper (Kraft Paper production is possible.)

Design speed: 1400m/min

Valmet ‘PTIFLO’ Head box: Retrofit, 2019

Valmet “BellForm Former III”  Twin Wire parts

Top Wire: 5800mm X 43m (Length)

Bottom Wire: 5800mm X 19m (Length)

Press part

Manufacturer: VOITH

Type: separate type Duo Centry II +Straight through 4P+

Dryer

Manufacturer: VOITH

Closed gear drive type

GRC/ Size Press

Calendar

Soft (super) calendar x2 sets

Line pressure: design 200kg/cm

Top roll (VARIOSWR)

Bottom roll (Heating)

Thermo jet: impact system

Pope Reel

Surface reel

Maximum winding diameter: 3000m

Winder

 Retrofit 2018

Manufacturer: VALMET

Single dram surface reel

Line Length Approx.165m

BM SYSTEM

The number of frames: 2

Sensor: BMAF/ BMCCr

Defect detector

Manufacturer: Omuron -–Model: 2K40

Manufacturing year: 1990

Electric supply

Capacity: 5,800KW

Frequency: 50Hz

Blade Coater

Manufacturing year: 1989

Coating width: 5050mm –Coating mass: 7~15g/m2 (one side)
