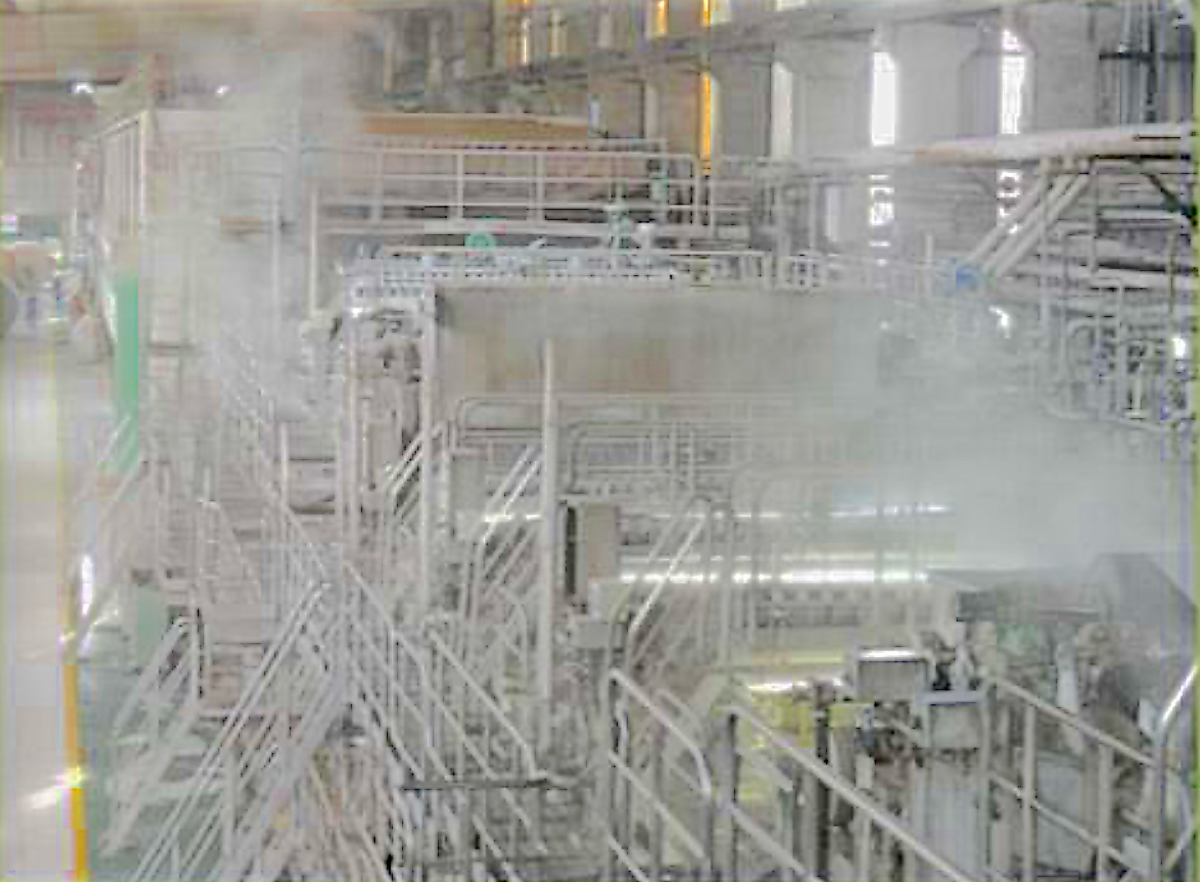

SM4056 – COATED FOLDING BOXBOARD MACHINE 315 TPD

Multi-Layer • Triple Coated • Packaging Grades



Exclusively Offered By Saxon Machinery Limited United Kingdom



Executive Summary

Saxon Machinery is pleased to exclusively offer this high-quality coated folding boxboard production line designed for the manufacture of premium packaging grades including pharmaceutical cartons, food service packaging, and general consumer packaging applications.

The machine combines multi-layer forming capability with advanced coating flexibility and extensive modernisation history from internationally recognised suppliers including Kobayashi and Voith.

The production system has been configured to efficiently process both recycled and virgin fibre furnishes while maintaining high-quality surface characteristics suitable for demanding coated packaging applications.

With triple top-side coating capability, broad grammage flexibility, and optimised furnish layering, the machine represents an attractive production platform for manufacturers seeking cost-efficient premium packaging board capacity.

Key Features

Approximate production capacity: 315 TPD

Trim width:  3,960 mm

7-former multi-layer configuration

Triple coated top surface capability

Optimised furnish layering design

Virgin fibre top liner capability

Recycled fibre utilisation flexibility

Broad grammage operating range

Major rebuilds by Kobayashi and Voith

Suitable for premium coated packaging grades



Technical Description

Stock Preparation System

The stock preparation system consists of five separate stock systems, including three lines equipped with enhanced cleaning capability designed to process lower-grade recycled fibre efficiently.

The top liner and upper underliner layers utilise virgin pulp furnish to achieve high surface quality and improved printability, while the remaining layers are optimized for recycled fibre utilization.

The system delivers highly cleaned and refined furnish suitable for premium coated board production.

Board Machine Specifications

Item                                    Description

Original Design                                     ER-WE-PA

Major Rebuild Engineering                   Kobayashi

Year Originally Manufactured               1970

Design Speed                                       300 m/min

Operating Speed                                  70–280 m/min

Untrimmed Width                                  4,250 mm

Trimmed Width                                     3,960 mm

Forming Section                                   7 Formers

Coating System                                    Multi-stage online coating

Product Range                                     Folding boxboard & packaging grades

Grammage Range                                225–550 gsm

Bulk Factor                                           Approx. 1.3

Major Upgrades

1989 — Kobayashi Rebuild

    *     New wet end installation

    *    Press section rebuild

    *    Operational modernisation

2007 — Voith Coating Upgrade

    *    Major coating system rebuild

    *    Enhanced multi-layer coating flexibility

    *    Colour kitchen modernisation

    *    Prepared for specialty and barrier coating applications



Board Structure & Product Capability

The machine configuration provides a balanced combination of production flexibility, coating capability, and furnish optimization suitable for modern packaging board markets.

Typical End Products

    *    Pharmaceutical packaging

    *    Food service packaging

    *    Folding cartons

    *    Consumer packaging grades

    *    Coated packaging applications

Operational Advantages

    *    Flexible furnish utilisation

    *    Premium coated surface capability

    *    Multi-layer board optimisation

    *    Broad GSM operating range

    *    Reduced virgin fibre dependency

    *    Capability for specialty coating development

Additional Information Available Upon Request

    *    Detailed equipment list

    *    Machine layout drawings

    *    Additional photographs

    *    Rebuild documentation

    *    Utility consumption data

    *    Operating history

    *    Inspection arrangements



Inspection & Availability

Machine inspection arrangements can be coordinated for qualified buyers subject to seller approval.

Notice

This document has been prepared for preliminary information purposes only for qualified prospective purchasers.

All information is believed to be accurate but remains subject to verification. The offering remains subject to prior sale, modification, or withdrawal without notice.
