SM4013

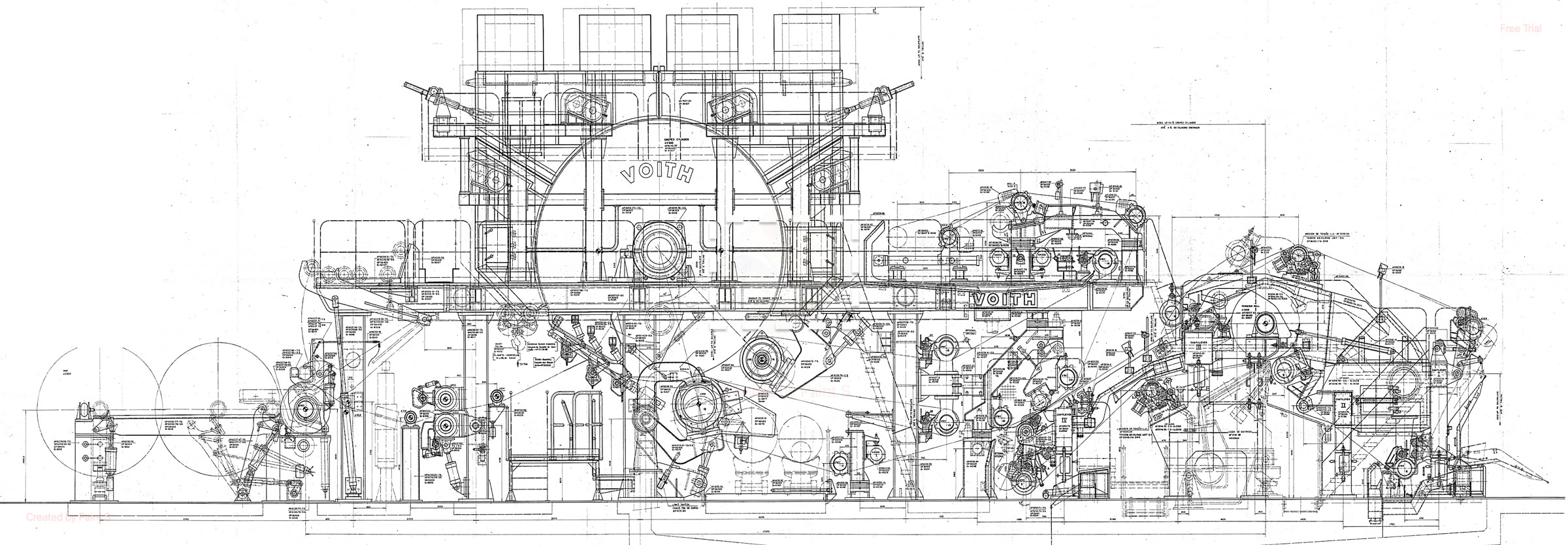

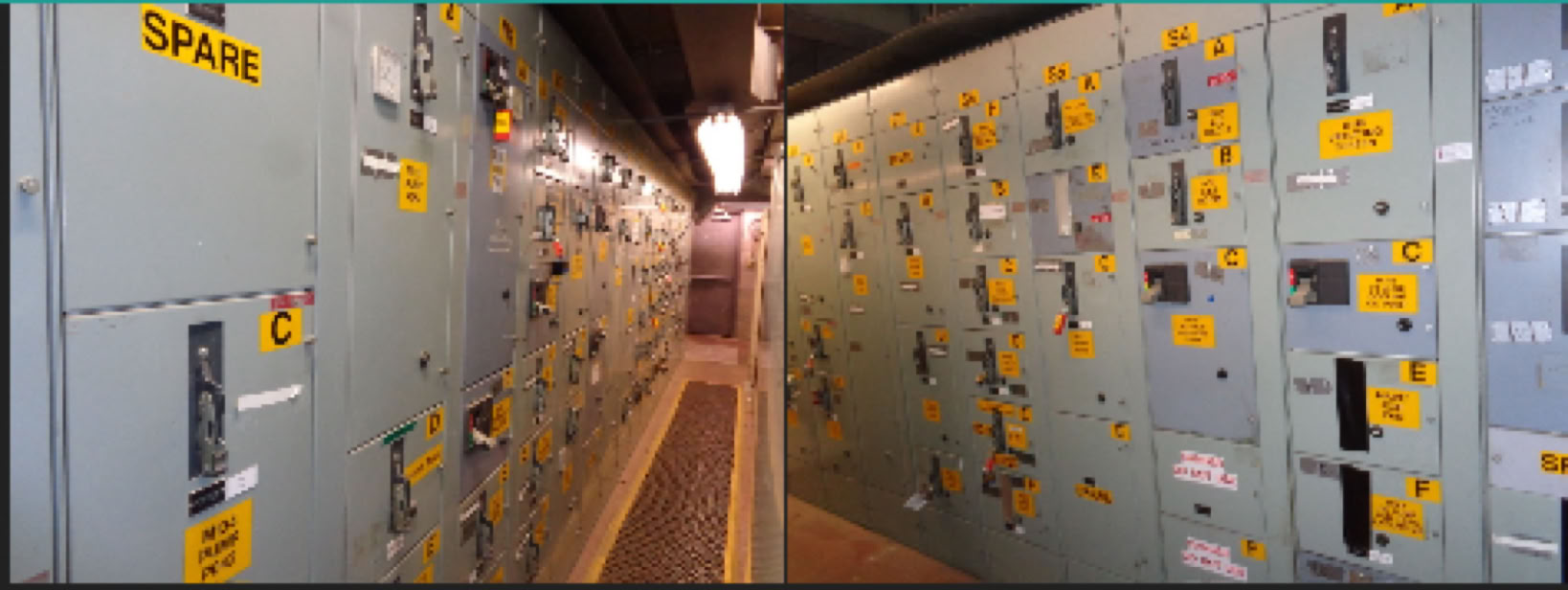

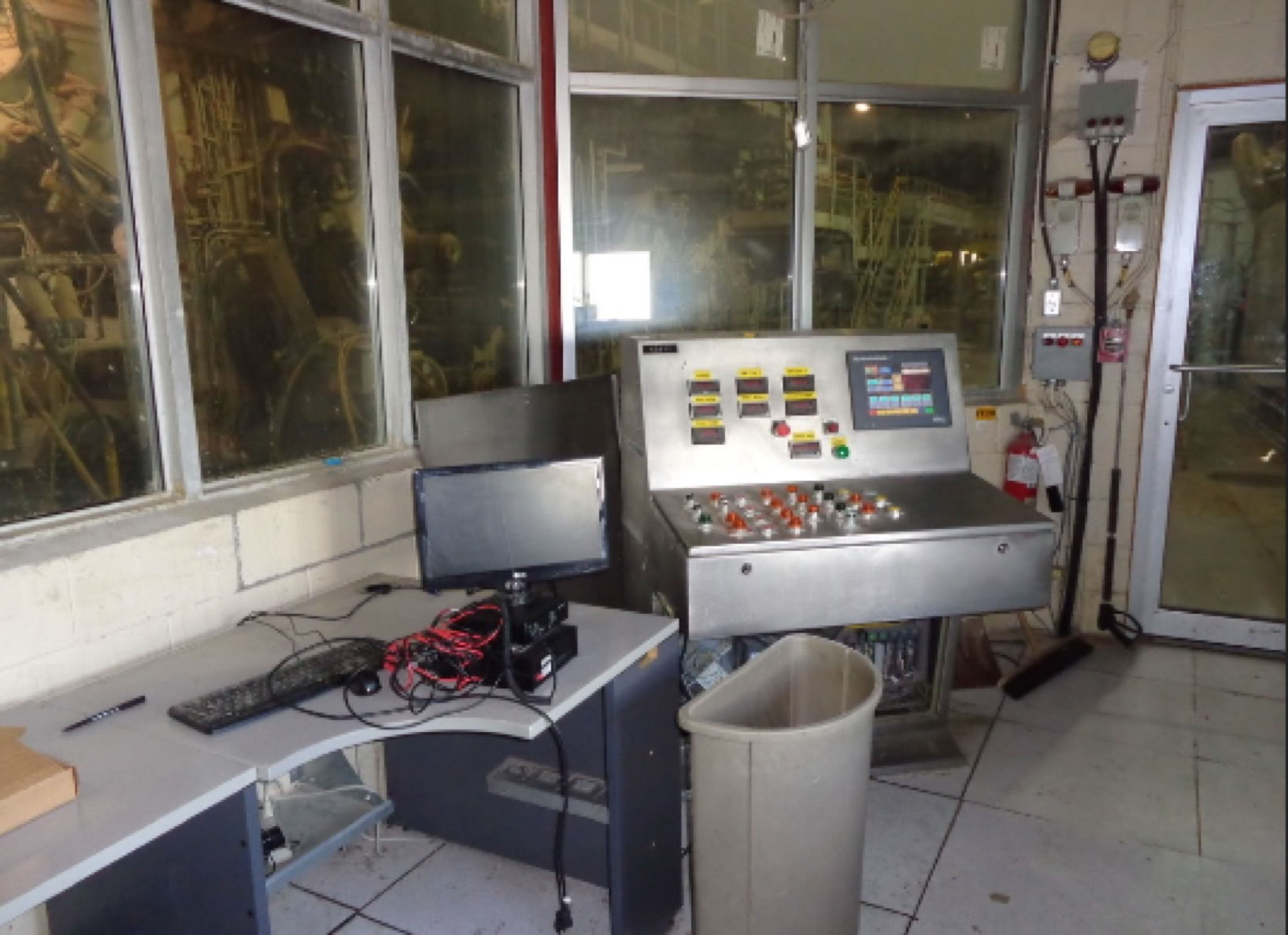

SM4013 - Tissue Machine - Duo-former Crescent former 2,900mm wire width

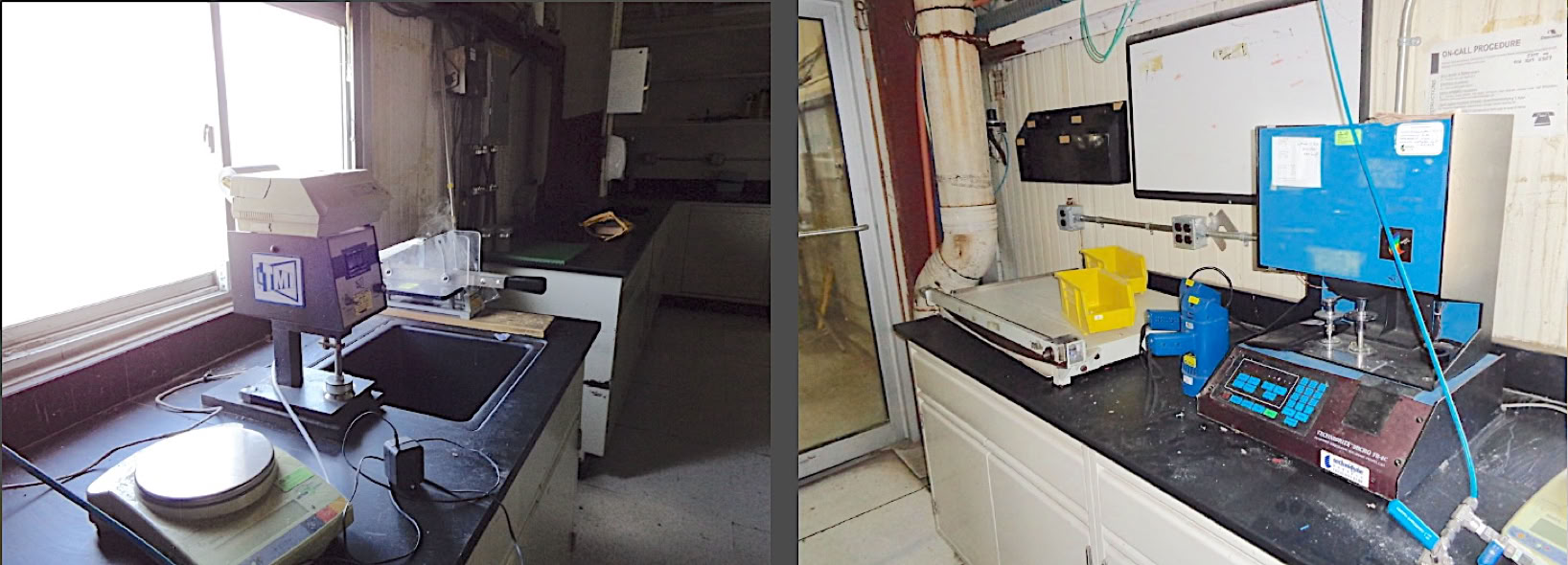

With Stock Preparation & Lab - Production 12 gsm to 40 gsm - 80 tpd

This tissue machine is from the world famous manufacturer VOITH

It is sold complete with the stock preparation system dismantled and ready to professionally load into customer provided containers. The machine is reported to have been an excellent running machine

The machinery has been professionally dismantled by a Canadian Engineering company (at a cost of $700,000). The match marking has been done professionally and is properly and fully documented. Since dismantling the machine is stored in a secure and environmentally controlled storage including the Yankee cylinder which has had the face properly protected and The yankee has two heaters on 24 hours a day to ensure it is kept free from atmospheric moisture. The yankee is secure on a purpose built steel shipping steel (as it would have originally come from Voith). The same Canadian company is available for the re-erection if required.

The reason this machine is for sale is that it was located on leased land and the land lease was not renewed.

Tissue Machine general technical specifications:

Web width: 2,900 mm

Design Speed: 1,800 m/min

Operating Speed: 524 - 1,677 m/min

Basis weight: 12 - 40 gsm

Products: Creped and tissue papers

Production capacity: 80 tpd

Headbox consistency: 0.6 - 0.26%

Dryness at Reel: 94%

Pond Width: 2,770 mm

Number of slices screws: 20

Yankee general technical specifications:

Working pressure: 8 bar

Hydraulic test pressure 16 bar

Diameter 4,500 mm

Shell Width: 3,230 mm

Shell total thickness: 59 mm

Shell Material: VZ 4

Upgrades:

in 2015 the Tissue Flex was removed and rebuilt.

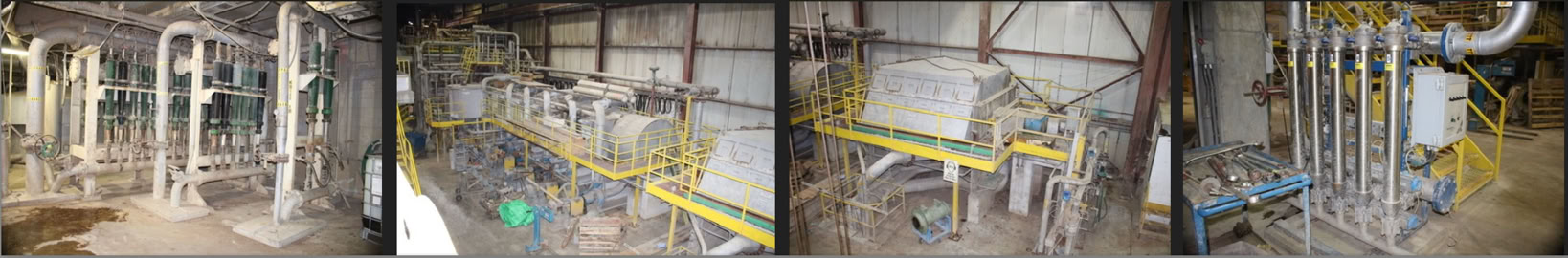

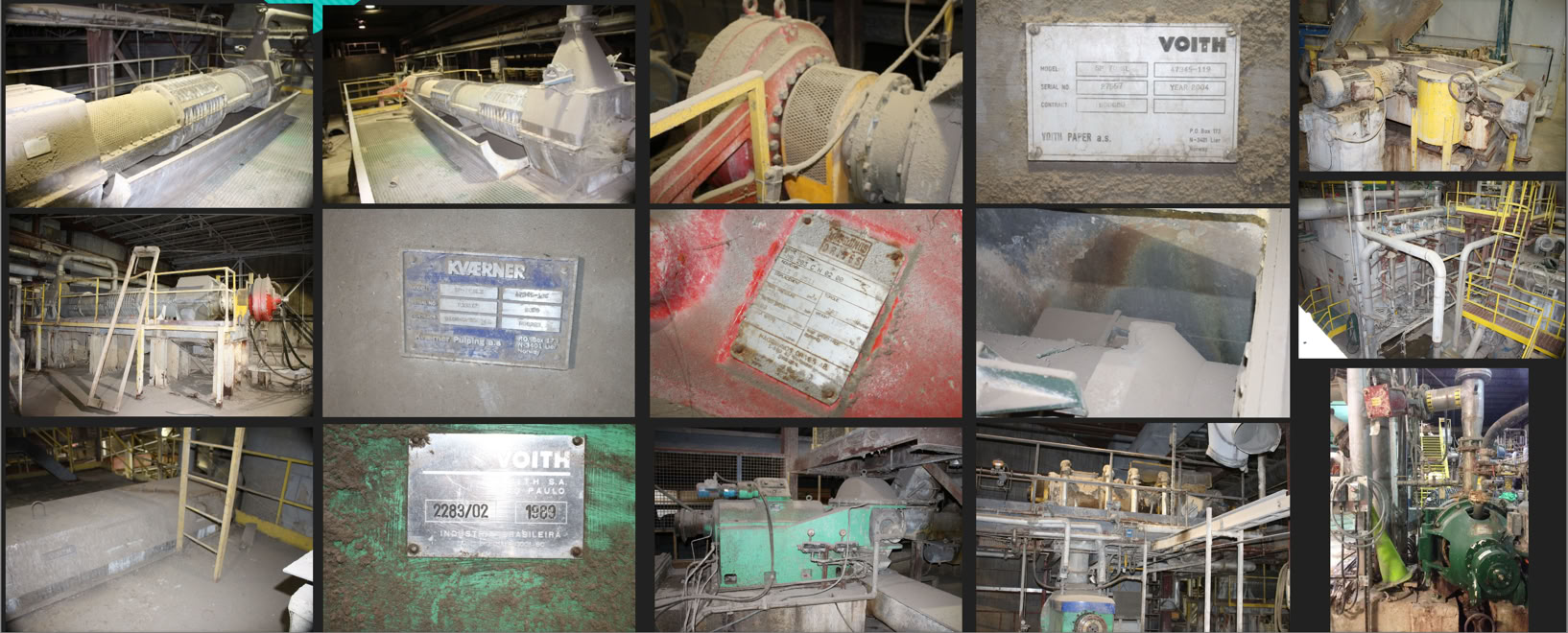

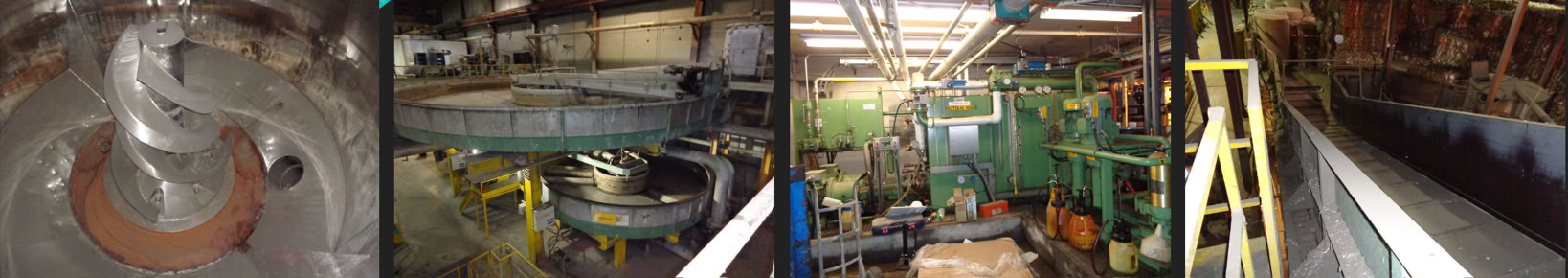

Tissue Machine Stock Prep. includes various equipment and processes:

1. Belt Thickener Type M2

This equipment is used to remove water from the stock, increasing its consistency from 3.5% to 20-30%. The stock is diluted and pumped to the belt thickener, where it flows through a distribution pipe into the inlet box. A web is formed between the facing and backing wires, guiding the stock through the presses.

2. Centrifugal Cleaner R

3. Centrifugal Cleaner R & E

4. Centrifugal pump DK

5. Centrifugal pump L

6. Chemical mixer:

7. Contaminex Type CMS, Size 10-40

8. Conveyor

9. Disc Disperger 10 ZSE (Voith)

This equipment is used to disperse impurities, such as hot melts, "Stickies," and latex, into fine, colloidal particles in the discharge slurry. The thickened stock from the belt thickener is transported through a heating screw to the feed screw of the 10ZSE. The stock is then expelled by the impeller in a radial manner towards the outer edges of the de-fibering discs. The intensity of de-fibering can be adjusted by changing the clearance between the discs.

10. Disc filter (6 disc):

11. Double Disc Deflaker Voith (Type 1E, 2E)

12. Double Disc refiner VOITH SDM 0-4

13. Drainator

14. Flotation (Mixing Stage, Primary Stage, Secondary Flotation stage)

15. High Consistency Centrifugal

16. High Consistency Purifier:

17. Hydro disc:

18. Mini sorter Size:

19. Primary Cleaners (25 KS 160/6 E Cleaners)

20. HDC Pulper: This pulper is used to create a slurry consistency in the range of 10- 14%. It consists of a helical rotor and a tub with specific dimensions. The motor used is 700 HP.

21. Quick Mixer

22. Retention Tank

23. Secondary Cleaner

24. Spectro Screen Size 13

25. Spectro Screen Size 23

26. Stock & Water System

27. Tertiary Cleaner:

28. Turpak Speed Reducers

29. Vertical Screens 10, 11, 12, 13, & 103

30. Vertical Screens 20 & 21

31. Vertical Screens Size 30...5 & 35,1

32. Vertical Screens 500 & 1000

33. Water Ring Vacuum Pump (Type 15E): This pump serves as a vacuum source, with two positions:

Position 1 has a pressure of 5mWG and an air flow rate of 19.98 m3/min, while Position 2 has a pressure of 3mWG and an air flow rate of 42.63 m3/min.
