SM2745 - EXCLUSIVE AGENCY

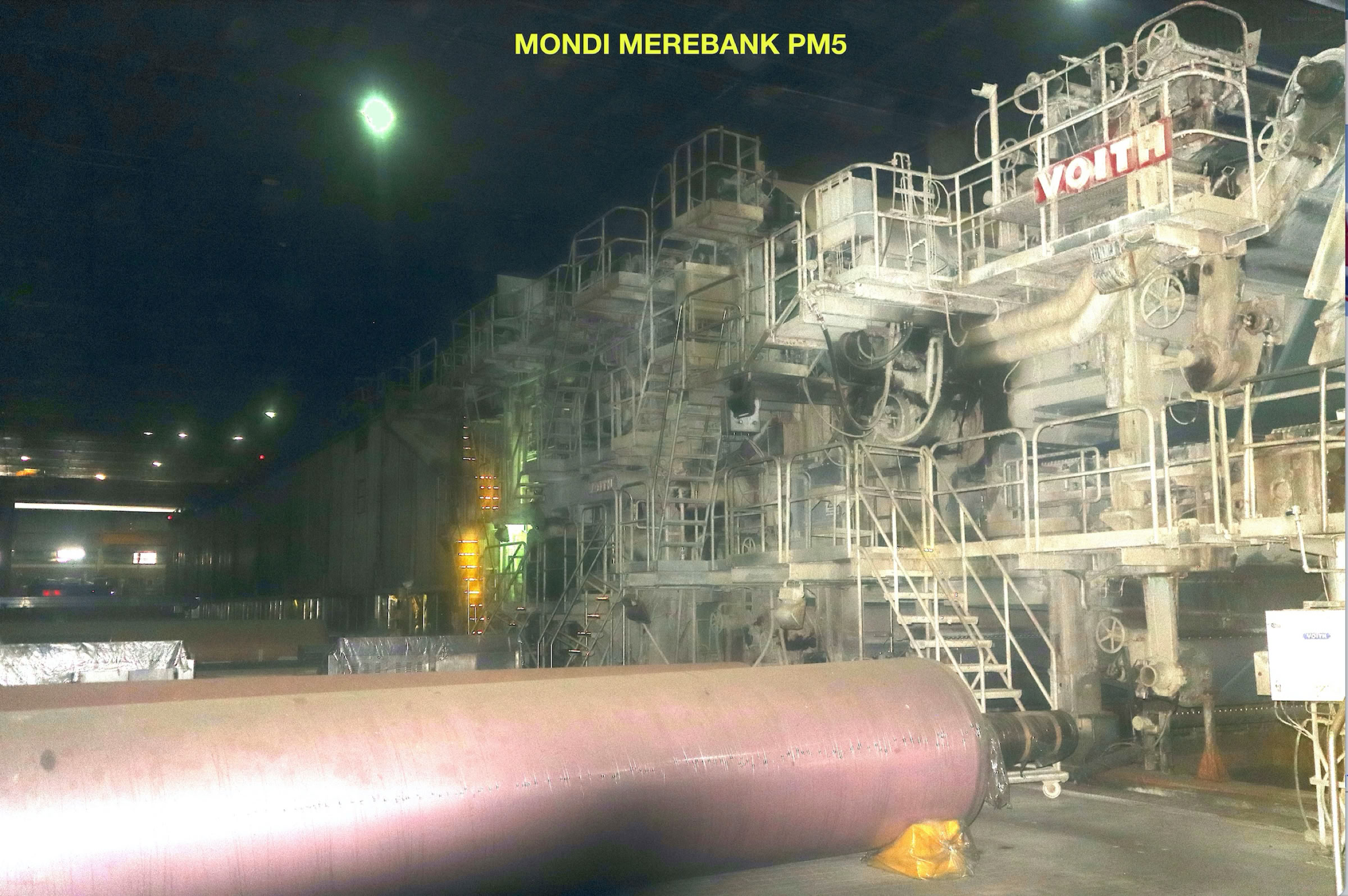

5,680mm, Paper Machine, for Newsprint, White Paper & light board
Production : Newsprint - white paper
Tons per day: 310 @ 48.8gsm (with small work could produce 140 gsm board)
Original installation and start up 1980
Width (un-trimmed) : 5,680mm
OPERATING SPEED: 875 m/min

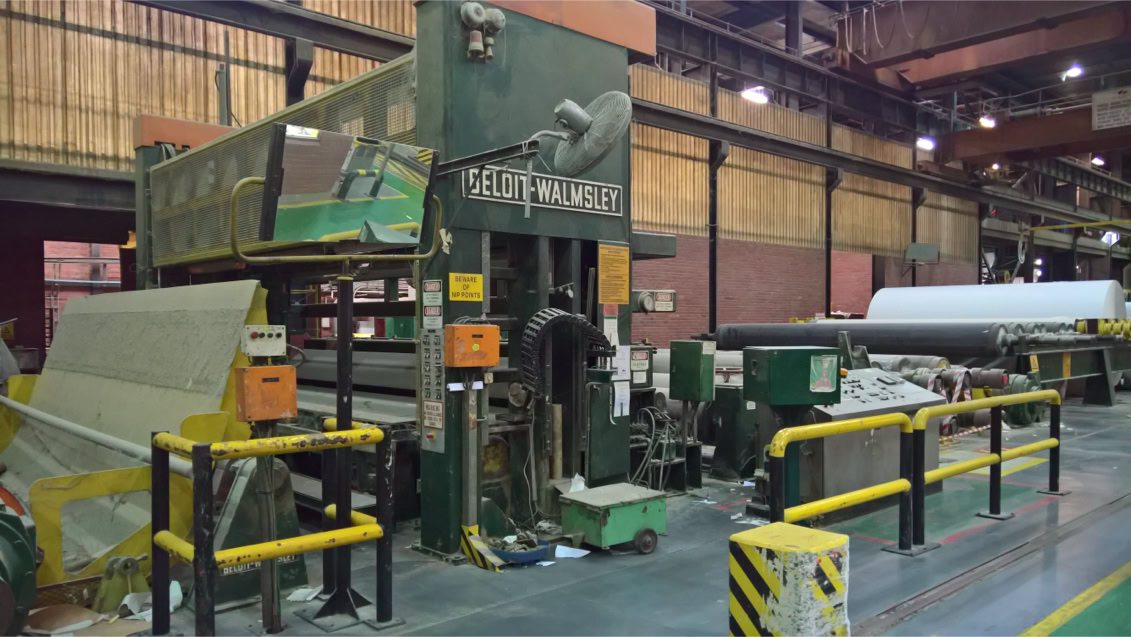

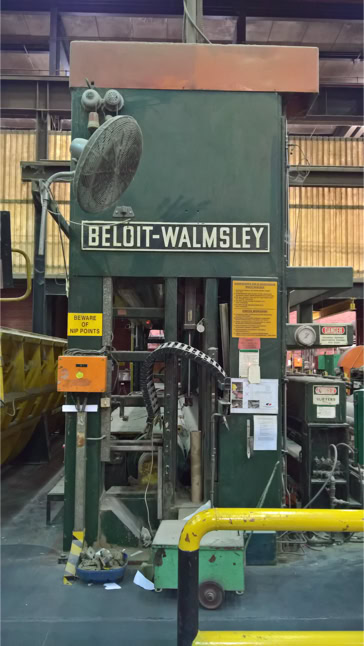

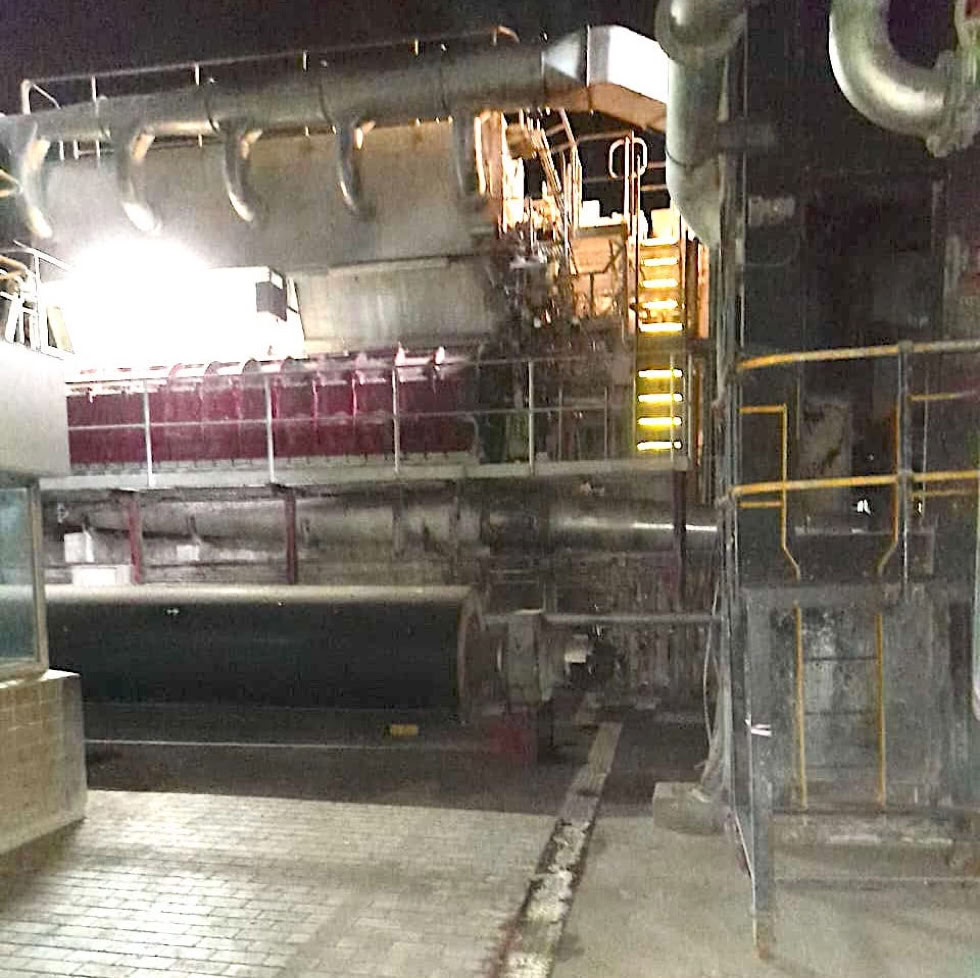

HEADBOX

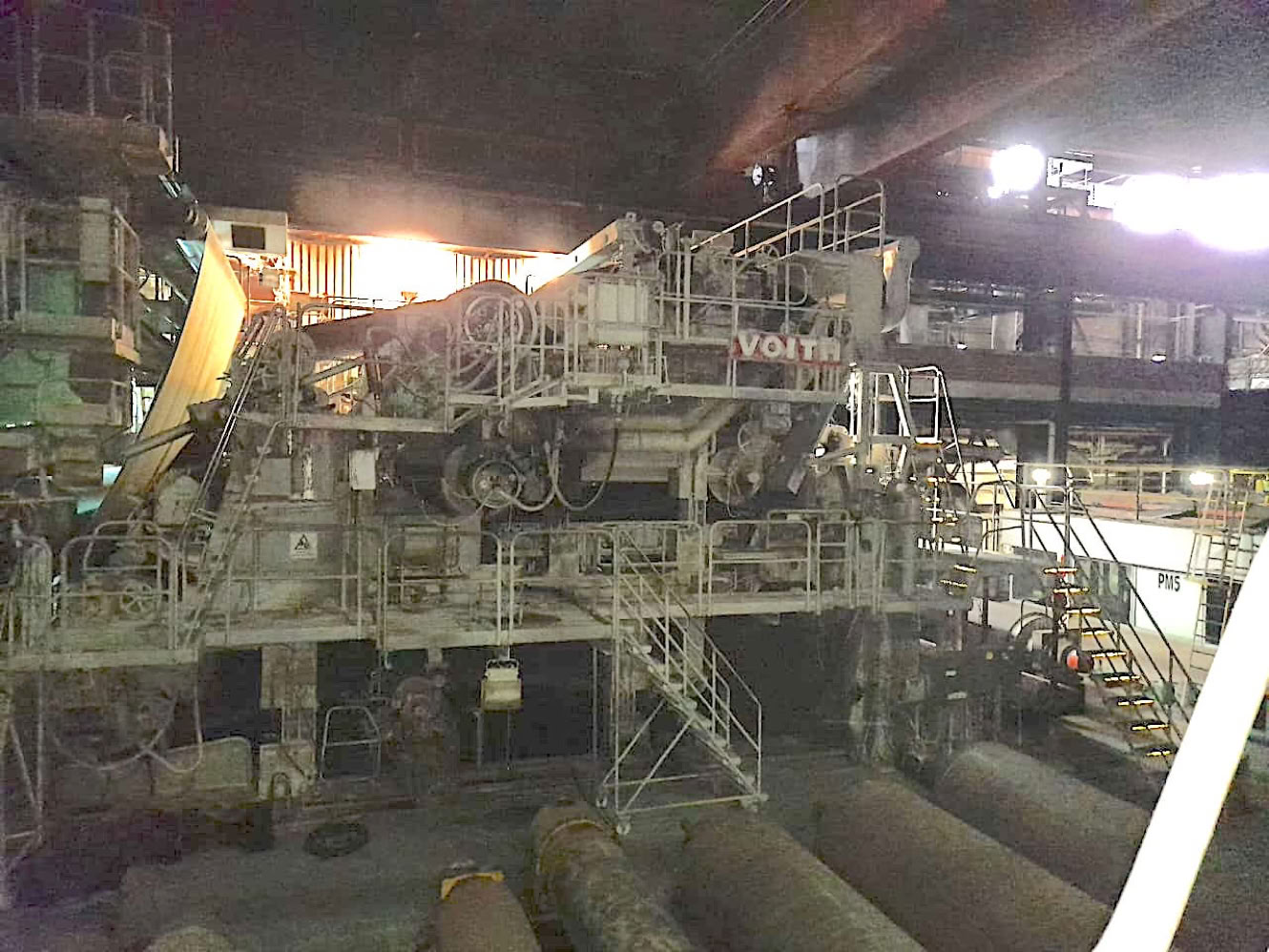

FORMING SECTION

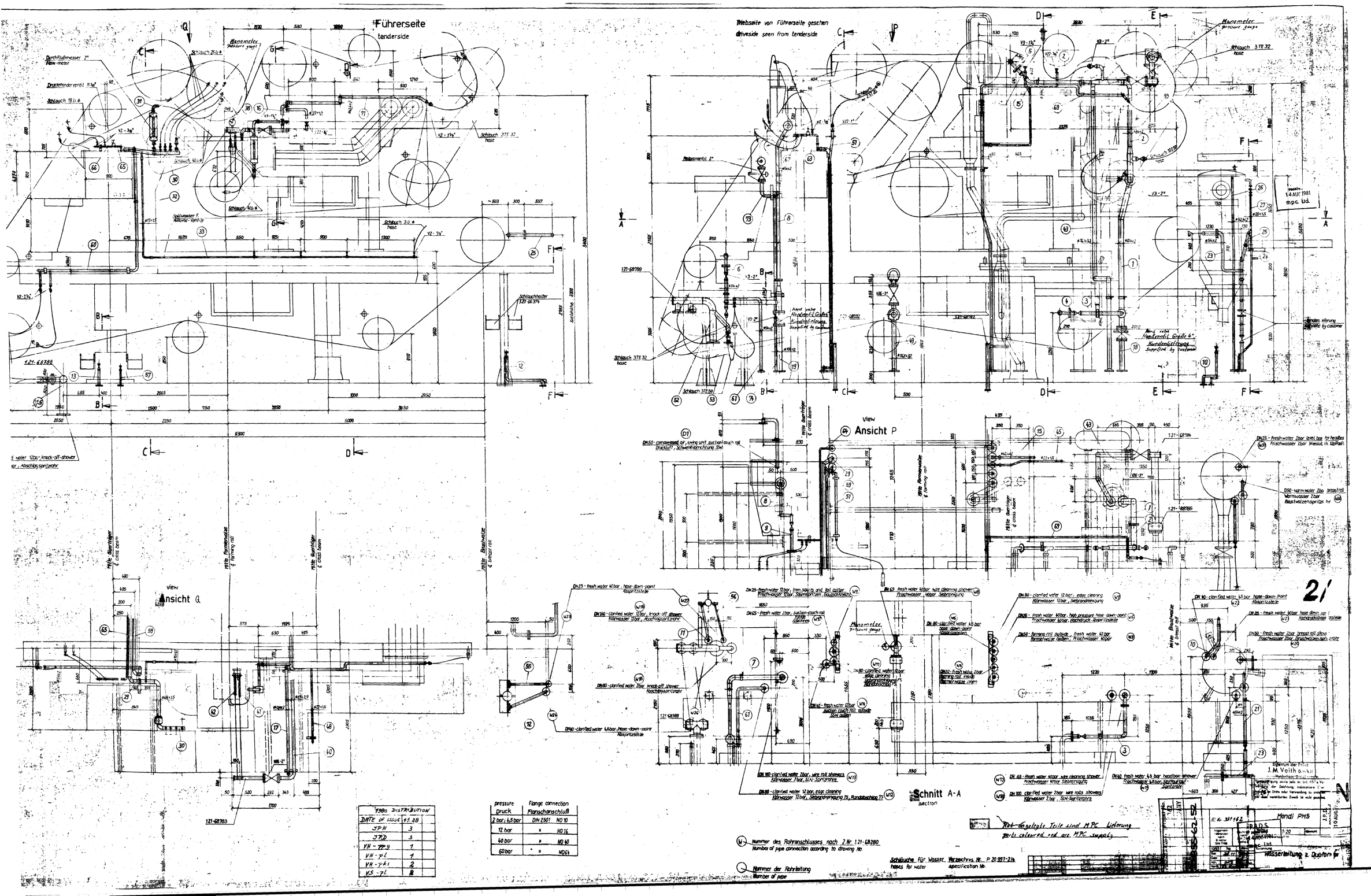

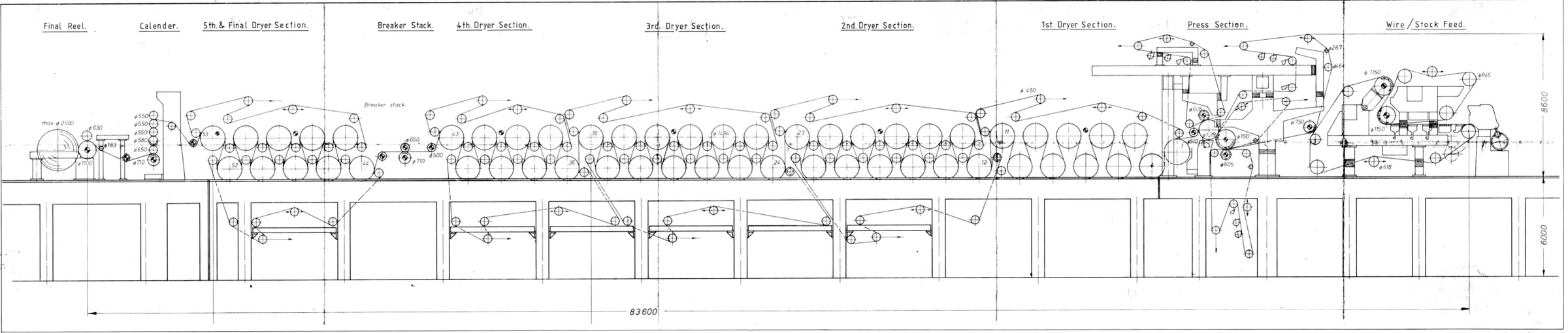

SM2745 WATER PIPE & DUOFORM DWG

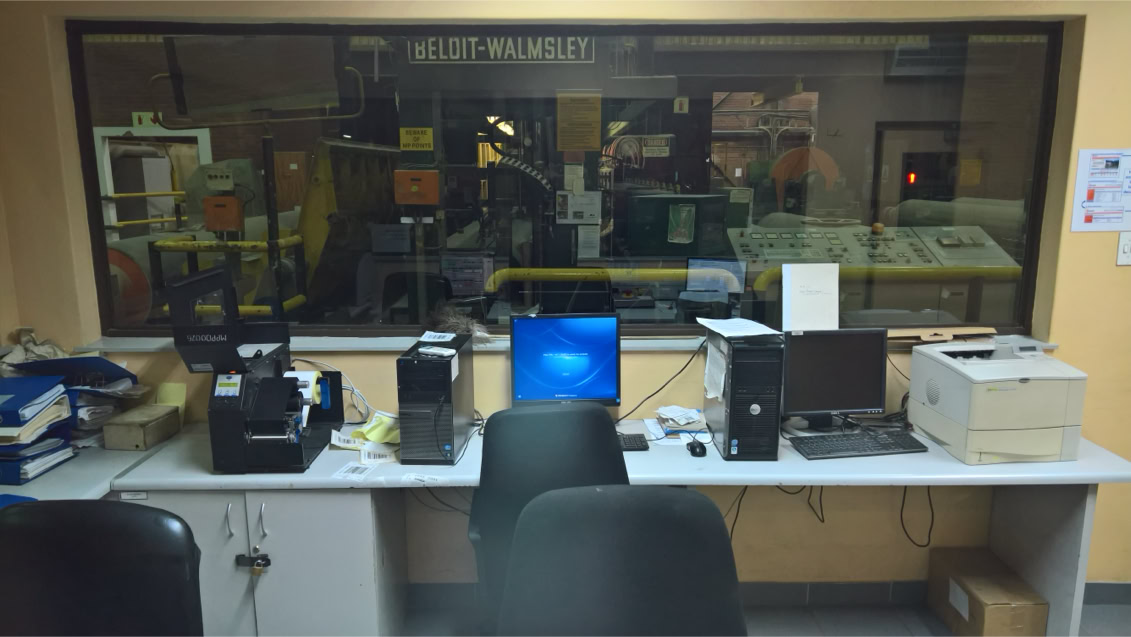

The Paper Maker’s control suite

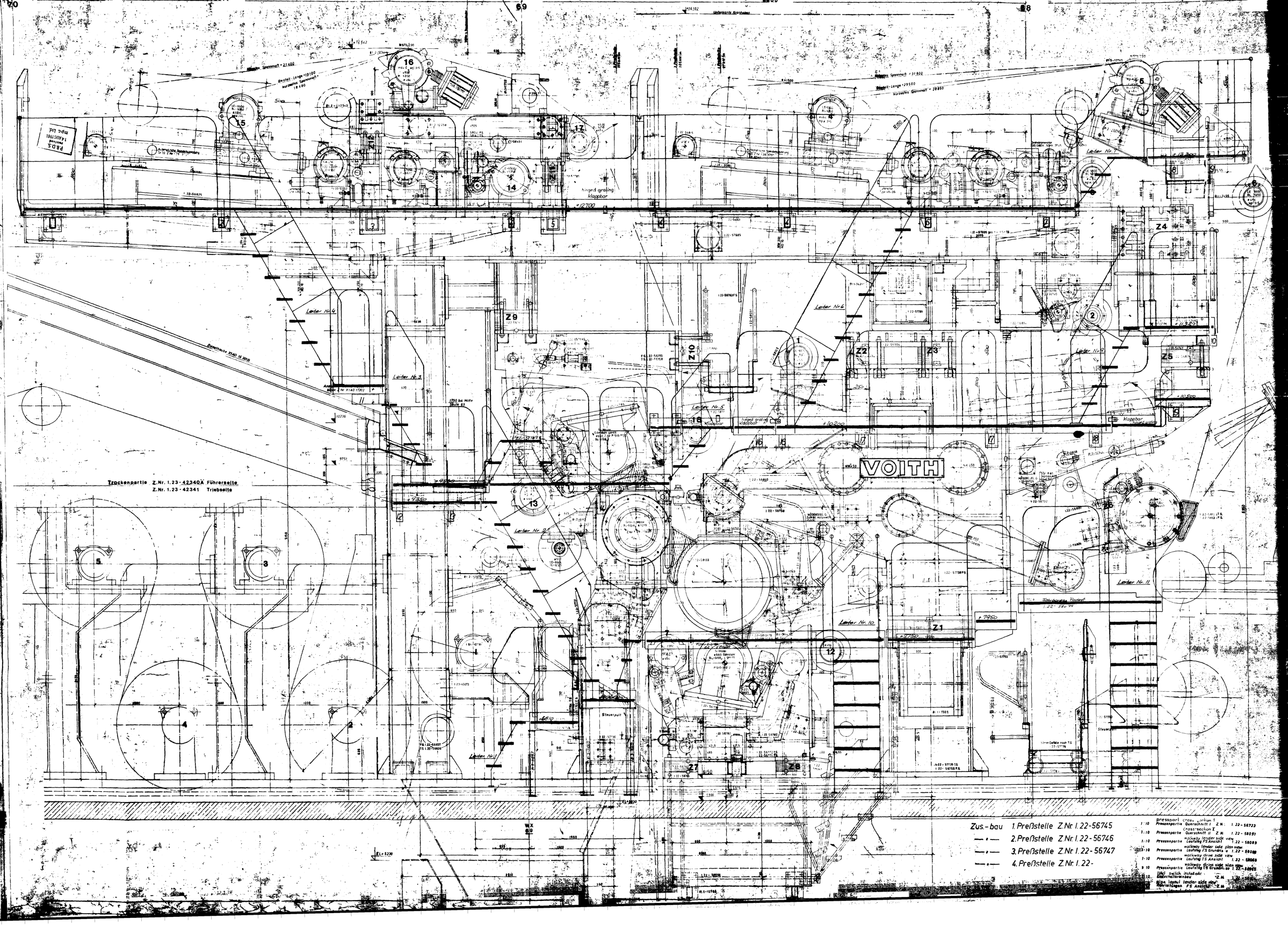

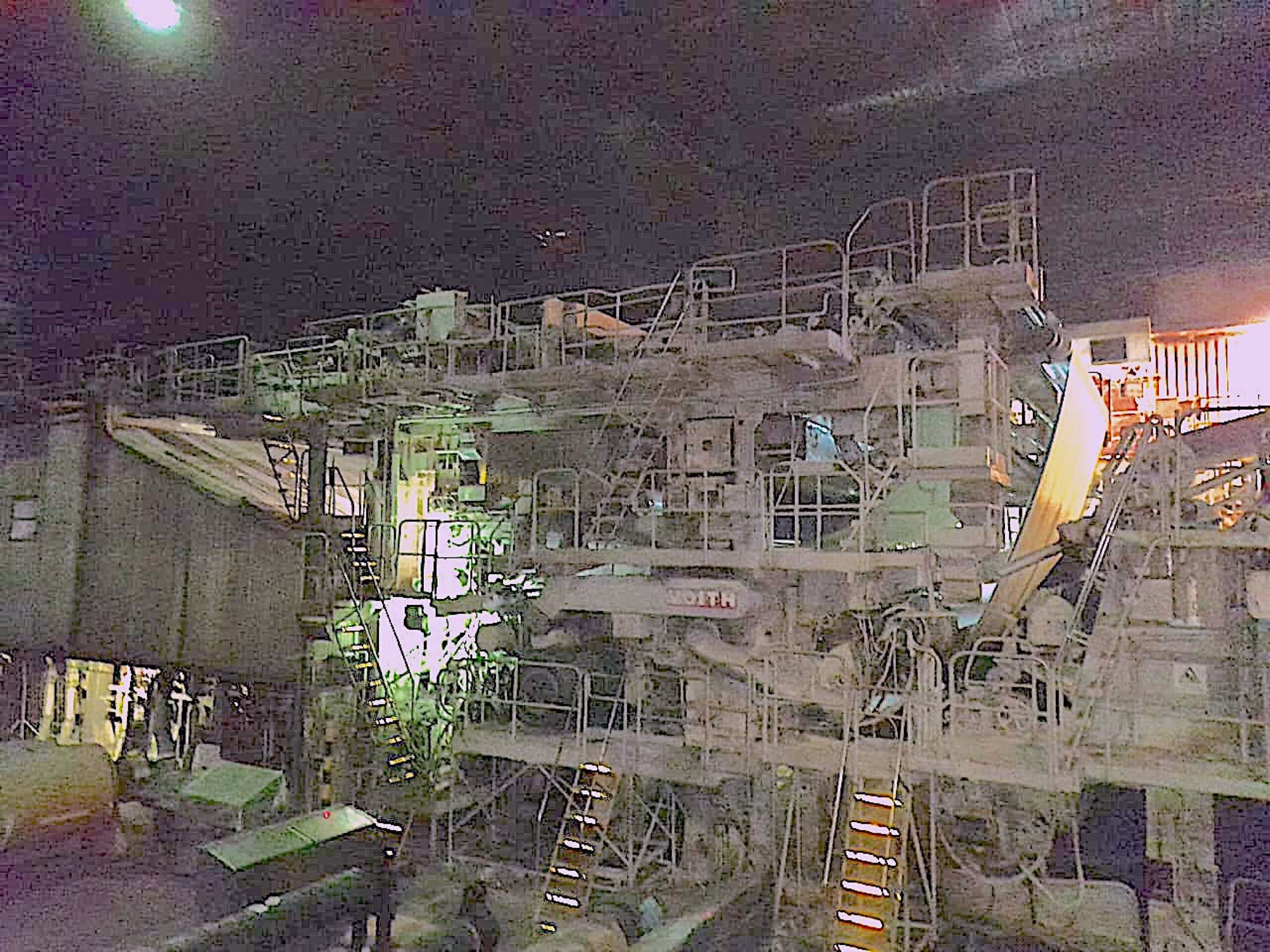

PRESS SECTION

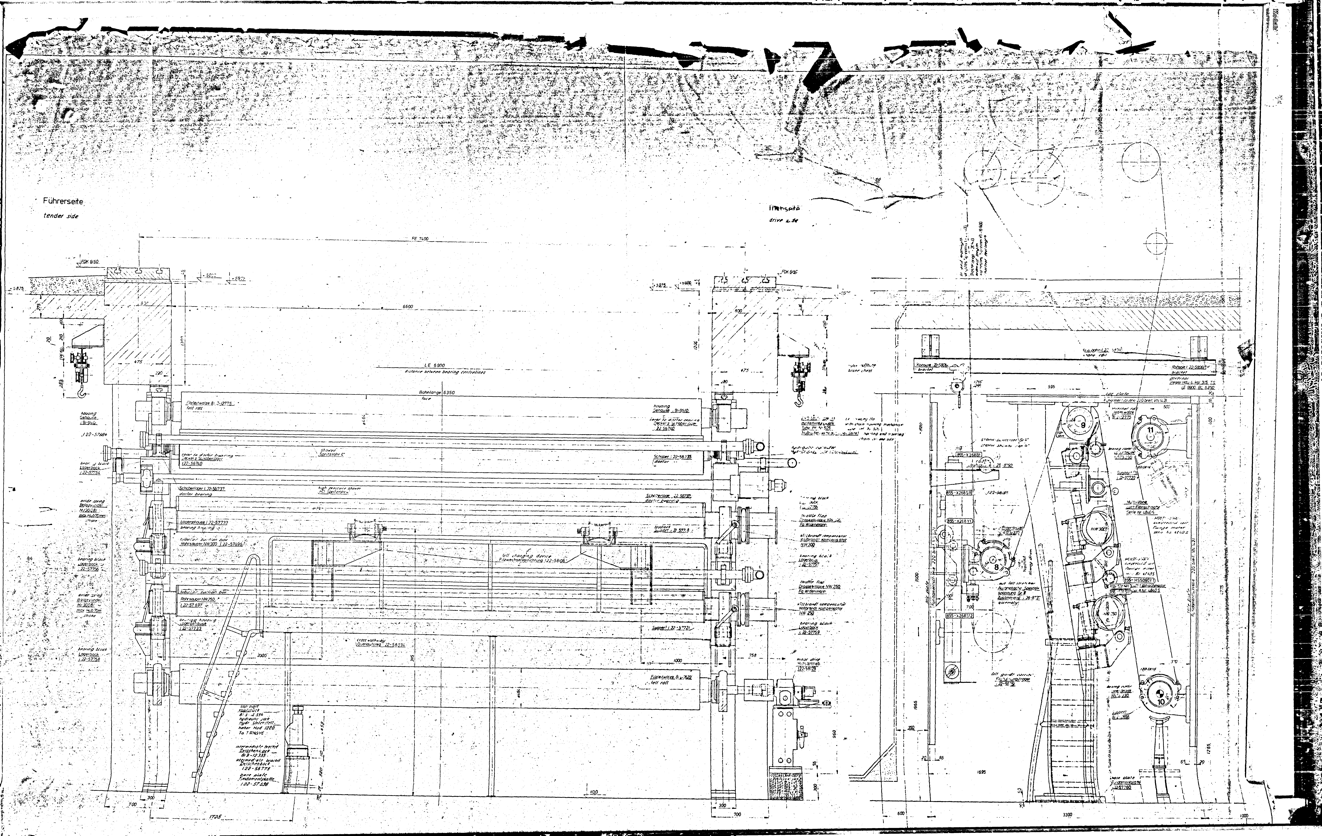

Felt Cleaning
PRESS SECTION

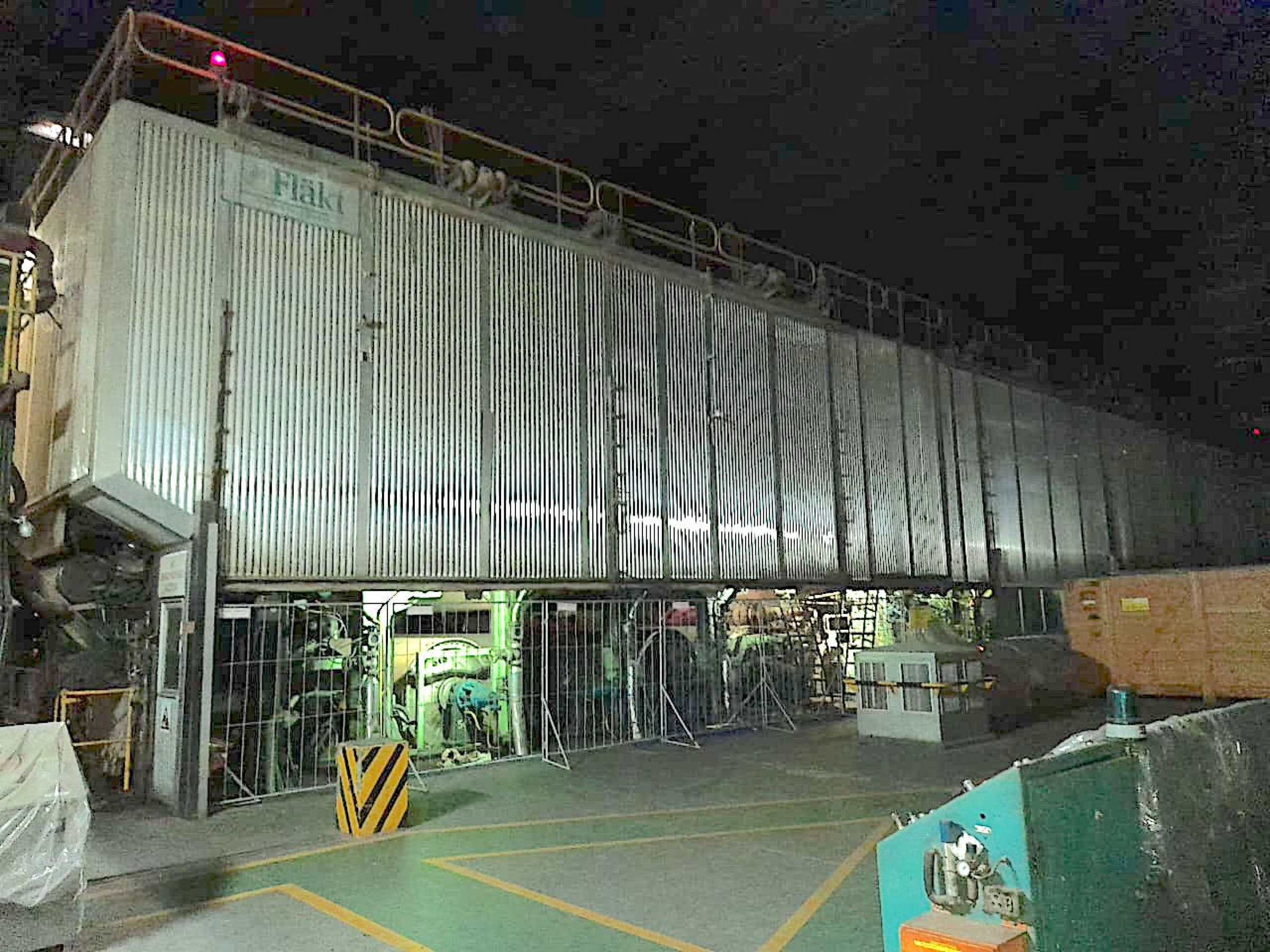

DRIER SECTION (Ttender side)

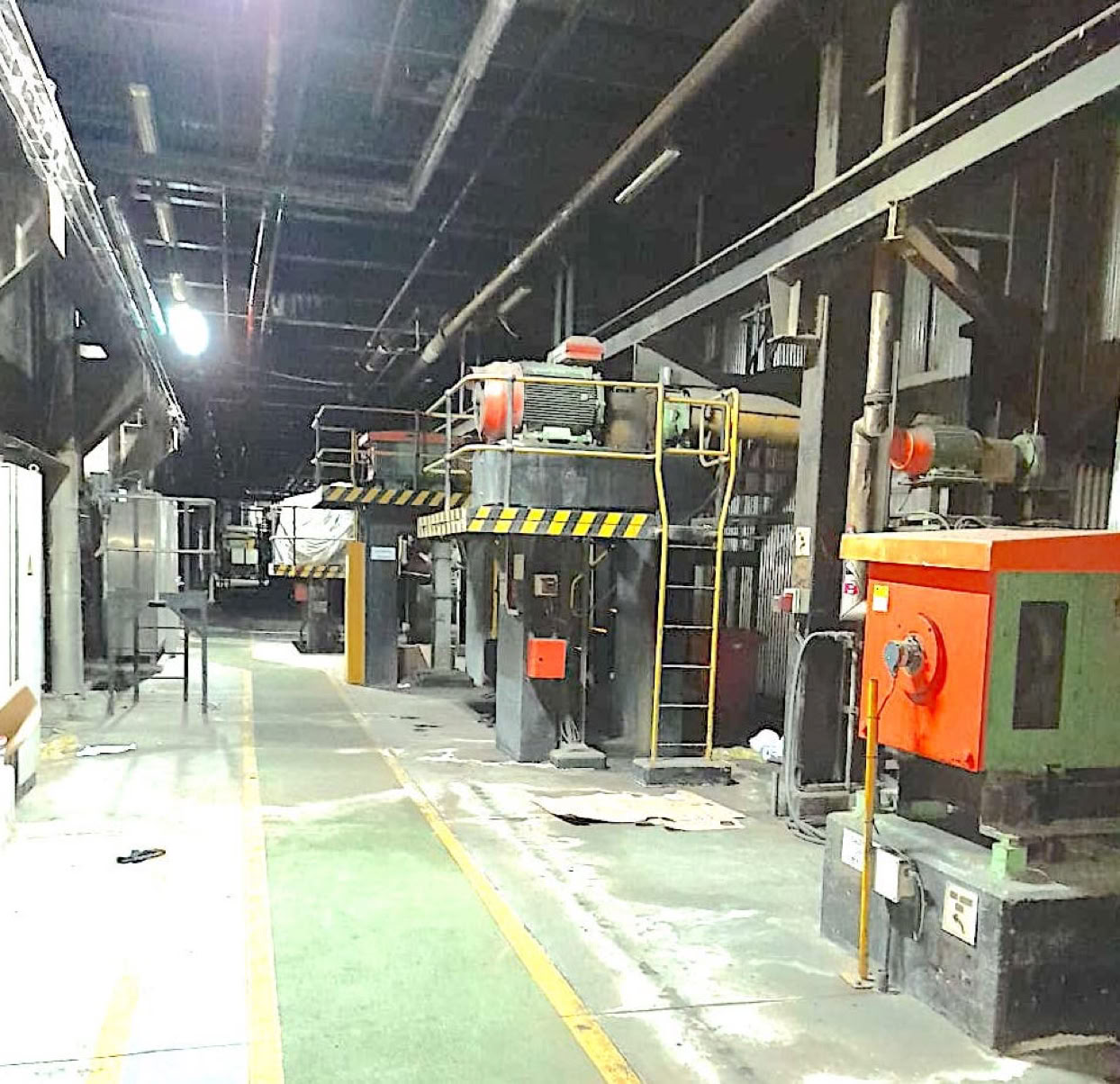

DRIER SECTION (drive side)

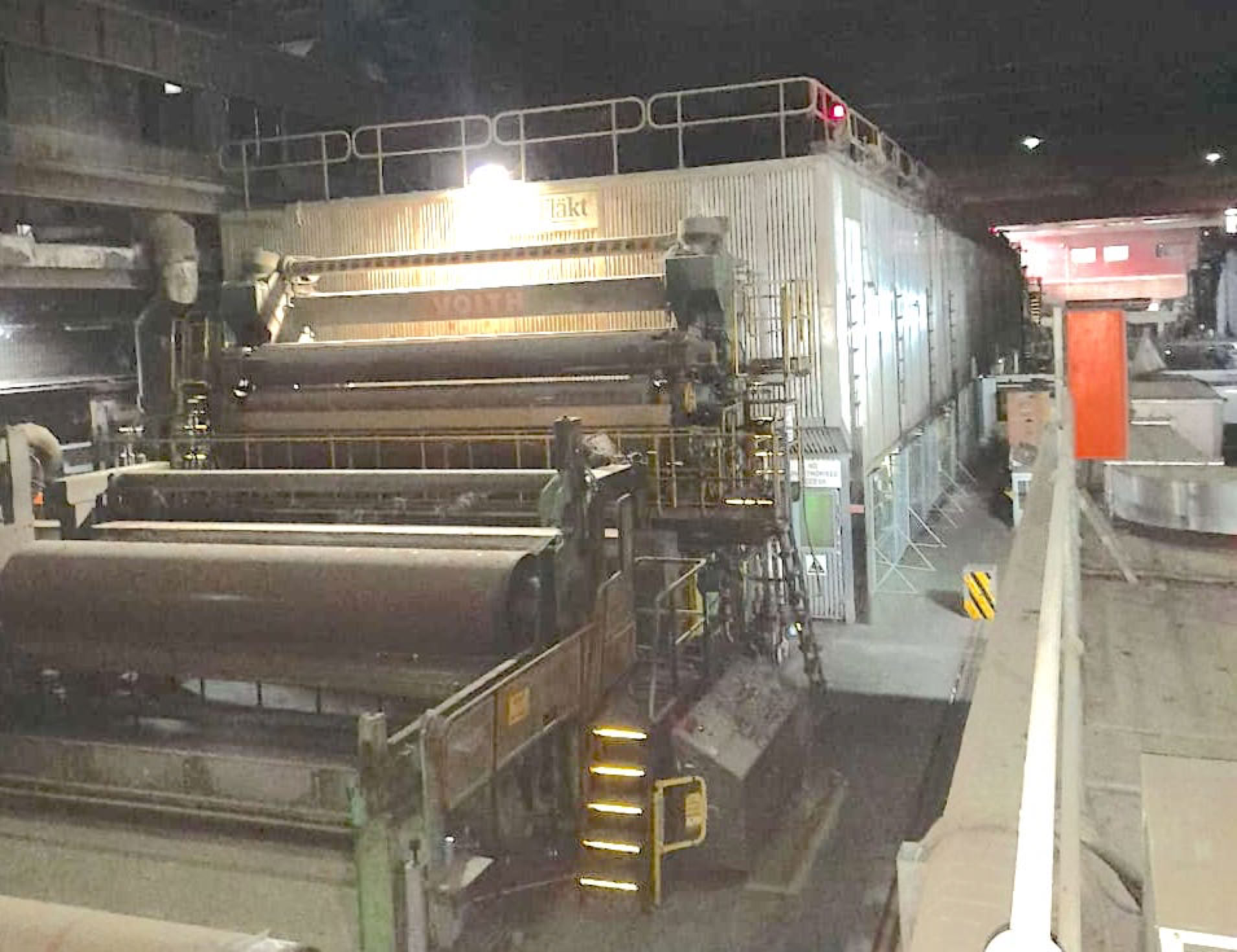

POPE, CALANDER & DRIER SECTION

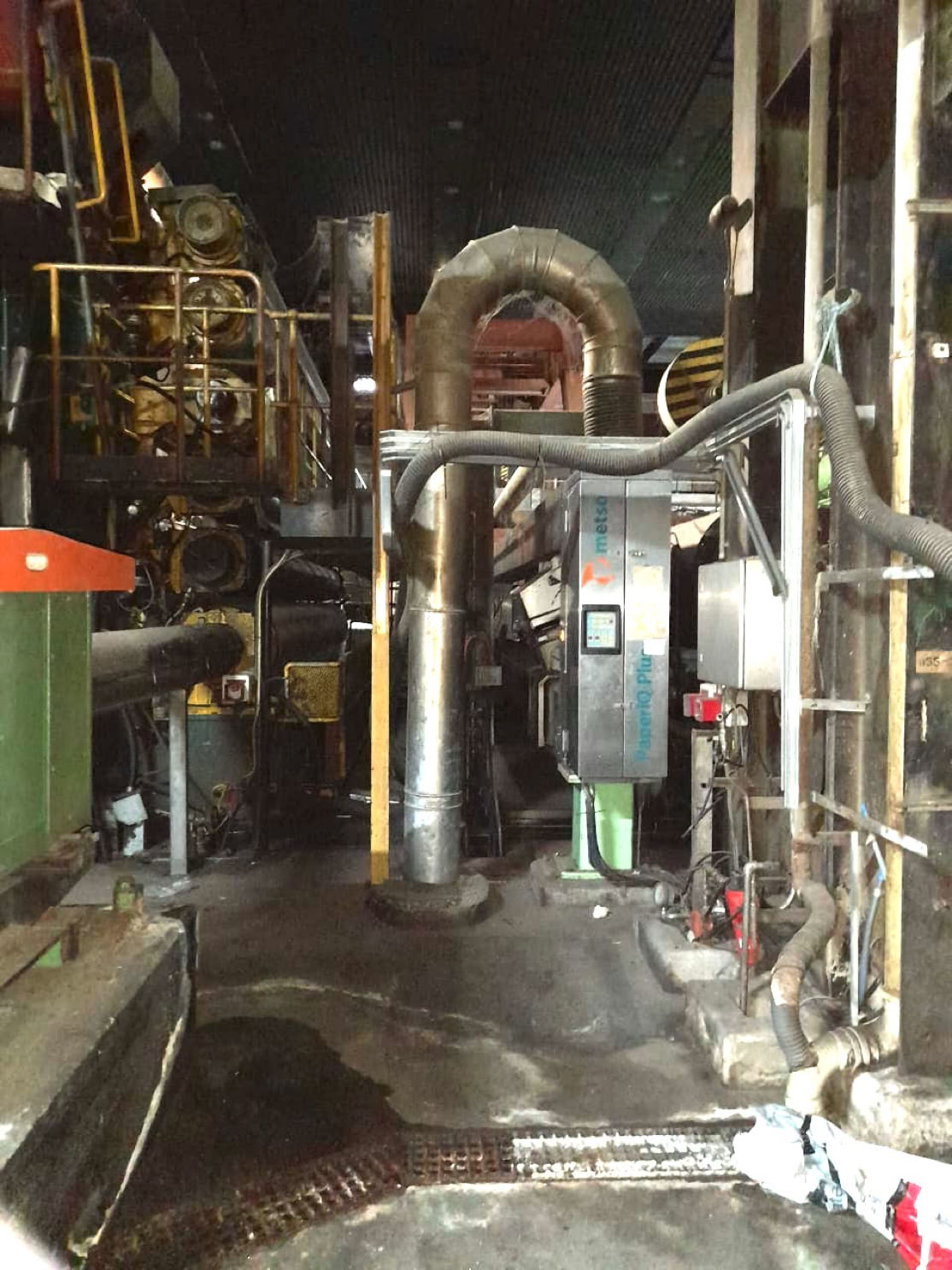

CALANDER STACK (drive side) & METSO QCS

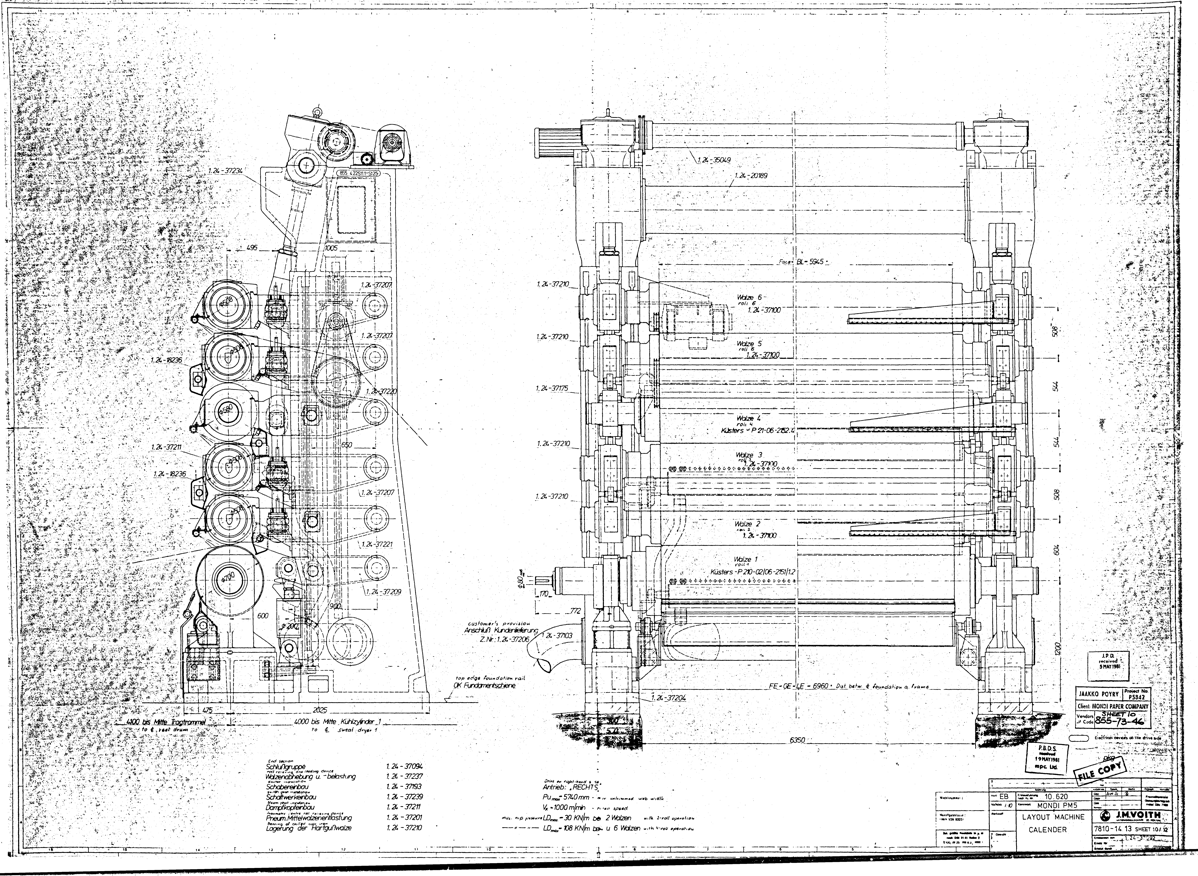

Calander Stack

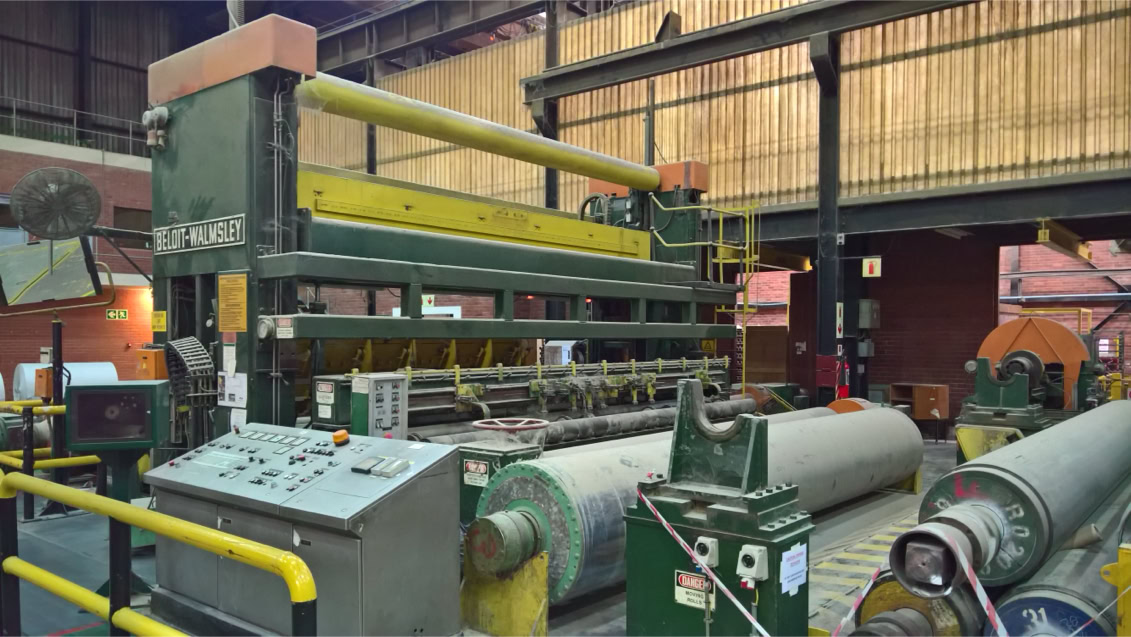

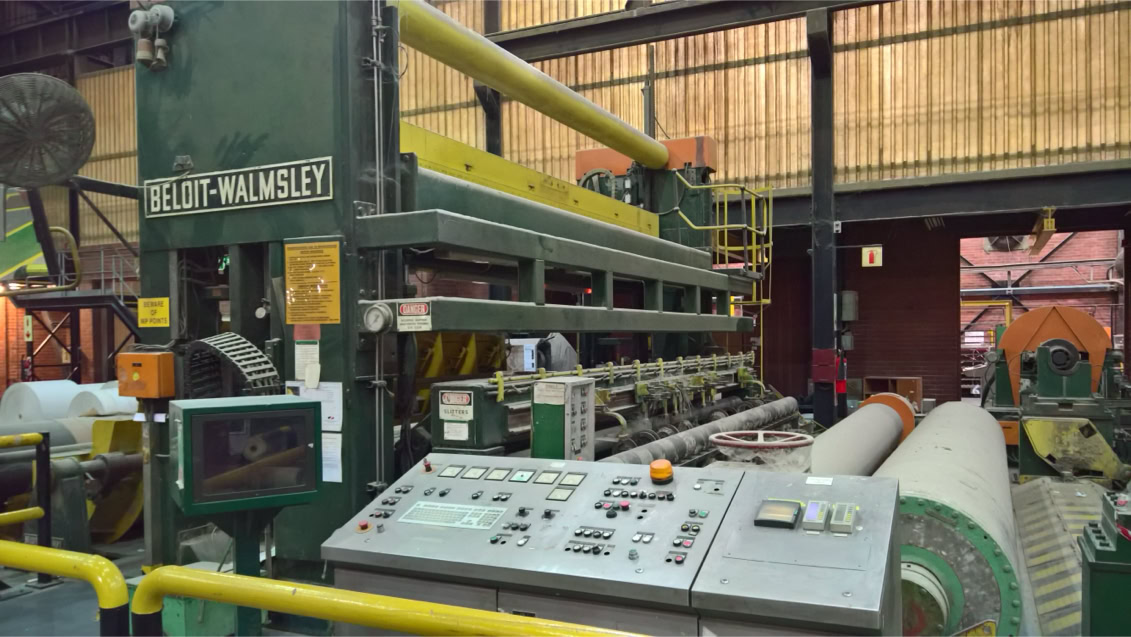

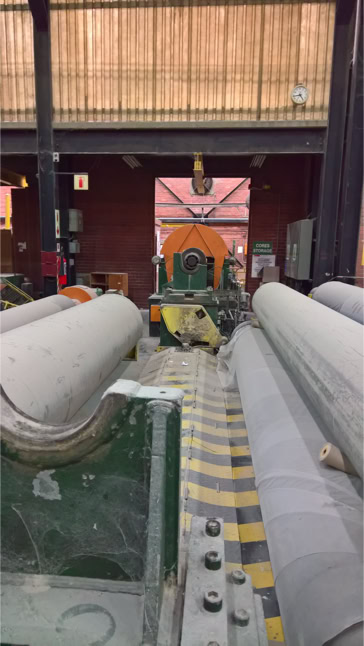

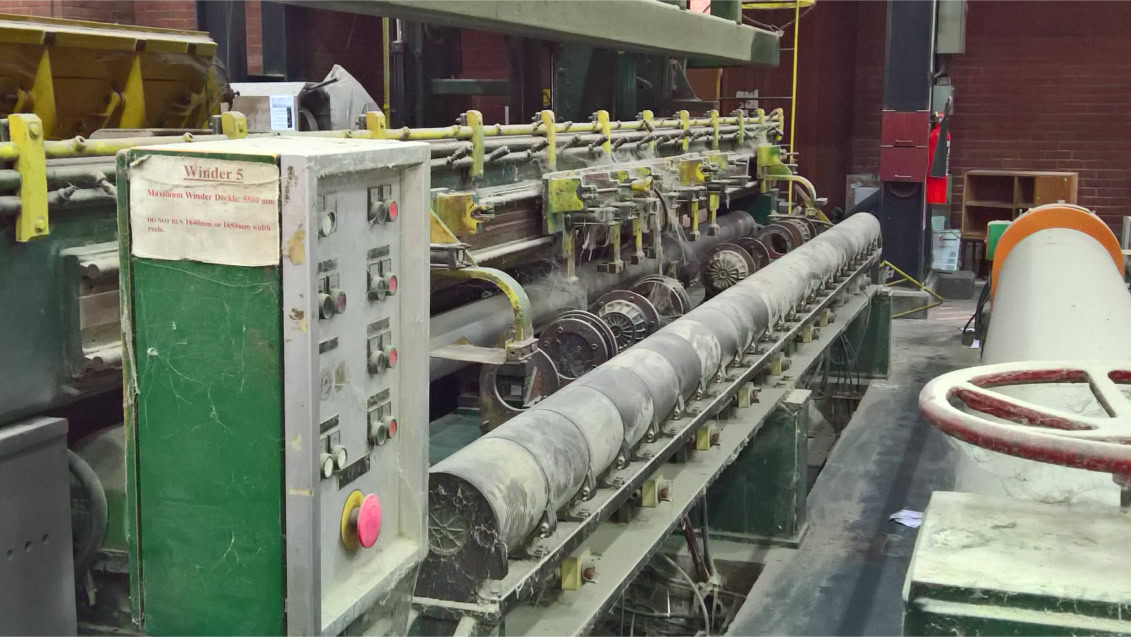

REWINDER
