EXCLUSIVE AGENCY

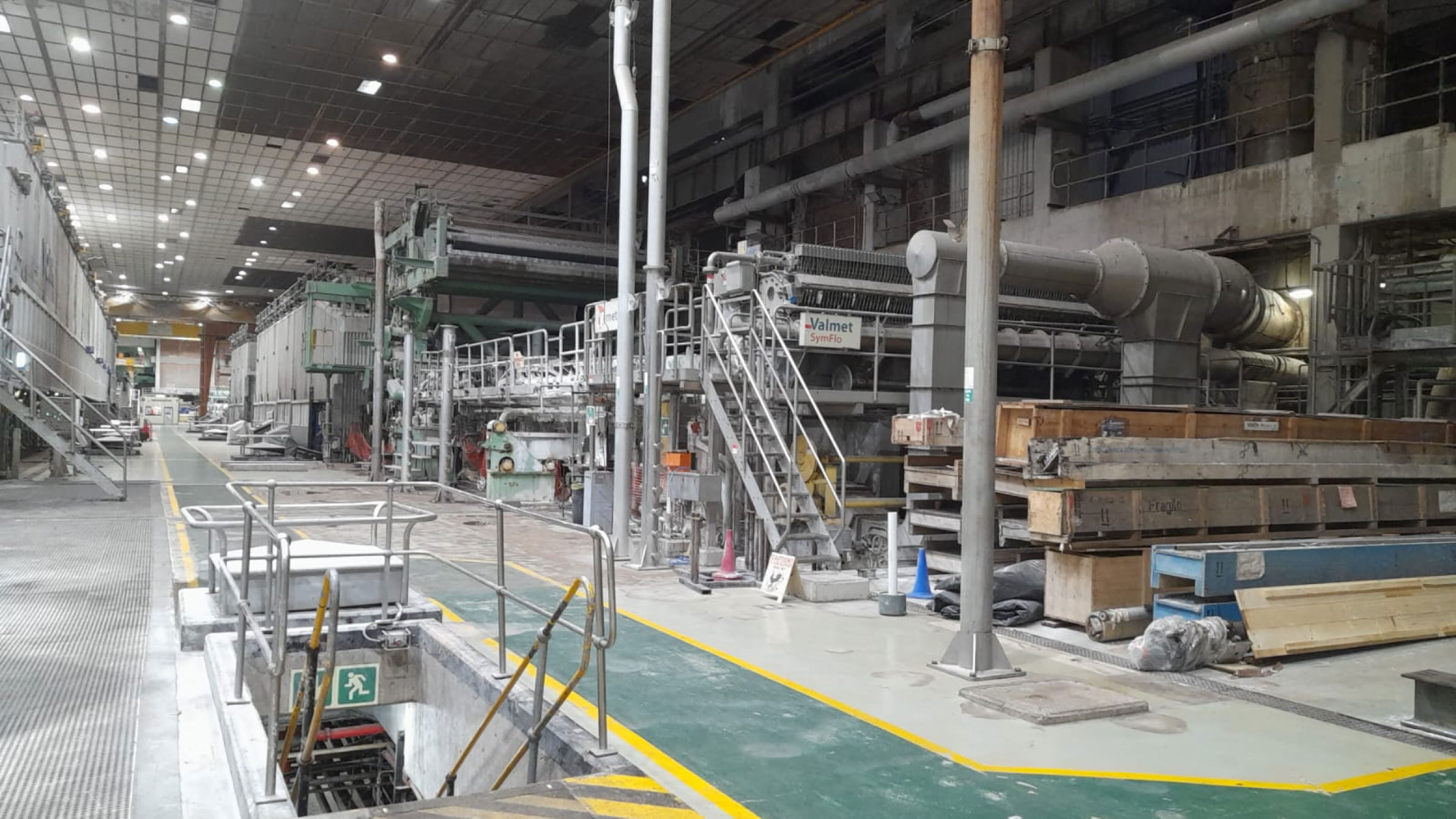

SM2742 - PAPER MACHINE, 5,600mm, Printing/writing

SOLD AS SECTIONS

ORIGINAL INSTALLATION & STARTUP:    1972

MACHINE DECKLE:                5600 mm

OPERATING SPEED:                850 m/min

BALANCE SPEED:                    1000 m/min

DRIVE SPEED:                    1100 m/min

REBUILDS/UPGRADES

    •    1980’s drive upgrade

    •    1990’s transfer and sheet support blow boxes in press to first run first dryer group - BELOIT

    •    2002 new METSO QCS O/S, Headbox, Calander and Optisizer

    •    New Machine Drive

HEAD BOX

Metso (Valmet) Dilution Headbox (Installed2002)

FORMER

Standard Fourdrinier Table - BELOIT

Single and Multiple Arc Foils

Low vac and high vac ceramic boxes

Bronze Couch Roll

PRESS

Standard configuration BELOIT Twinver withstandard suction pick-up, separate 3rdpress

1stPress nip with Polyeurethane Suction roll =70 kN/m

2ndPress nip with Venta groove rubber roll = 90kN/m

Both presses mated with centre Granite roll

3rdPress nip with grooved cc roll = 110 kN/m

Press mating roll - Granite

DRYER PART

Traditional FLÄKT fryer hood

SLALOM (Uno-run) Group 1

Conventional double run (felted)

For Groups 2,3

Metso (Valmet) Opti-Sizer, Complete with compact starch preparation ‘kitchen’     SOLD

After Dryer with single Slalom group followed by double felted group for Curl control

Conventional cascade steam& condensate system

Conventional hood exhaust / heat recovery

Conventional pocket ventilation system

Rope threading

Pressure rating 5 bar max

42 cylinders (cans)1500 mm

5 steam groups

CALANDER

Kusters Single Hard Nip (Flexitherm and Hard covered roll) – Installed 2002

Main Machine Drive

ABB AC drive, complete, including ABB motors

DCS

Metso

MACHINE PULPERS

Former / Press – non removable concrete chest

Dryer / Calander – non removable concretechest

STOCK PREP

BELOIT softwood DD refiners series 4000(upgraded 2002) 42”plates

BLACK CLAWSON Softwood Hydra Pulper

APPROACH FLOW

CLARK and VICARIO deculator

Valmet Head box primary screen, secondaryscreen and tertiaryScreenSold

VACUUM PUMPS

Machine installed NASH Water-Ring Pumpsseries 4000 and 6000

ROLLS

S/Couch, pick-up and press suction all BELOIT

Press S/roll polyurethane cover blind drilled, drilled and grooved

N.B.  Machine Main equipment partssold and no longer available

Some Dryer section guide (screen) rolls

Size Press: Metso (Valmet) Opti-Sizer, Complete with compact starch preparation ‘kitchen’

S/Press Pulper: Metso (Valmet) Stainless Steel two-rotor unit
