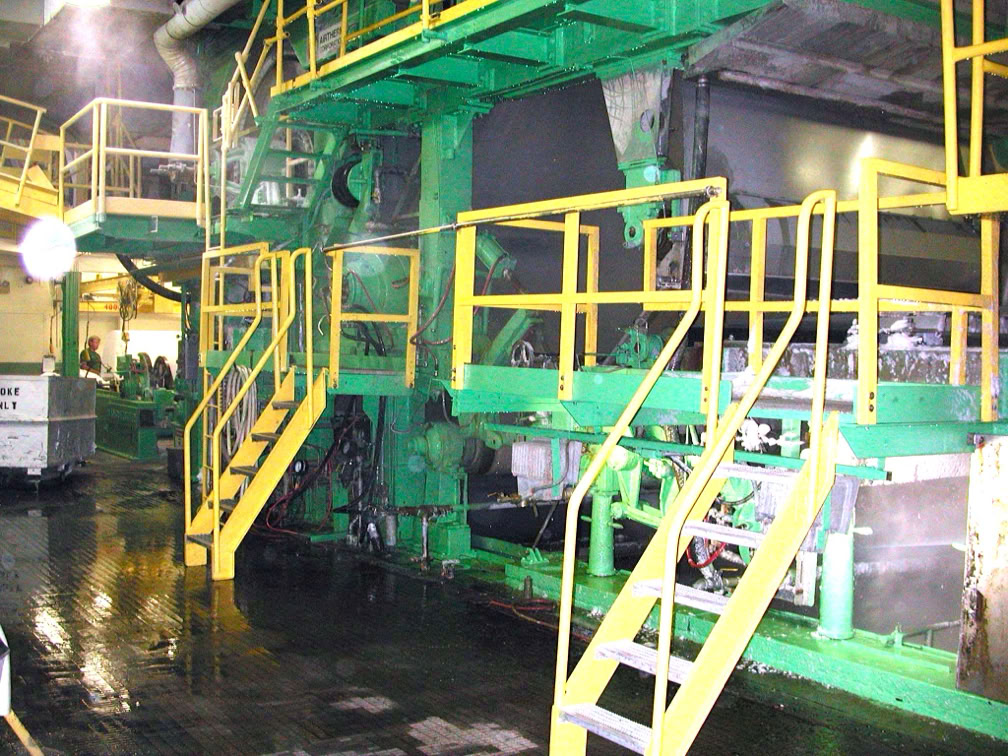

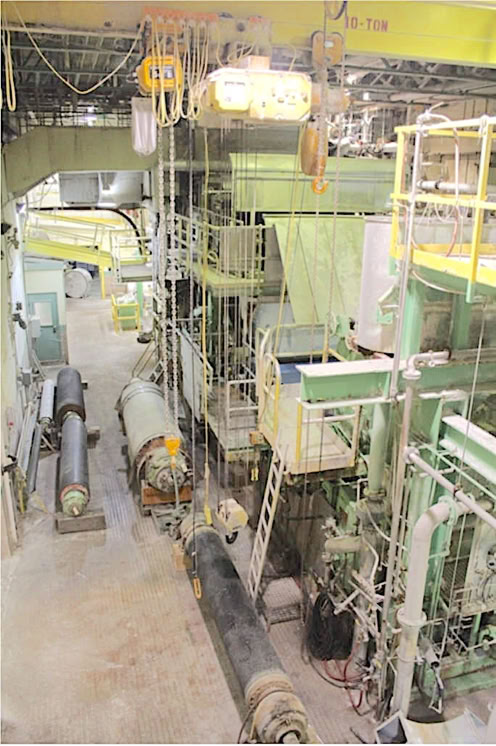

SM2957 - TISSUE MACHINE, 2,340mm, 50 TPD

PRODUCTION PARAMETERS:

Speed:                             1,130 m/min at the Yankee

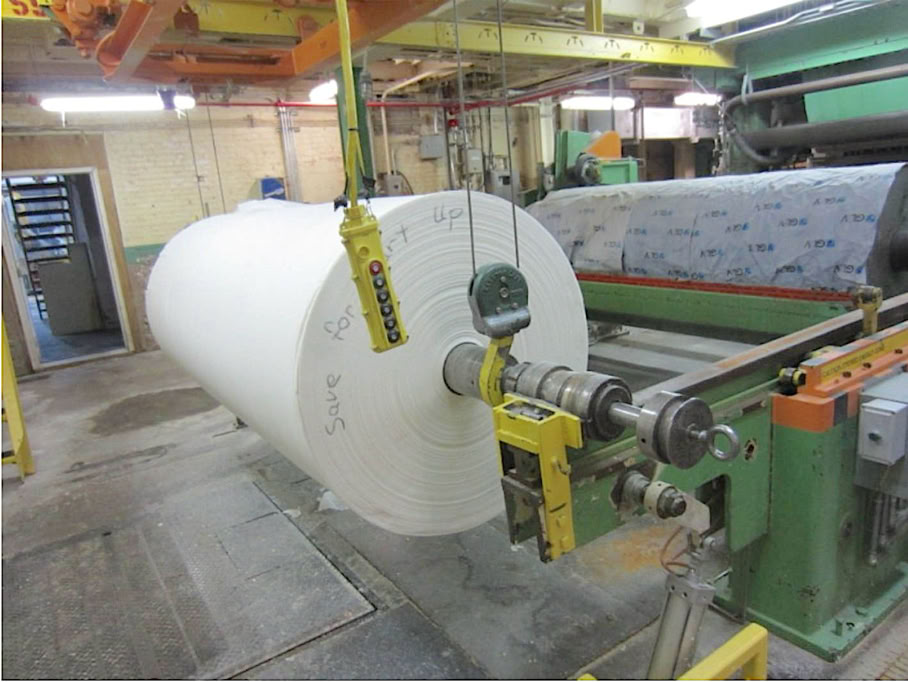

                                        1,100 m/min at the Pope Reel

Tonnage:                           50 tpd

Grammage operated:       17gsm

Crepe ratio:                      18%

Trimmed Width:                2,350mm

MACHINE COMPOSITION:

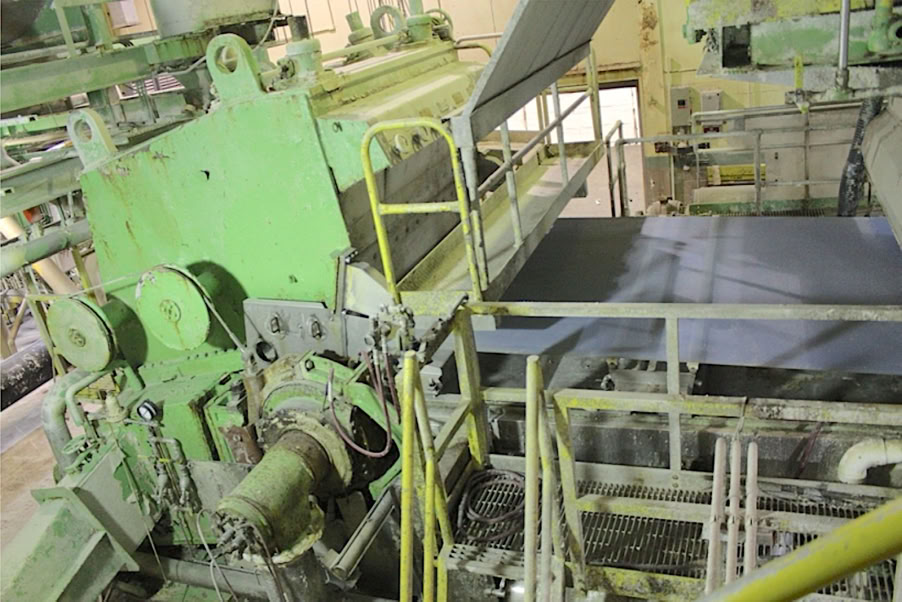

Headbox:                         Manchester

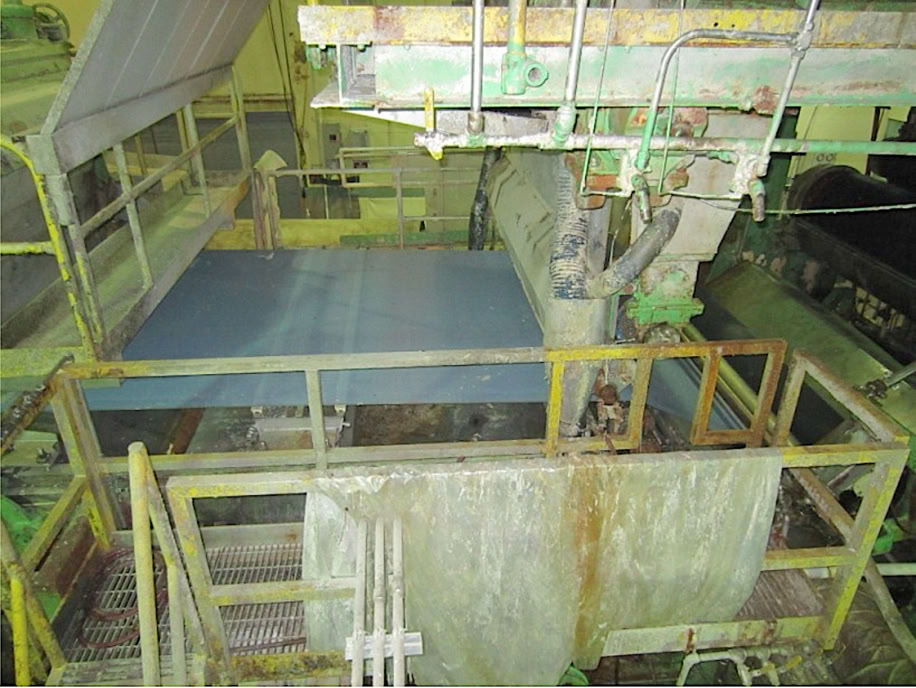

Fourdrinier:                       single wire

Press Section:                  Twin felt

Yankee 1 (working):          Voith, NB312, 10 Ft. (3.05m)

                                        Dia x 113” (2,8700mm)

                                        Working Pressure:    MAWP 160 PSI (11bar)

Yankee 2 (Spare) :            NB592,

Yankee hood:                   Airtherm High velocity / High Temperature 426- 480 degC

                                       1976 - upgrades 1996

                                        Converted from oil to natural gas fired

                                        Burner controls are Honeywell

Machine controls:             Foxboro.

Main rolls:                        Suction Breast Roll

                                       Suction Breast Roll

                                       Top Press

                                       Blind drilled Pressure Roll

Controls/Drives:              GE DC2000 drives

DCS:                              Foxboro IA Series

Lubricating oil station:

Hot Air Circulation:

Heat Recovery System:

Suction Press Roll:

Saveall:                          Beloit Polydisc

SPARES:

Spare paper Machine clothing:        circa $150,000 value

Top press rolls:                                 x 2

Felt rolls:                                           x 11

Wringer rolls:                                    x 2

High temp bow rolls:                        x 2

Wire guide / stretch roll:                   x 1

Bottom couch roll:                           x 1

Wire break rolls:                               x 3

Top calender:                                  x 1

Bottom Calender:                           x 1

Suction press rolls:                         x 2

Pressure rolls:                                x 2

Breast roll                                      x 1

Low temperature bow roll:            x 1

Air shafts:                                     x 6

Reel shaft                                     x 1

Reel gear box:                              x 1

Couch gear box                           x 1

DO refiner Element

 (spare shaft) & plates:                 x 1

Shaft & basket/foils

for bird screen                             x 1
