SM0777

SM0777: 2,450mm Tissue Machine, 37tpd.

TECHNICAL SPECIFICATION – EXISTING SLOPE WIRE MACHINE :

Paper grades:Toilet, Towels

Basis Weight: 17 to 30,0 g/m² (Reel)

Capacity33-37 t/d

% Crepe:10 – 20%

Forming:One layer

Raw material:Virgin / Waste paper

Operating speed:up to 700 m/min.

Sheet width:2450 mm

Sheet dryness :95 %

Yankee diameter:3600 mm

Yankee shell length :2960 mm

Yankee working pressure:6,0 bar

Gas Hood mono type:450 ºC


TECHNICAL SPECIFICATION – CRESCENT FORMER OPTION :

Paper grades:Toilet, Napkin, Towels

Basis Weight: 13 to 30,0 g/m² (Reel)

Capacity37-45 t/d

% Crepe:10 – 20%

Forming:One layer

Raw material:Virgin / Waste paper

Operating speed:up to 1000 m/min.

Sheet width:2450 mm

Sheet dryness :95 %

Yankee diameter:3600 mm

Yankee shell length :2960 mm

Yankee working pressure:6,0 bar

Gas Hood mono type:450 ºC


REQUIRED MODIFICATION FOR CRESCENT FORMER

- Approach flow -  fan pump, flume, silo , piping

- Flotation unit

- Stock preparation modification with existing equipment rearrangement

- New crescent former with headbox

- Felt section adaptation

- Mechanical drive modification

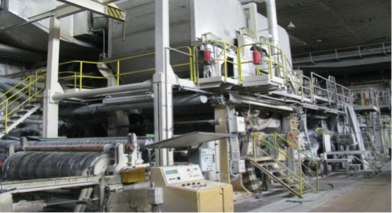

Existing slope wire machine

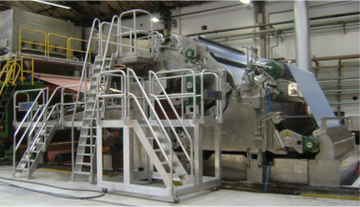

Optional rebuild to Crescent Former
