SM2130

KRAFTPAPER MACHINE, Dominion, 3,924mm trim, 41-170gsm, 550 M/min

Machine manufactured by Dominion Engineering & Black Clawson.

production:Kraft paper grade

Basis weight: 41 GSM to 170 GSM

Trim reel: 3924 mm.

Left hand machine.

Average speed 550 m/min.

PM 3:- 41-170 gsm,154" Trim

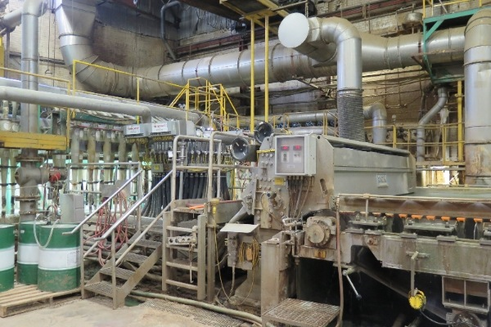

 HEADBOX AND WET END

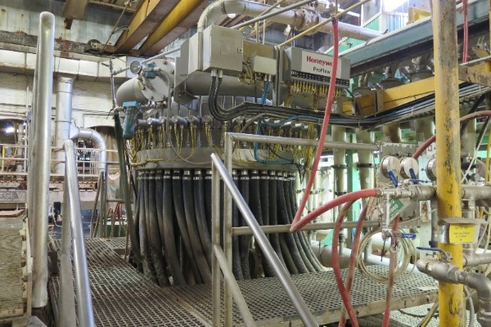

GL&V Headbox with BTF

70 000 LPM (18 500 USGPM) design, speed: 760 m/min, consistency: 0.2 to 0.5 %.

4.1 m width, 48 zones (161.4"), 41 GSM to 170 GSM.

Construction 2003, Honeywell control.

Headbox overall dimensions: 2.75 m height (108"), 4.55 m width (179"), 1.50 m depth (59")

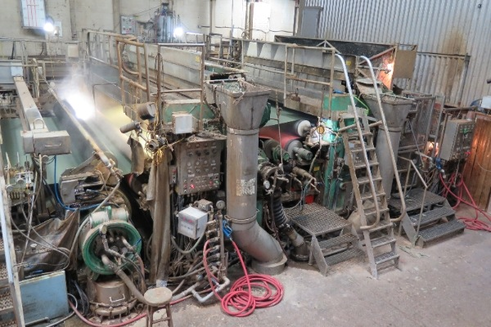

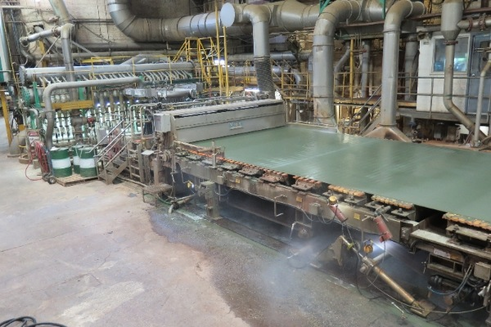

Fourdrinier - Mec-Fab 1996

402.5" lenght (from breast roll to couch roll centerline) by 179" cc frame. Stainless steel cladding.


Couch roll - CANMEC HI VAC.

Overall roll length: 269"; drilled face: 168", outside diameter: 36", rubber: 37.585"

 PM 3:- 41-170 gsm,154" Trim

 PRESS SECTION


Press


First press

Black Clawson Donahue Clermont: 2000 fpm design.

Top press: 162" face, 34" dia. granite.

Bottom press: 168" face, 0.010" crown, 28" dia,15 P&J.

250 to 300 PLI operating pressure.


Second press

Black Clawson Donahue Clermont: 2000 fpm design

Top press: 162" face, 34" dia. granite.

Bottom press: 162" face, 27.25" dia.,12 P&J, grooved, 4 grooves/inch, (0.043" width, 0.080" - 0.010" depth).

400 to 450 PLI operating pressure.


Third press

Top press: 160.25" face, 25.75" dia., iron.

Bottom press: 162" face, 27" dia., iron.

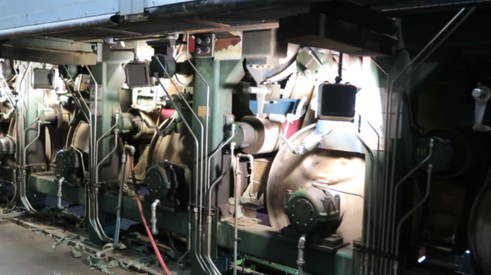

DRYER

Dryer Sandy Hill

41 dryers 169" face, 48" dia., 150 psi., design speed 2500 fpm, balanced speed 3800 fpm, felt 158".

First 4 dryers: 160" face, no steam.


Steam consumption

20 000 kg/hr (44 000 lb/h).

120 g/m²-311 m/min, 100 g/m²-373 m/min, 65 g/m²-574 m/min, 49 g/m²-762 m/min.

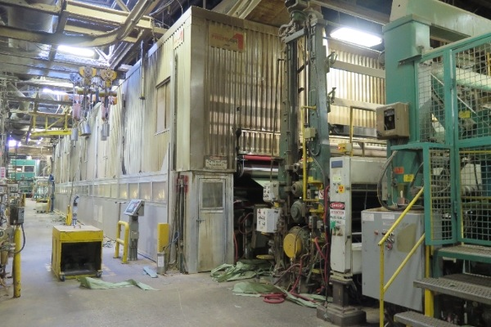

Hood Premiair

Overall dimensions: 115' length, 23' width, 18' height.  With economizer.

Evaporation rate: 4.6 Rw design 30# @ 2500 fpm, moisture in 36%, out 95%.


 CALANDER STACK

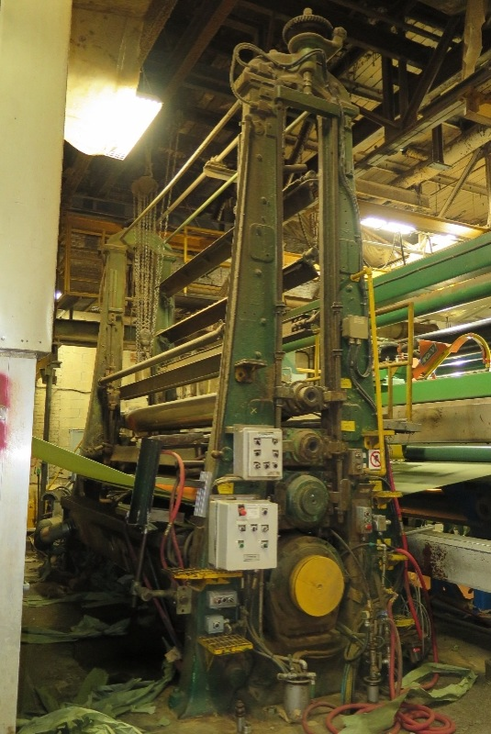

Calander

King roll: 152.25" face, 28" dia., iron.

Queen roll: 152.25" face, 18" dia., iron.

Dominion Engineering Works Ltd.

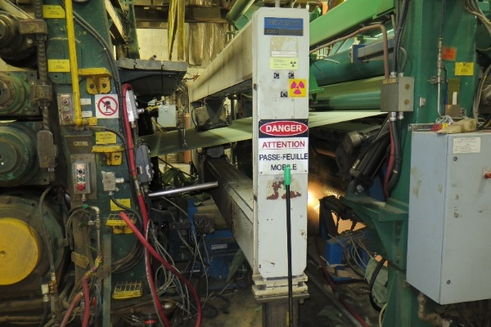

 SCANNER

Measurex 2002 - Davenci

Upgraded from gemini to davinci in 2003



System: Davinci

version Rae 3, update 10

2 Dell server power edge 2600

In/out: national instrument field point I/O

Scanner: 2010 – 4, length 6657 mm, remote PMP

                              Weight gauge 2201, source 6, Kr 85, date de 2008

                              Humidity gauge 2235

                              Thickness gauge 2213

                              Gauge air gap



Cd: Proflow 1 , cd web manager  Field controller 48 zones

      Aquatrol, chassis de ssr et pav 24 zones

      Caltrol 48 zones

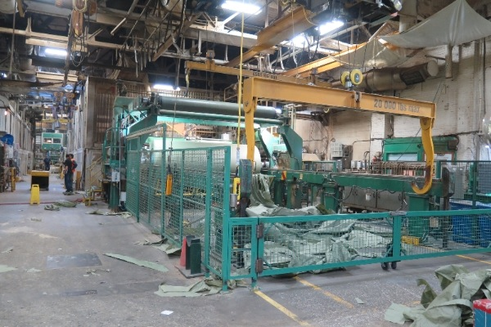

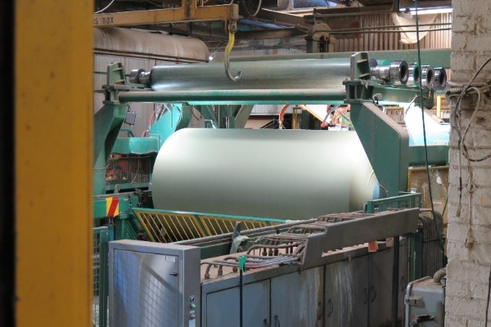

 REEL (WINDER)

Reel - Voith 1986

Drum: 159" face, 40" dia., 18" dia. chuck.

Design speed 2500 fpm.

Sole plate cc: 176.5".

Max roll dia.: 100”.


 SITTER REWINDER

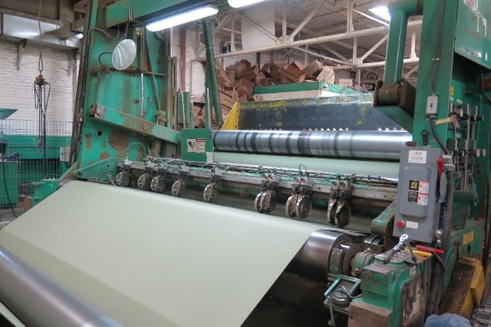

Slitter rewinder - Langston Model 303 Speemaster

2 drums surface winder: 157.25" face, 25" dia.

Rider roll: 12.25" dia.



STOCK PREP (common with SM2131)

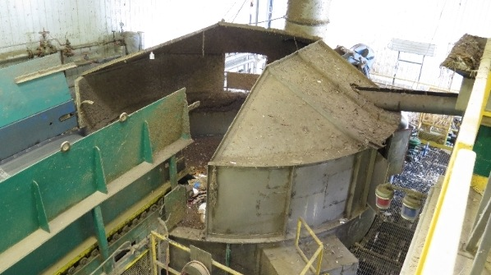

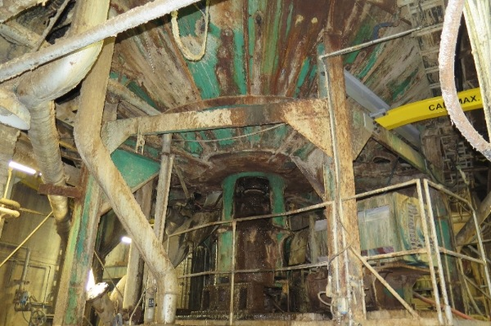

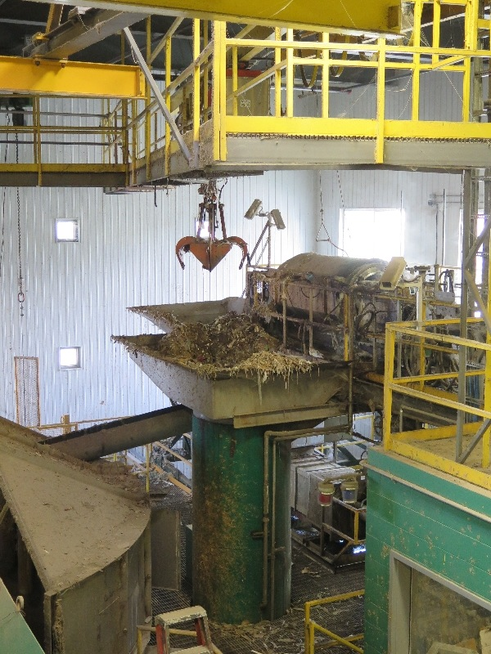

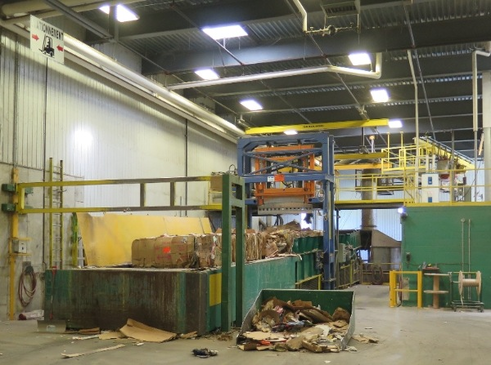

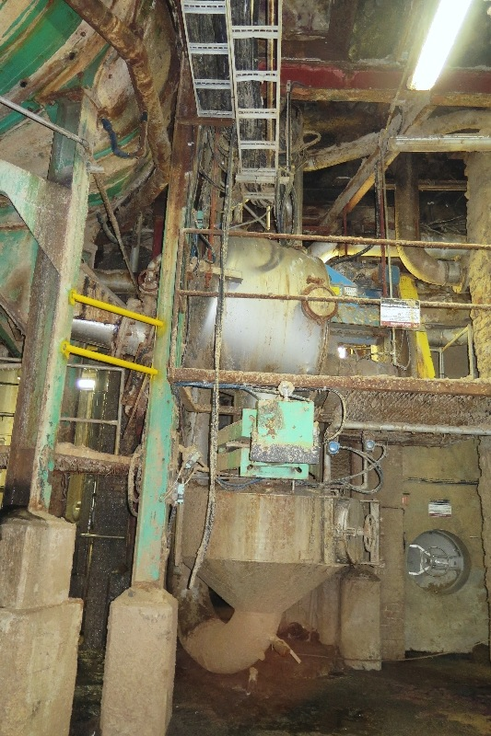

Pulper Hydra 3, Black Clawson

20' modified "D" shape complete with Trash tower kit.

2010 installation

Capacity: 10 MTPH

Grapnel.

Trommel HYCOR - 35 ¾ dia., 94" length.

Trash Press COMPACTOR.

Hydrapurge II Model 24-950.

Pulper drive size #4.

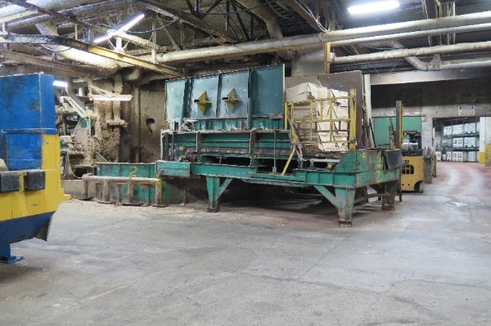

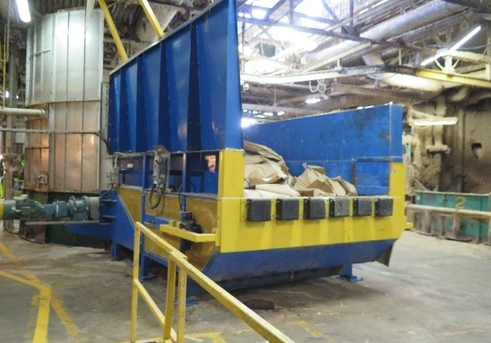

Steel convoyer 96" width.

Tail Cutter.

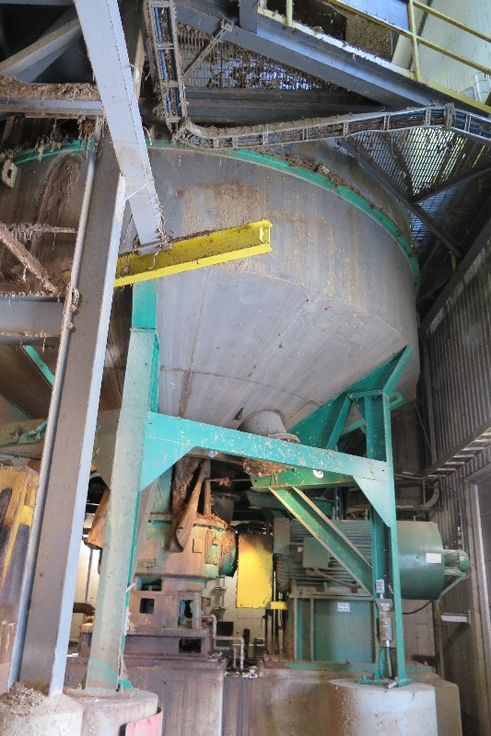

2 pulpers - Black Clawson


Hydra 1:

18' dia., Volks rotor 67 ¼ dia.


Hydra 2:

20' dia., Volks rotor 67 ¼ dia.

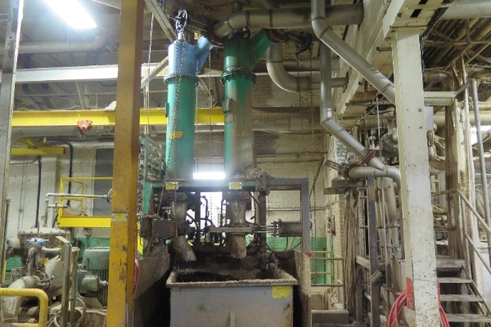

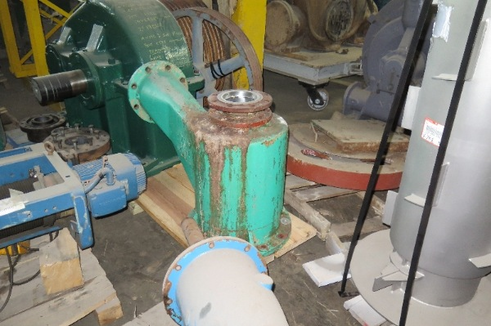

CLEANER

Black Clawson Hydrapurge III on Pulper #3

Scavenger # 2 with continuous evacuair on Pulper #2.

Fiberprep 1995.



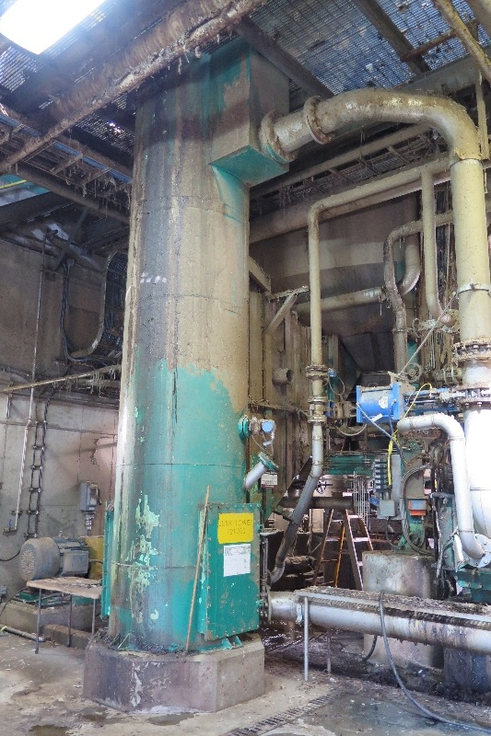

HDC 14.5" - Black Clawson

High density cleaner

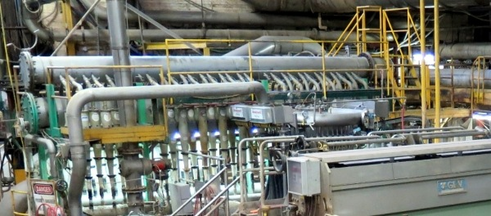

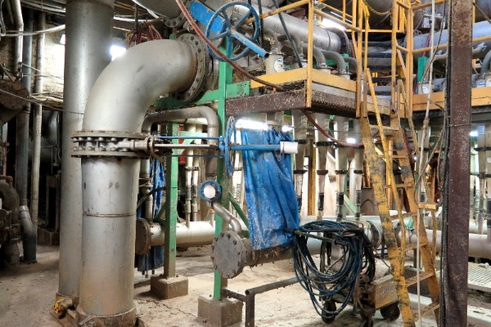

LDC Low density cleaner - Andritz

Paper machine # SM2131

Stage 1: (75x) Model 606-110P

Stage 2: (11x) Model 623

Stage 3: (2x) Model 623

Stage 4: (2x) Model 606


Paper machine# SM2130

Stage 1: (72x) Model 606-110P

Stage 2: (30x)

Stage 3: (16x)

Stage 4: (5x)


HOT DISPERSION SYSTEM

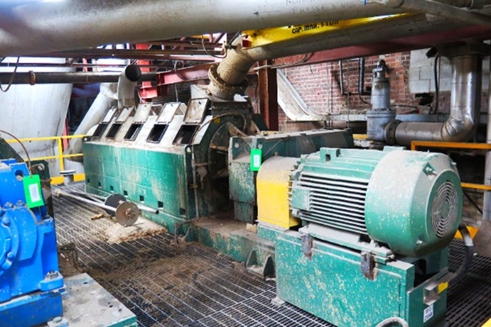

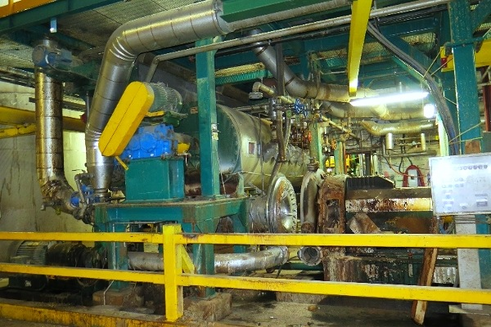

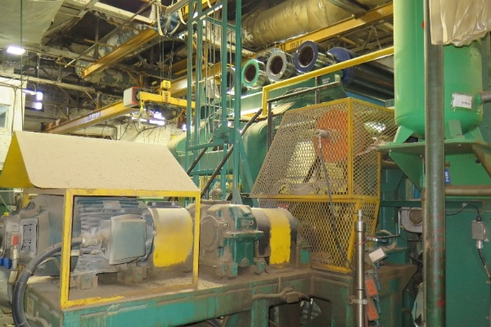

Krima hot dispersing system:

500 MTPD capacity modified to 250 MTPD.

System is composed of:

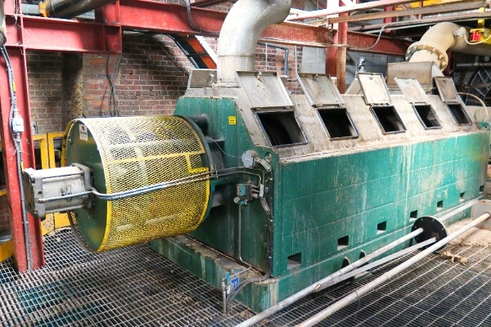

2 screw press, Cellwood, RR750 , 200 HP, 1800 RPM (var.)

1 screw conveyor 500.2, 15 HP, 1800 RPM.

1 plug srew 5030, Model 75 HP-1200.

1 shredder 500-5033, 20 HP, 1200 RPM.

1 pre-heater 13050, 40 HP, 1800 RPM.

1 infeeder 400, 20 HP, 1200 RPM.

1 disperger KD-1050, 1500 HP, 1200 RPM.

1 MC pump Ahlstrom, 150 HP, 3600 RPM (var).

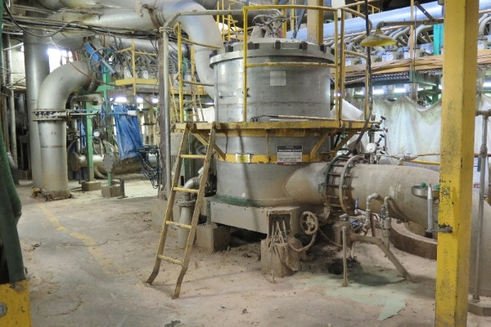

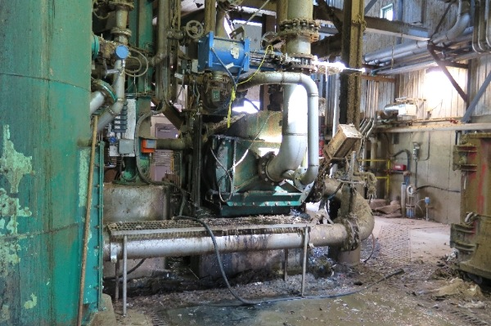

PRESSURE SCREEN

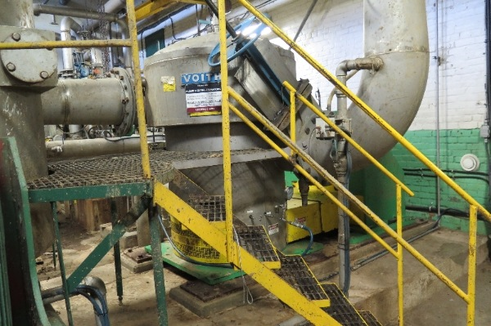

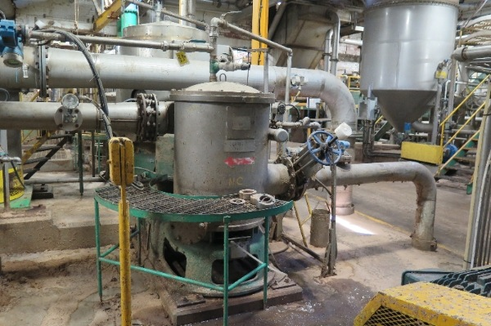

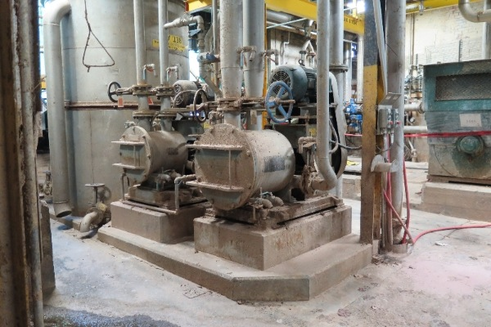

Pressure Screen

Voith 20

Fiberprep CH 5 & CH 3

BIRD 10, BIRD 400, BIRD 18 Centriscreen, BIRD 24

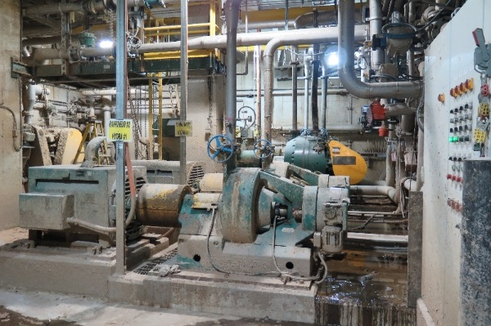

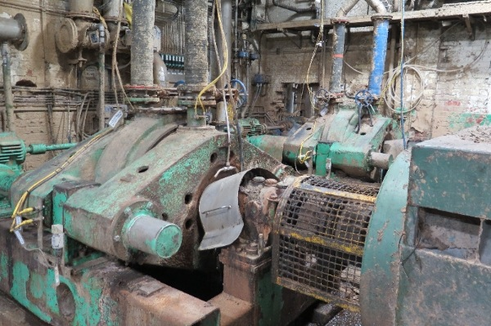

Refiner Sprout Waldron

34" Type 2

26" Type 3

(2x) Black Clawson




EFFLUENT TREATMENT PLANT (common with SM2131)

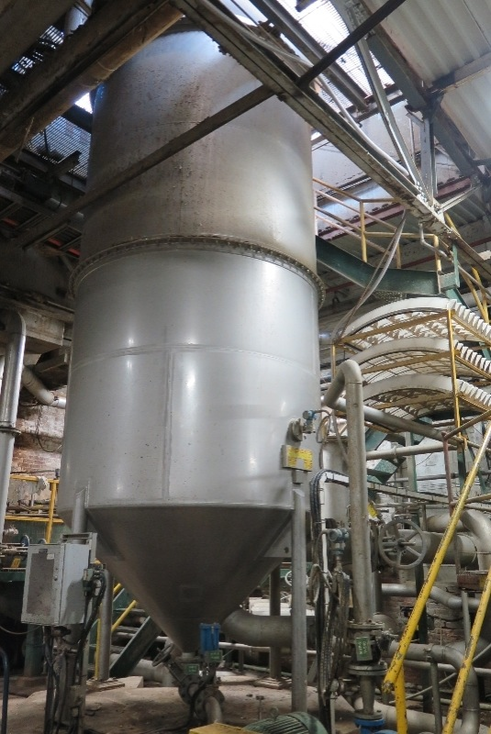

Poseidon Clarifier Model Saturn, S300D08 - E

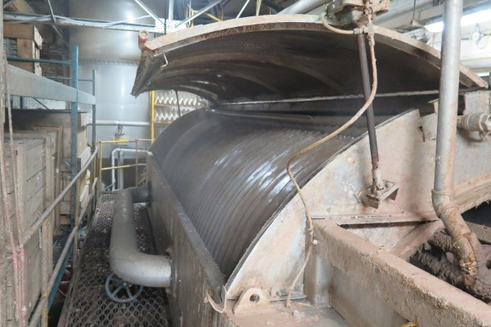

2 Drum Deckers 40" dia. x 126"

-----------------------------------------------------------

Vargo Filter - Polcon Corporation, 8' dia.

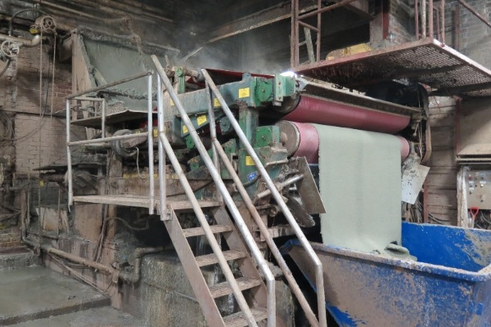

Twin wire press HDS

Model: DWT - 2.4/8 lc

Capacity: 10 MTPH

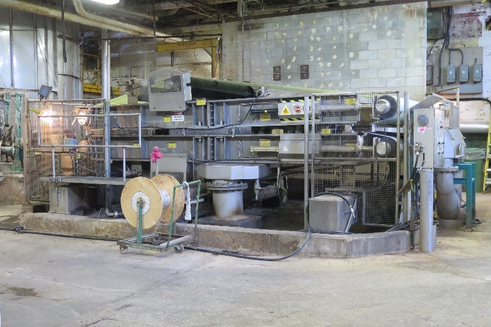

Sludge Press - ANDRITZ

Model: CPF 80S


ROLL SPLITTER AND CORE CUTTER (common with SM2131)

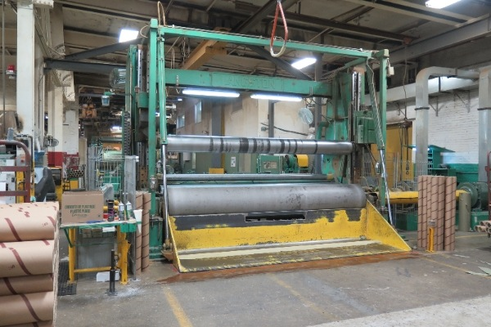

Roll Splitter

Black Clawson

120"

--------------------------------------------------------

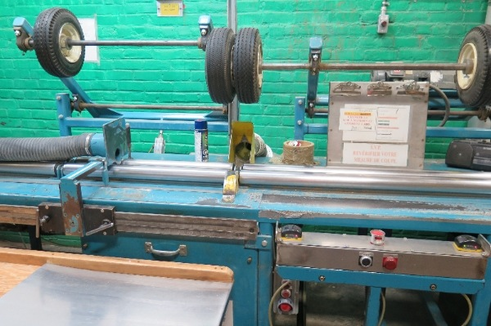

Core cutter

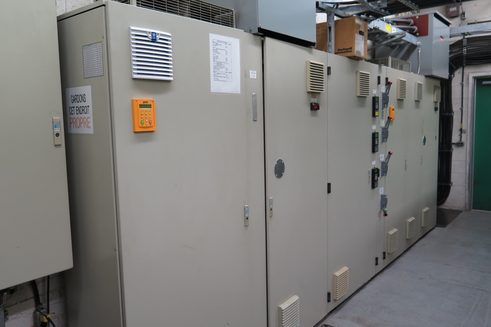

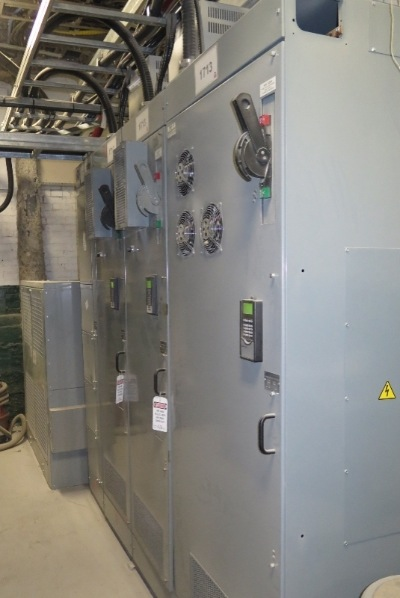

ELECTRICAL EQUIPMENT (common with SM2131)

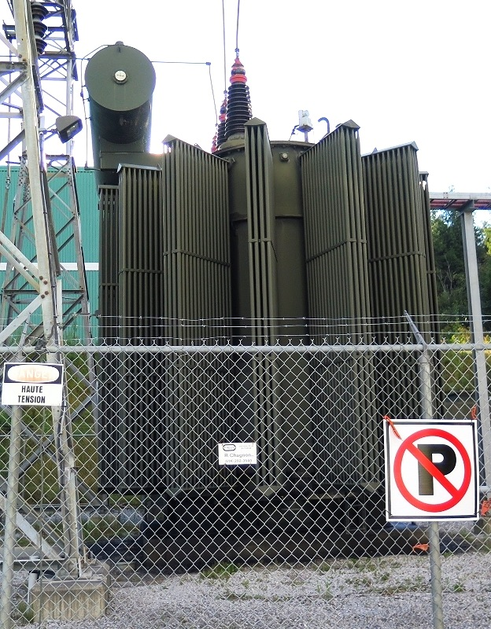

MCC, Switch, Transformer oiled and dry, Control, Capacitor Bank.

Delta V

Allen-Bradley

Westinghouse

Rex Manufacturing

Delta

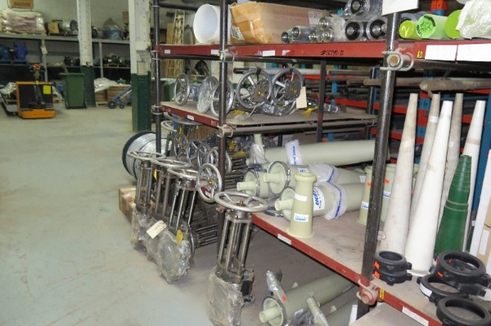

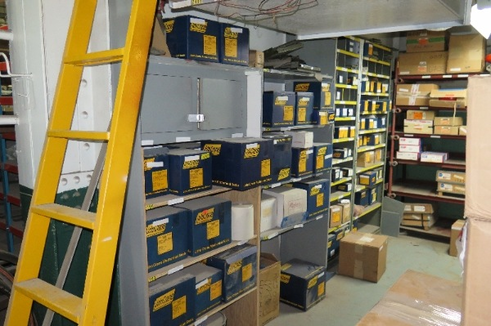

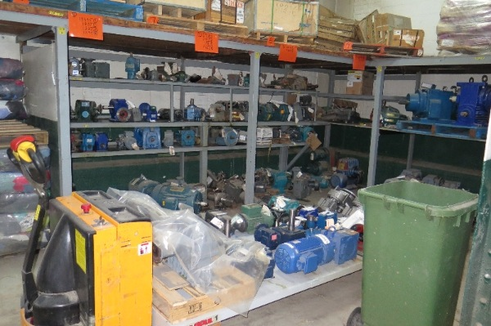

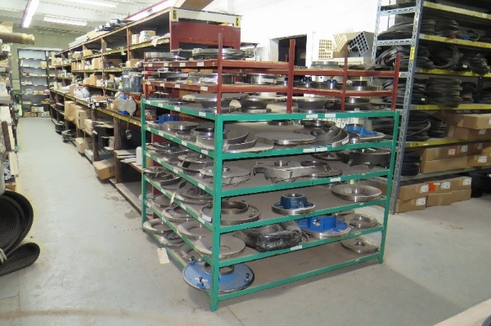

STORES (common with SM2131)

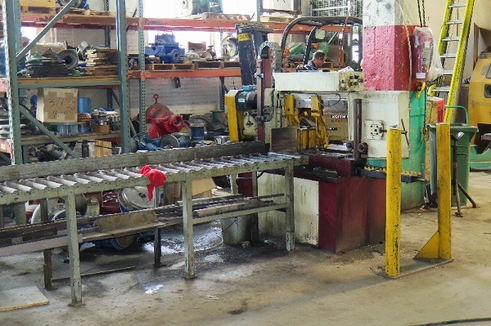

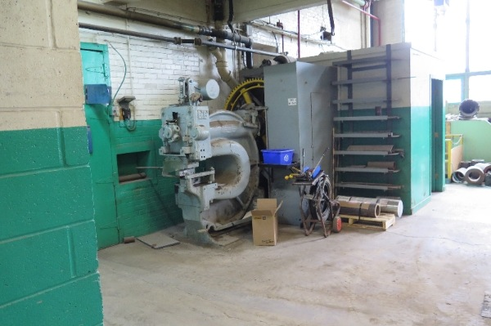

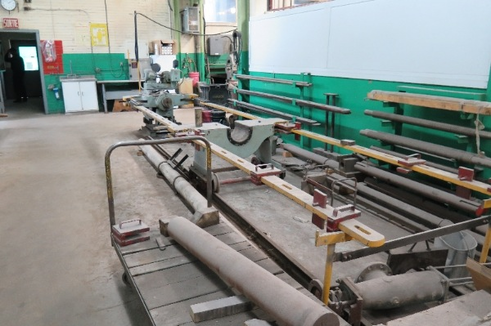

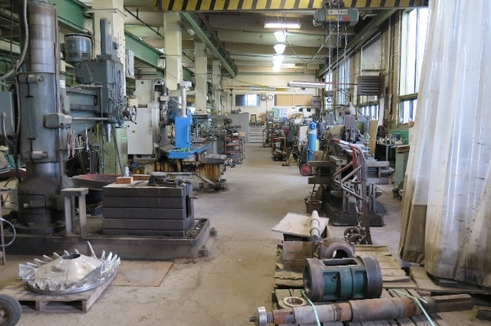

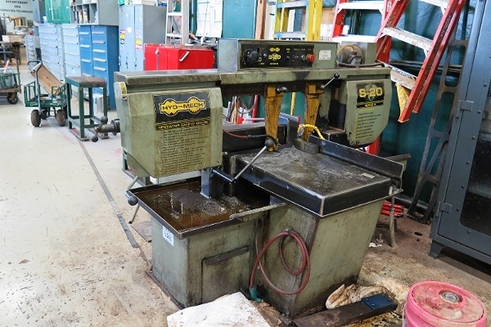

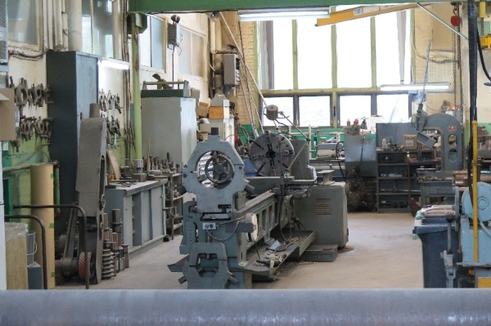

MACHINE SHOP (common with SM2131)
