SM0687: 2,400m PAPER MACHINE Voith fluting/liner, 100-180 gsm, 120 tpd
Manufacturer: Voith
Width: 2400 mm
Gramages range: 100-180 gsm
Capacity ( TPD ) 120 TPD, REDUCED PRICE W/ dismantling included!
YEAR 1986, 2008
LOCATION: EUROPE
STOCK PREPARATION:
1. 1 TURBO SEPERATOR (120 TONS/DAY)
2. 1 FINK, 2 PRESSURED WIRE, 2 SPARE WIRES AND 2 SPARE ROTOR
3. 2 PIECES OF 60 DEGREE, CONICAL REFAINER ( VOITH)
4. 3 PIECES OF HIGH CONSISTENCY CLEANER
5. 7 PIECES OF LOW DENSITY CLEANER
6. 250 M3/H – 500 M3/H POMPS
7. 1 SCANPOMP FAN POMP
NOTE/ The machine normally works with recycled paper. But it can work with pulp. A refiner is needed, can be provided.

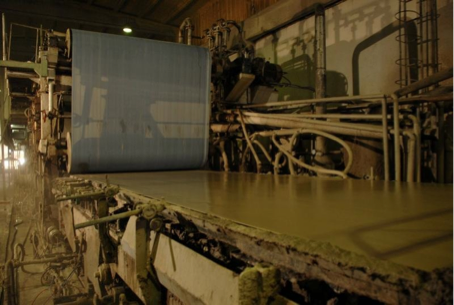

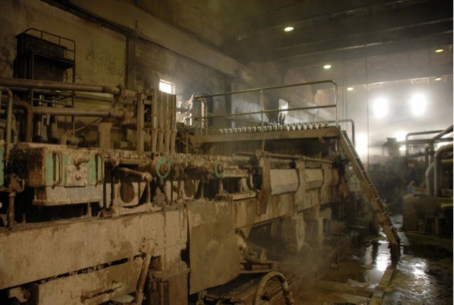

WET PART
1. 1 AIRJET HEAD BOX
2. 8 PIECES OF WIRE GUIDE ROLLS
3. 2 PIECES OF VOITH WIRES WITH 24000 MM LENGHT, 2 PIECES OF 2.5 LAYER VOITH WIRE
4. CAST WIRE CHASIS AND CAST STANDS
5. 1 SUCTION COUCH ROLL WITH 800 MM DIAMETER
6. 4 PIECES OF HIGH SUCTION VACUUM BOXES
7. 2 PIECES OF AZMEC VACUUM POMPS ( AL 2000 SERIES)

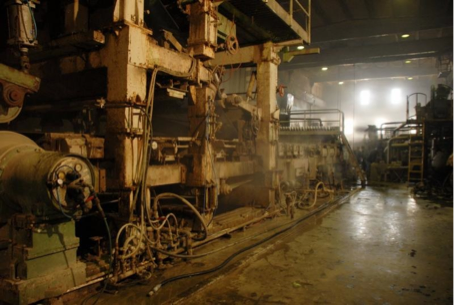

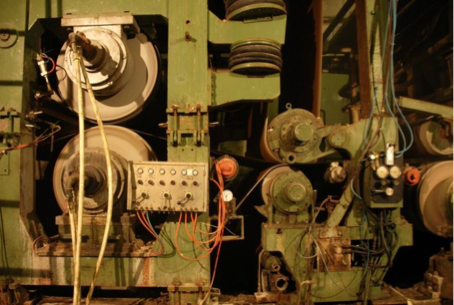

PRESS PART
1. 1ST PRESS GROUP ; DIAMETER: 500 MM, LINEER PRESSURE 100KN/M TOP AND BOTTOM ROLLS ARE BLIND DRILLED, RUBBER COATED. 1 SET OF SPARE PRESS ROLLS, 10 PIECES OF PRESS GUIDE ROLLS , AC MOTOR REDUCTOR.
2. 2.PRESS GROUP : DIAMETER: 500 MM, LINEER PRESSURE 100 KN/M, BOTTOM ROLL IS RUBBER COATED AND BLIND DRILLED, TOP PRESS ROLL IS STONE COVERED. 1 SET OF SPARE PRESS ROLLS , 5 PIECES OF PRESS GUIDE ROLLS , AC MOTOR VE REDUCTOR INCLUDED.

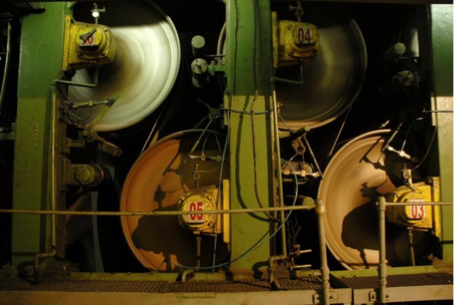

DRYER PART

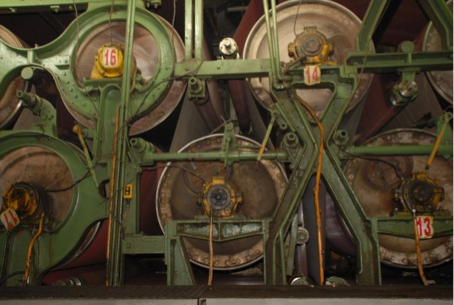

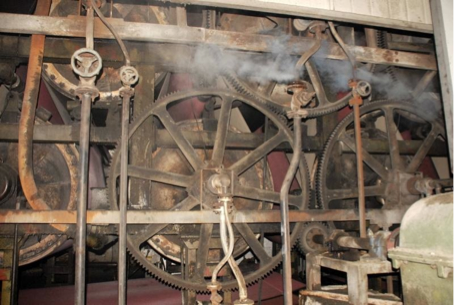

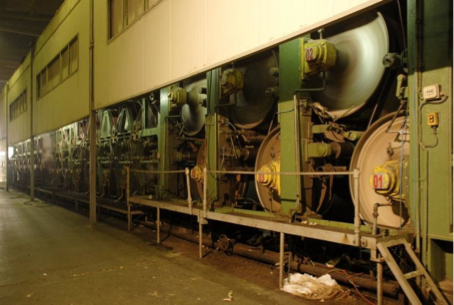

1. 34 DRYER CYLINDERS WITH BEARINGS, CHASIS, GUIDE ROLLS, 4 TRANSMISSION MOTORS, REDUCTORS, CENTRAL LUBRICATION.
2. 1 DEMOUNTED SIZE PRESS UNIT, DIAMETER IS 500 MM.

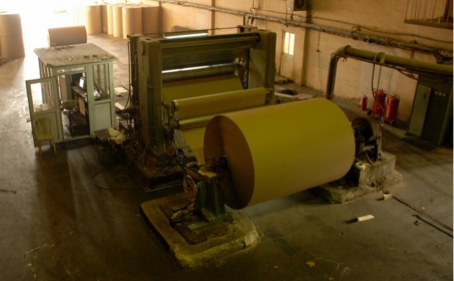

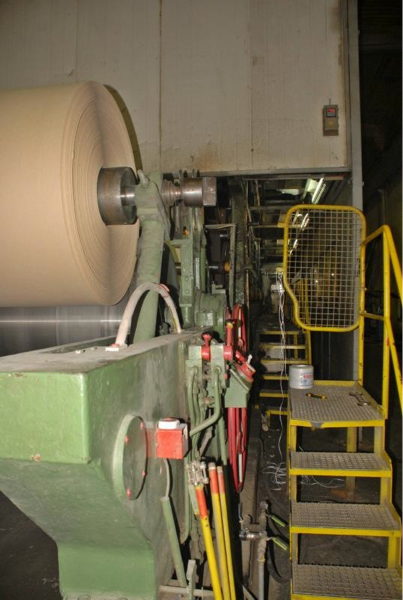

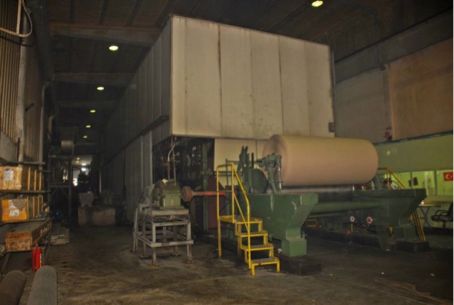

3. 1 POPE REEL. WIDTH IS 2400 MM. MACHINE SPEED IS 280 M/MIN.
