PAPER MACHINE, CYLINDER MOULD 2,380mm; BOARD AND PACKAGING PAPER 170-550 GSM
TECHNICAL DATA
Trimmed width: Max 2.380 mm
Board Paper Capacity per year: 24.150mt (70mt/day)
Basis weight range: 170-550 gsm
Packaging Paper Capacity per year: 17.250mt (50mt/day)
Basis weight range: 120-170 gsm
Description of Machine
Headbox & Wire Section
Outlet width: 2.550 mm
Wire Section last rebuild in 2006
Toscotec vacuum roll Φ800 x face2.900 grilled (2001)
press roll Φ500,
felter rolls, vacuum box, beams and drive.
6 gravity formers with vacuum.

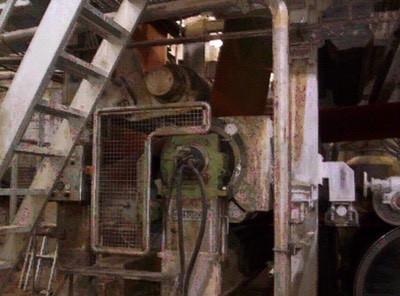

Press Section
Toscotec 2001
Number of Presses: 3
First press: Φ 500
Second press: Double feltr Φ 700 with drive DC 110 KW x 2
Third press: Double feltr Φ 700 with drive DC 110 KW

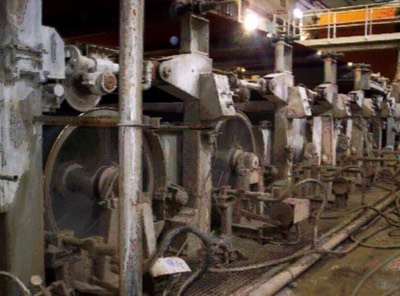

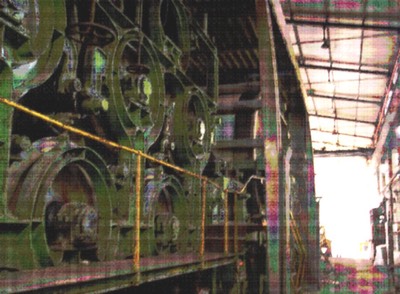

Drying section
8 drying cylinders Φ1500 at3,5 bar, face width 2.600 mm

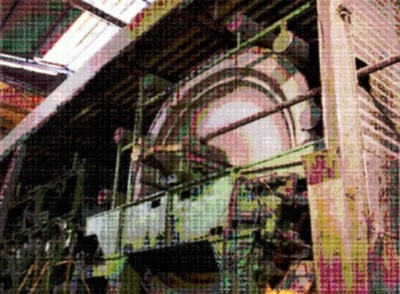

MG cylinder Φ3000 x face 2600 at 3,5 bar
ΜG cylinder Φ5000 x face 2800 at 3,5 bar
2 drying cylinder Φ1500 x face 2600 at 3,5 bar
Size press Φ500 x face 2600
6 drying cylinder Φ1500 x face 2600 at 3,5 bar

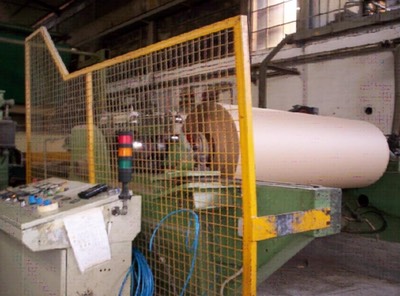

Pop winder G.Celli rebuild 2005
Calander
2 rolls Φ400 x face 2800
