SM0758  SLITTER REWINDER RECARD 2,700mm

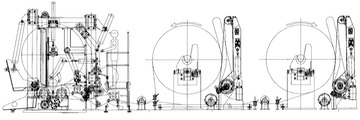

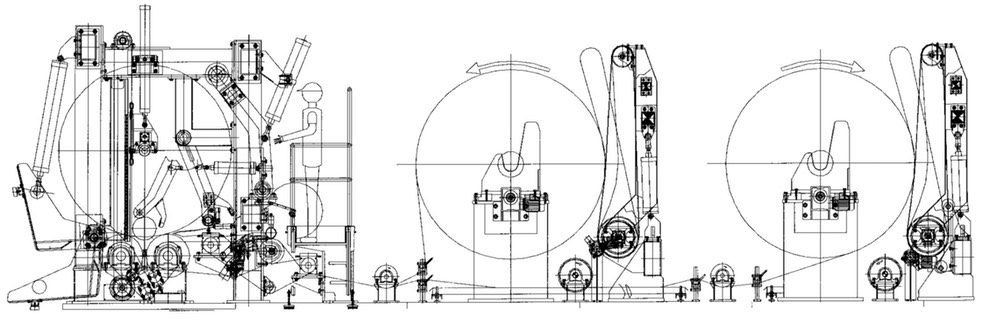

SM0758-01


2,700MM Recard mill rewinder for tissue application.
The rewinder was built for one of our clients projects but is available for sale. The rewinder is unused and brand new.

Inclusions:

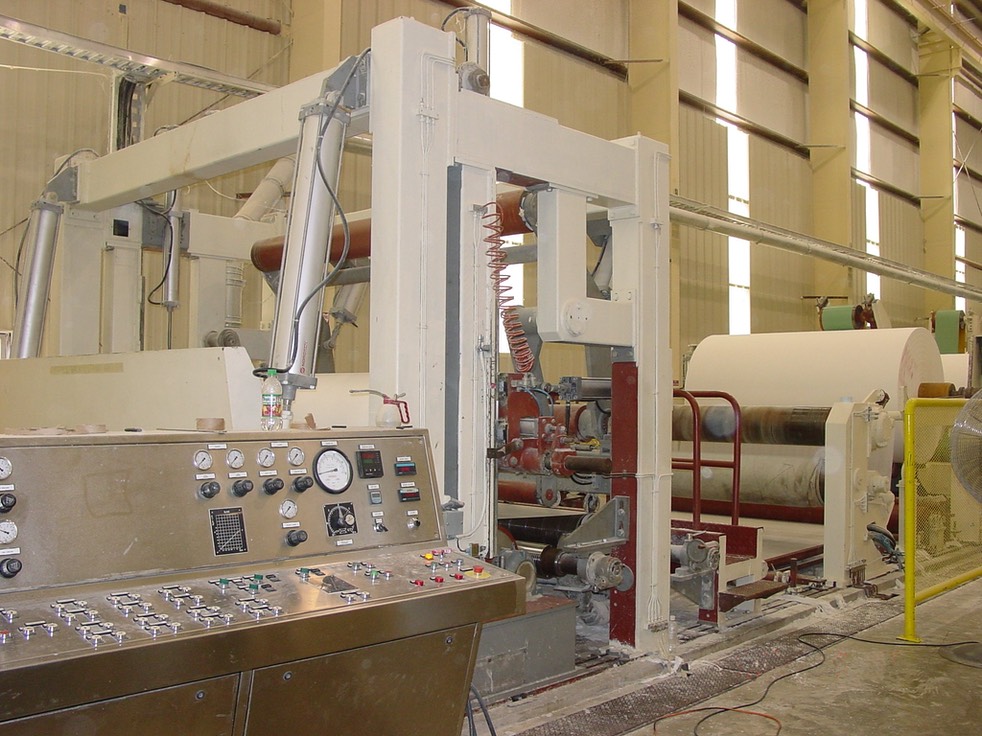

SM0758-02
  • Rewinder head with slitting arrangements, winder steel drums and main frame.
  • Trim Width: 2,700mm
  • Maximum working speed: 1000m/m
  • Number of Unwinders: 2
  • Number of Knives: 10
  • Power required: 110kw
  • Cast iron sole plates
  • Delivery table
  • Control panel for the rewinder and backstands
  • Each group is connected by means of conical pulleys and belts controlled by motorized belt shifters

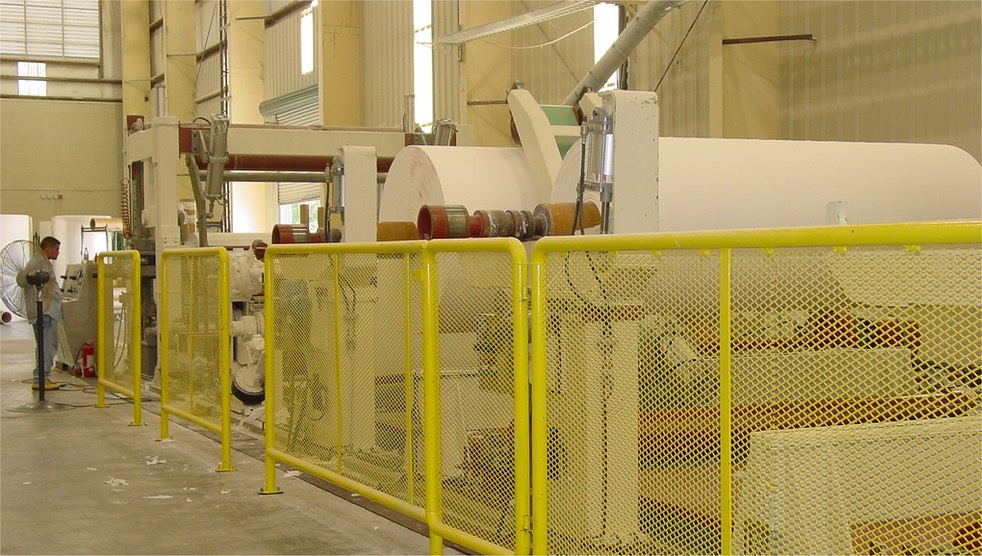

SM0758-03


Exclusions:

  • 110kw AC motor with feeding and control panel not included.
  • No flat belts and line shaft drive belts included.
  • Piping feeding the control panel inlet flange is not included.
  • Guards and protections are not included.
  • Calander frames and rolls
