TROMMEL SCREENS


TECNICAL SPECIFICATION:-

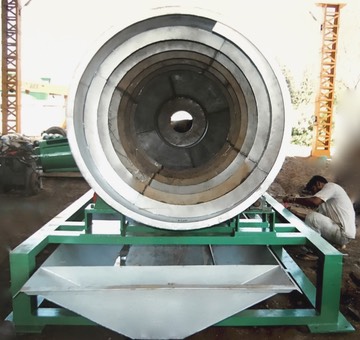

TROMMEL01 2

TYPICAL:

  •  The drum size will be 1,500 diameter X 3,000mm long.
  • The shell will be fabricated from S.S 304, 3mm thick plate.
  • The perforation will be 8 and 10 mm hole.
  • Drum inside plate will be 75 X 5mm spiral type fabricated with drum
  • 2 no’s M.S rings mounted on drum.
  • Drum will rotate on 4 rollers mounted on the base of drum,
  • 2 x rollers will be free and 2 x rollers will be fixed with a shaft ex a worm gearbox
  • The trommel will be driven through a worm Gearbox.
  • Trommel base will be in M.S Square box.
  • Complete drum will be covered with M.S 2mm thick plate.
  • A shower is also provided to clean the surface of trommel .
  • A Stainless steel tray is provided to collect the drain water.

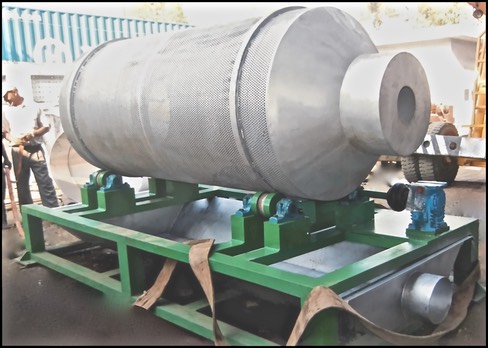

TROMMEL02 2
