VACUUM BOX

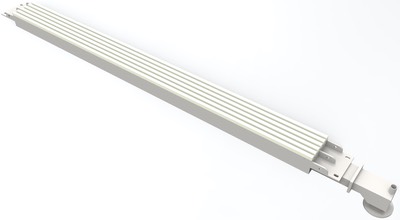

LOW VACUUM BOX

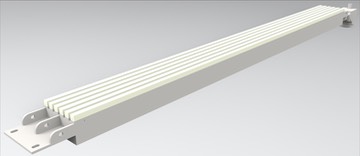

Low Vacuum Box 6 strip

Dewatering Elements

The correct placement of the dewatering elements is essential for a quality dewatering to reach the required percentage of the dryness behind the wire part. The wire part length depends on the PM performance and on types of paper produced there. The wire length is also determined by the number of dewatering elements . The Elements Plays an Major role in paper sheet forming and many other paper properties.

Pattern of Dewatering Element

1. FormingBoard 2. Dewateringfoil 3. Hydrofoil
4. LowVacuum

5. SuctionBox
6. MultiChamberHighVacuum

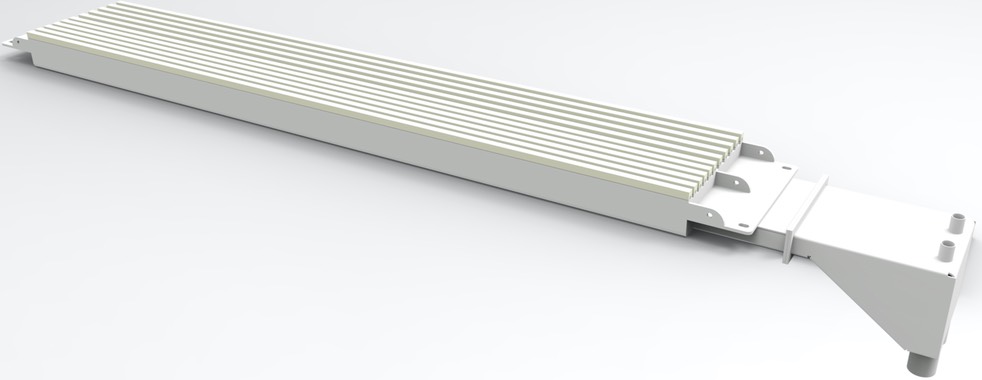

LOW VACUUM BOX 11strip-02

Low Vacuum Box 11 strip

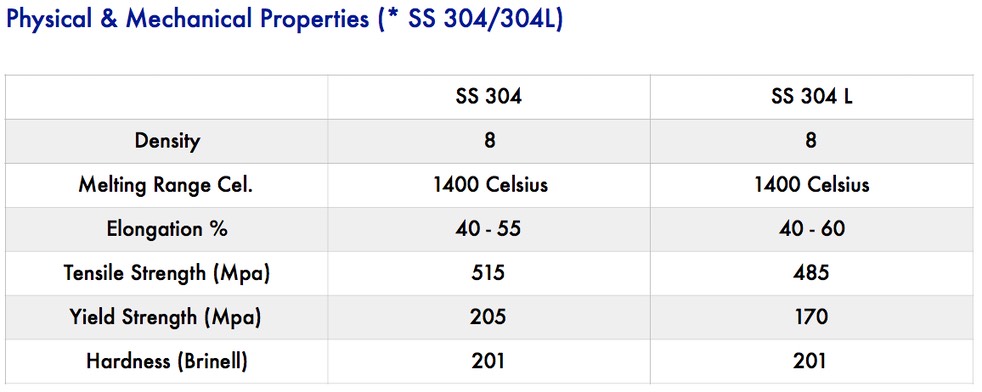

Pyshical&Mechanical SS304-304L
