SAXON MACHINERY - MODEL SMEX001
Fully Automatic Exercise Book Line (NEW)
TECHNICAL SPECIFICATION:
- 1) Product model type: SMEX001
- 2) Web width: 580 mm – 1,020 mm
- 3) Max. printing speed: 300 m/min
- 4) Repeat Range: 300 mm – 860 mm
- 5) Cutting Length: 300 mm – 860 mm
- 6) Counting & Collecting: 4 – 50 sheets
- 7) Max. Reel Paper Diameter: 1,500 mm
- 8) Sheet Weight: 45 gsm –150 gsm
- 9) Note Book Size Min.: 125 mm x 125 mm
- 10) Note Book Size Max.: 297 mm x 210 mm
- 11) Cover Paper Weight: 70 – 150 gsm
- 12) Append1x Weight(sheet): 40 – 150 gsm
- 13) Max Output Frequency Trimming x 45
- 14) Sheet Stitching Thickness: 10 mm
- 15) Total Power: 32 kw
- 16) Overal1 Dimensions(L x W x H): 21,000 x 2,500 mm x 400 mm
- 17) Machine Weight: 22 Tons
DESCRIPTION:
This machine utilises advanced technology such as microcomputer control , electro-optical tracking, gas-liquid interaction.
The human-machine interface is via touch screen and the flexo printing is accurate and environmentally friendly.
This production line is an ideal choice for the mass production of staple-binding notebooks, Exercise book, utilising a combination of the following sections :

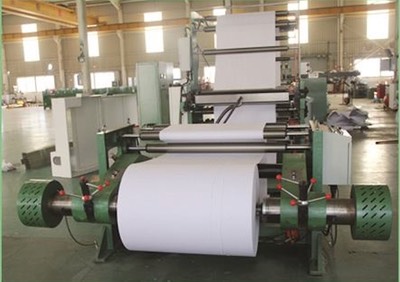

1. Single paper unwind reel,
2. High speed flexographic printing with - 2/2 ,
3. Cross cutting,
4. Overlapping,
5. Collecting,
6. One unit auto cover inserting,

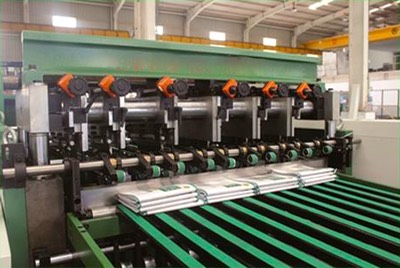

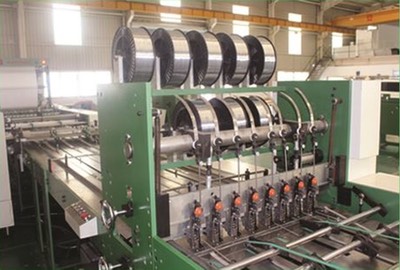

7. Stitching Unit,
8. Folding,
9. Spine pressing,
10. Strip cutting (Edge Trim),
11. Trimming and slitting,

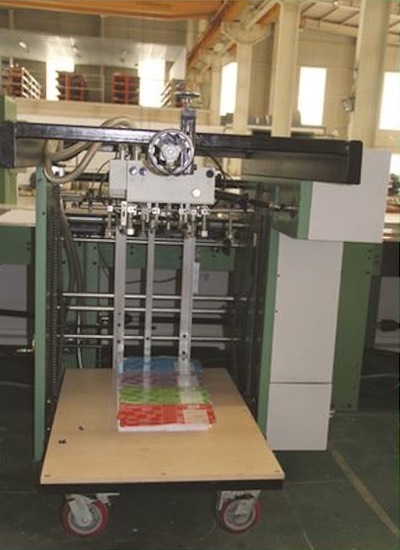

12. Counting of finished notebook production.
PRODUCTION FEATURES:
- Easy operation, accurate colour, long life,
- Uses motors with variable frequency speed control, saving electricity and allowing small running fluctuations,
- Uses special diagonal-tooth gear for accurate printing/size,
- Printing rolls dynamically balanced and static balance,
- Bearings: Brand NSK Bearings (Japan)
- Stitching head: Hohner (Germany)
- Knives:IKS Shanghai (Germany)
- Feeding straps: Hasabit (Switzerland)
